Subaru EX13 - Disassembly Procedures (Difference)

- 4 -
3-3 DISASSEMBLY PROCEDURES (DIFFERENCE)
Step Parts to remove Renarks and procedures Parts Fasteners
7
Fuel tank (1) Drain fuel from the tank.
(2) Remove the fuel tank mounting nuts and bolts from
the crankcase.
(3) Disconnect the fuel pipe from the tank outlet.
(See Fig. 3-1)
(4) Disconnect the fuel return line from the bottom of the
fuel tank. (See Fig. 3-1)
(5) Remove the fuel tank from the crankcase
10 mm spanner or box wrench
M6 nut : 2 pcs.
M6 × 25mm : 1 pc.
To throttle body
(Inlet fuel)
To throttle body
(Return)
FUEL TANK CP
FUEL PIPE
(FUEL INLET)
FUEL PIPE
(RETURN)
UNION
(FINE MESH FUEL FILTER)

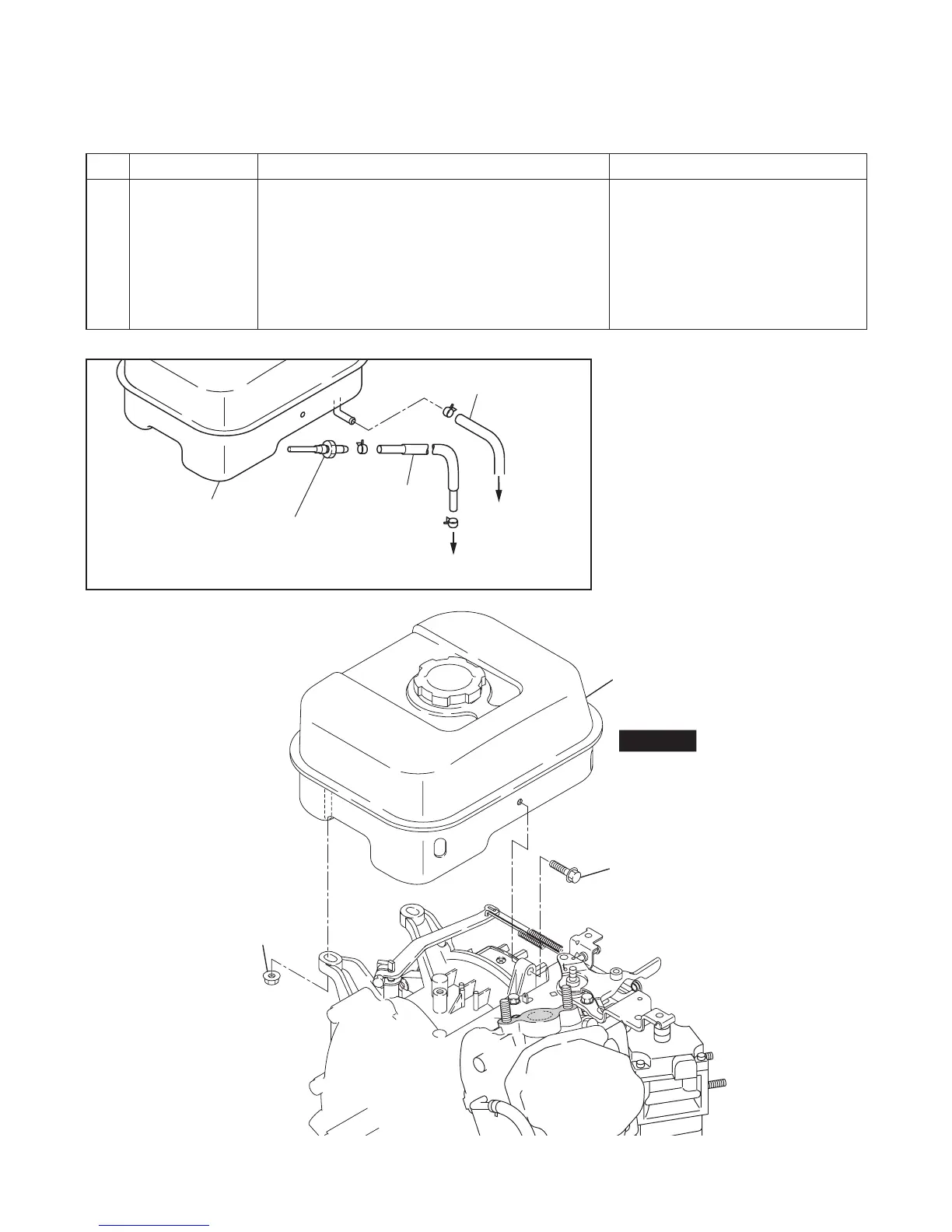

Fig. 3-1
STEP 7
FUEL TANK
M6 x 25 BOLT : 1 pc.
M6 NUT : 2 pcs.
