- 22 -

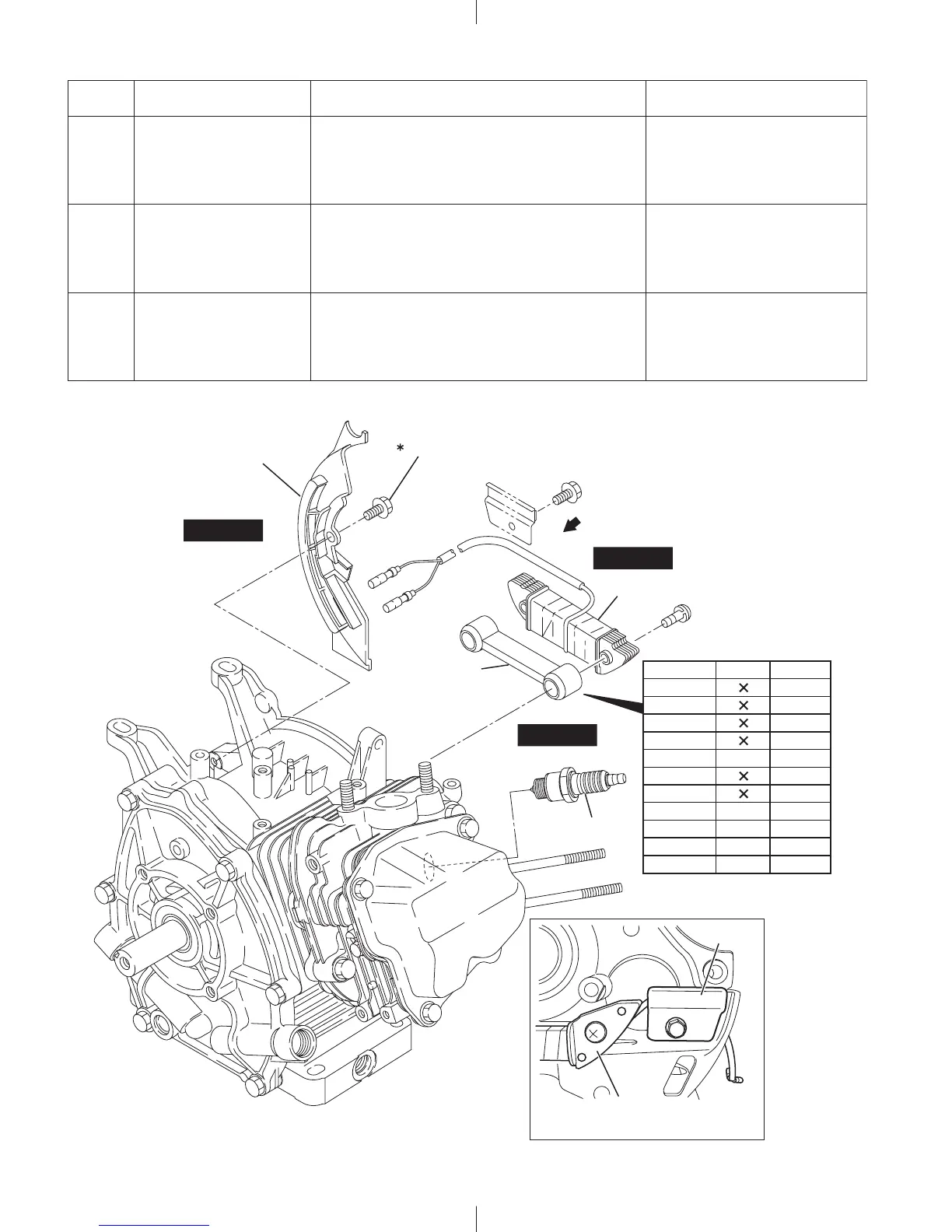

Fig.5-12
Step Parts to remove Remarks and procedures Fasteners
16
Baffle 1 (case) Remove the baffle 1 (case) M6 × 12mm : 1 pc.
(Models EX13, 17 and 21)
M8 × 12mm : 1 pc.
(Model EX27)
17
Charge coil (option) Remove the charge coil.
(For EX27, remove the wire clamp together)
box spanner
M6 × 20mm : 2 pcs.
+ screwdriver
18
Spark plug Remove the spark plug from the cylinder head. 21 mm plug wrench
SPARK PLUG
CLAMP
VIEW
A (EX27 only)
A
BAFFLE 1 (CASE)
BOLT
M6 x 40L
CHARGE COIL
CHARGE COIL
M6 x 12 FLANGE BOLT : 1 pc. (EX13, 17, 21)
M8 x 12 FLANGE BOLT : 1 pc. (EX27)
For the model without electric starter.
STEP 16
STEP 17
STEP 18
SPACER
M6 x 35L
15W
40W
15W
40W
200W
15W
40W
200W
15W
40W
200W
M6 x 35L
M6 x 40L
M6 x 25L
M6 x 35L
M6 x 40L
SPACER
M6 x 25L
M6 x 20L
M6 x 30L
M6 x 25L
NA
NA
NA
NA
NA
EX13
EX17
EX21
EX27
