- 25 -
TENSIONER
SPRING
(TENSIONER)
CHAIN
PIN (TENSIONER)
PIN (CAMSHAFT)
CAMSHAFT
CHAIN
STEP 22
STEP 22
M6 x 12 BOLT : 1 pc.
Bolt used to prevent the
pin (camshaft) from coming out

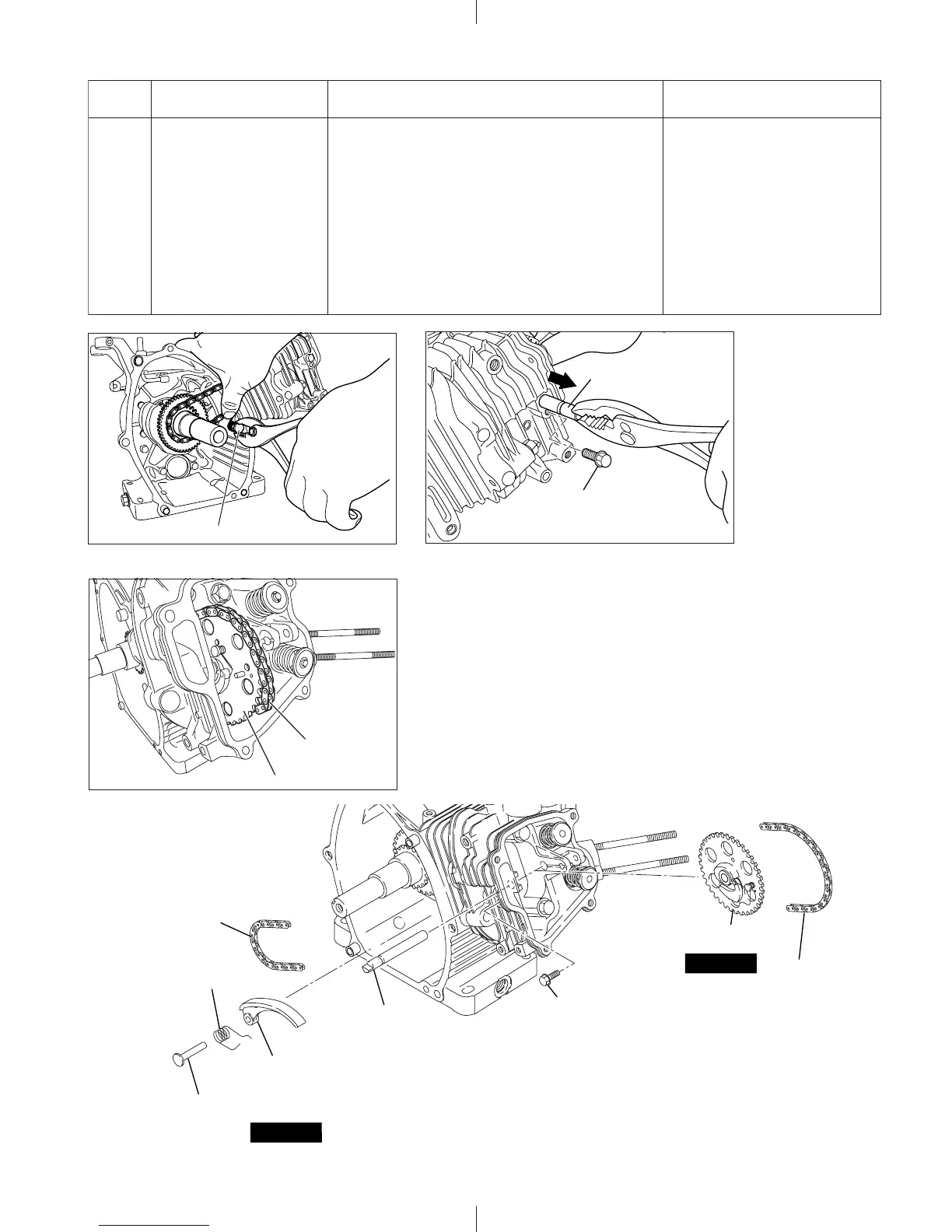

Fig. 5-17
Fig.5-19
Fig.5-18b
CAMSHAFT
CHAIN
Fig.5-18a
PIN (TENSIONER)
M6 x 12 BOLT : 1 pc.
Bolt used to prevent the
pin (camshaft) from coming out
PIN (CAMSHAFT)
Step Parts to remove Remarks and procedures Fasteners
22
Tensioner, Camshaft (1) Remove the tensioner. (See Fig. 5-18a)
※Do not lose the pin (tensioner).
(2) Remove the retaining bolt of pin (camshaft)
from the cylinder head. (See Fig. 5-18b)
(3) Remove the pin (camshaft), taking care not
to scratch the O-ring.
(4) Remove the chain from the camshaft
sprocket and then take out the camshaft.
(See Fig. 5-19)
(5) Remove the chain from the crankshaft.
M10 box spanner or spanner
M6 × 12mm : 1 pc.
