28
-

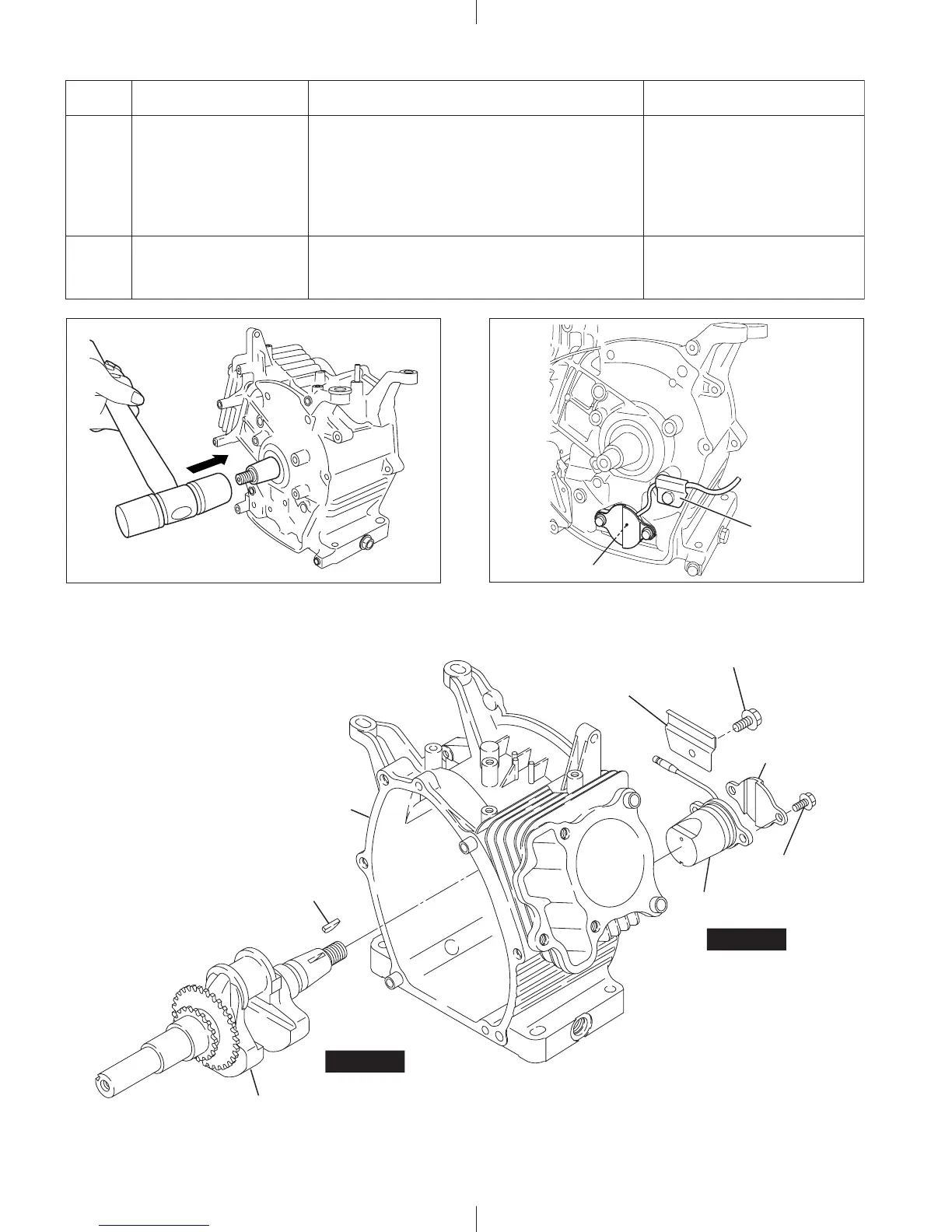

Step Parts to remove Remarks and procedures Fasteners
27
Crankshaft (1) Remove the woodruff key (for the flywheel
magneto).
(2) Remove the crankshaft from the crankcase
by tapping its magneto side end with a plastic
hammer, taking care not to damage the oil
seal.(SeeFig.5-24)
Plastic hammer
28
Oil sensor (option) (1) Remove the clamp. (See Fig. 5-25)
(2) Remove the oil sensor from the crankcase.
M6 × 12mm : 1 pc.
M6 × 16mm : 2 pcs.
Fig.5-23
Fig.5-24
CRANKCASE
WOODRUFF KEY
CRANKSHAFT
M6 x 16
BOLT : 2 pcs.
OIL
SENSOR
STEP 27
STEP 28
SHIELD PLATE
(For charge coil only)
M6 x 10 TAPPING
BOLT : 1 pc. (EX27 only)
CLAMP
Fig.5-25
OIL SENSOR
CLAMP
To Next Page
