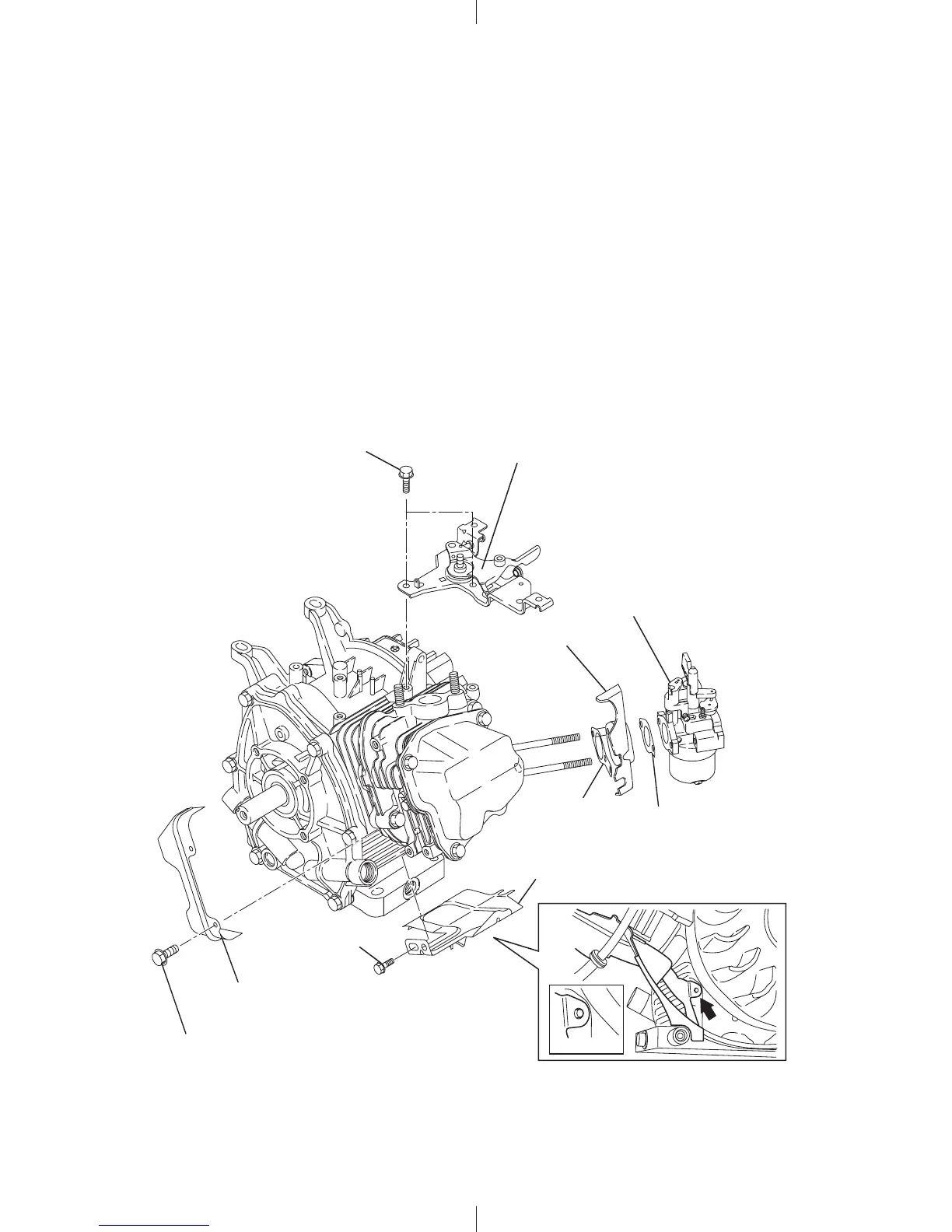

Fig. 5-54
M6 x 12 BOLT : 2 pcs.
M6 x 12 BOLT
: 1 pce.
SPEED CONTROL LEVER
and BRACKET
CARBURATOR
BAFFLE 2 (HEAD)
BAFFLE 3
(EX21 ONLY)
M5 TAPPING BOLT : 2 pcs.
INSULATOR
A
Detail A
GASKET
GASKET
(21) SPEED CONTROL LEVER, BRACKET AND BAFFLE
Mount the speed control lever and bracket, baffle 2 (head) and baffle 3 on the crankcase.
NOTE : The baffle 3 is used for Model EX21 only.
(22) CARBURETOR
(a) Replace the gasket of insulator with a new one and mount the insulator on the cylinder head intake
side.
(b) Mount the carburetor.
