- 44 -
Fig. 5-60

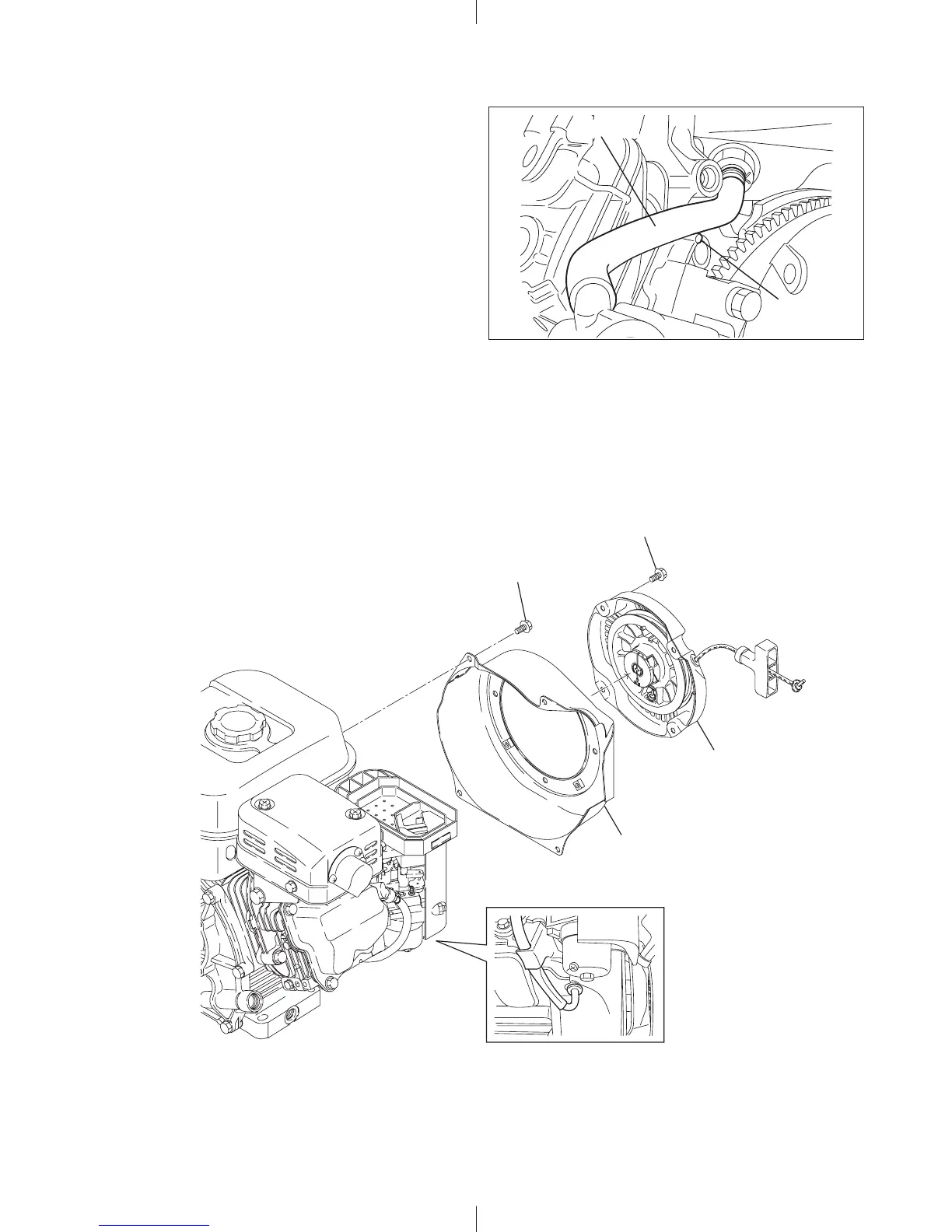

(27) BLOWER HOUSING AND RECOIL STARTER
(1) Mount the ignition coil cord on the crankcase by aligning it with the baffle 1 (case).
(2) Mount the blower housing on the crankcase.
M6
× 12 mm bolt : 4 pcs.
(3) Mount the recoil starter on the blower housing.
M6
× 8 mm bolt : 4 pcs.
M6 x 8 BOLT : 4 pcs.
M6 x 12 BOLT : 4 pcs.
RECOIL STARTER
BLOWER HOUSING
FUEL PIPE
BOSS
Fig. 5-59c
(3) Mount the fuel tank on the crankcase.
M6 nut : 2 pcs.
M6 ✕ 25 mm bolt : 1 pc.
(Models EX13, 17 and 21)
M8 ✕ 25 mm bolt : 2 pcs. (Model EX27)
