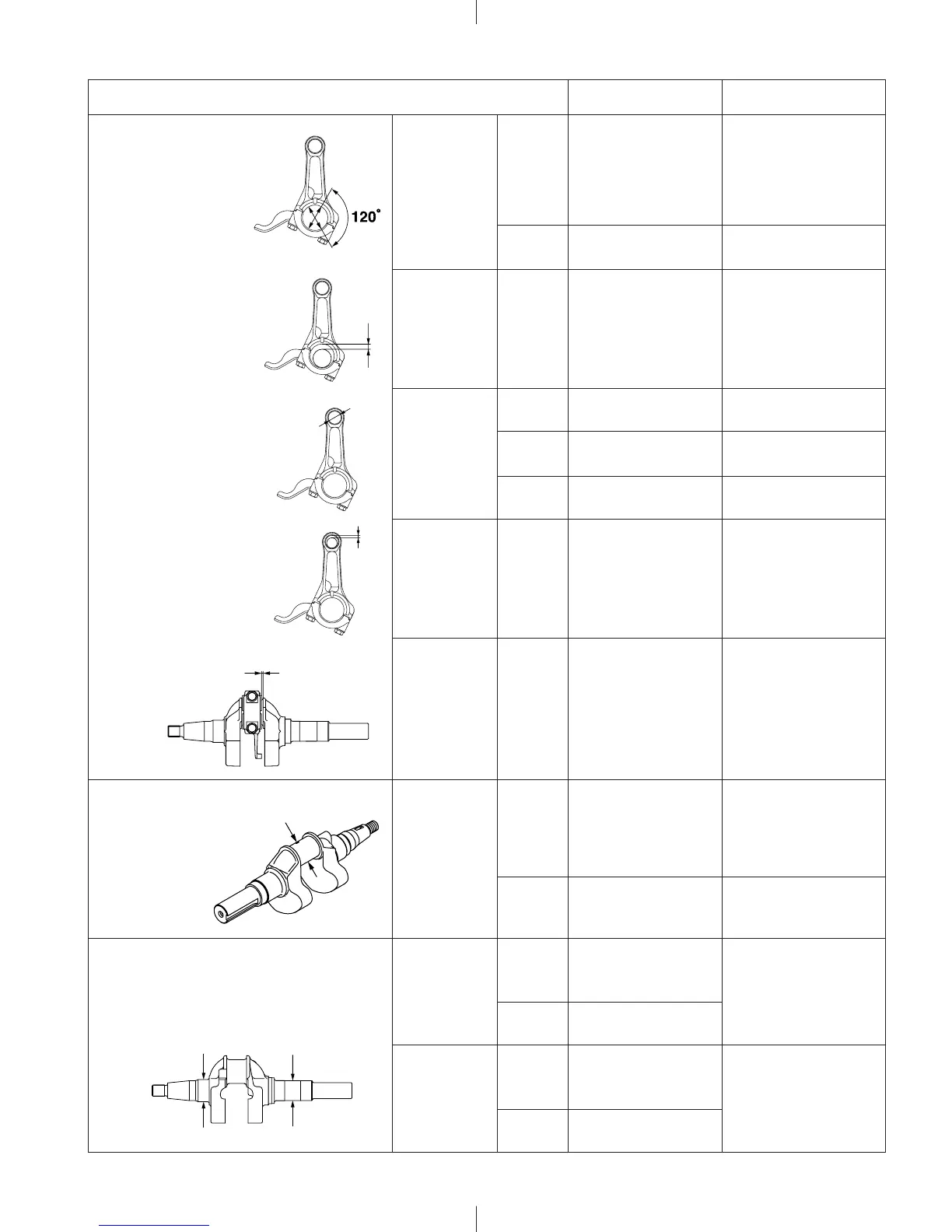

ITEM STD Limit
CONNECTING ROD
* Large end inner diameter
EX13
EX17
EX21
30.000 - 30.016
(1.1811 - 1.1817)
30.1
(1.1850)
EX27
34.500 - 34.516
(1.3386 - 1.3392)
34.1
(1.3425)
* Clearance between large
end and crank pin
EX13
EX17
EX21
EX27
0.020 - 0.049
(0.0008 - 0.0019)
0.2
(0.0078)
* Small end inner diameter
EX13
13.010 - 13.021
(0.5122 - 0.5126)
13.08
(0.5150)
EX17
EX21
16.010 - 16.021
(0.6303 - 0.6307)
16.08
(0.6331)
EX27
18.010 - 18.021
(0.7091 - 0.7095)
18.08
(0.7118)
* Clearance between small
end and piston pin
EX13
EX17
EX21
EX27
0.010 - 0.029
(0.0004 - 0.0011)
0.12
(0.0047)
* Large end side clearance
EX13
EX17
EX21
EX27
0.100 - 0.780
(0.0040 - 0.307)
1.0
(0.0394)
CRANKSHAFT
* Crank pin outer diameter
EX13
EX17
EX21
29.967 - 29.980
(1.1798 - 1.1803)
29.85
(1.1752)
EX27
34.467 - 34.480
(1.3570 - 1.3575)
34.35
(1.3524)
* Journal outer diameter
D1
EX13
EX17
EX21
27.988 - 27.997
(1.1019 - 1.1022)
EX27
29.988 - 29.997
(1.1806 - 1.1810)
D2
EX13
EX17
EX21
24.988 - 24.997
(0.9838 - 0.9841)
EX27
29.988 - 29.997
(1.1806 - 1.1810)

D1
D2
Unit: mm (in.)
