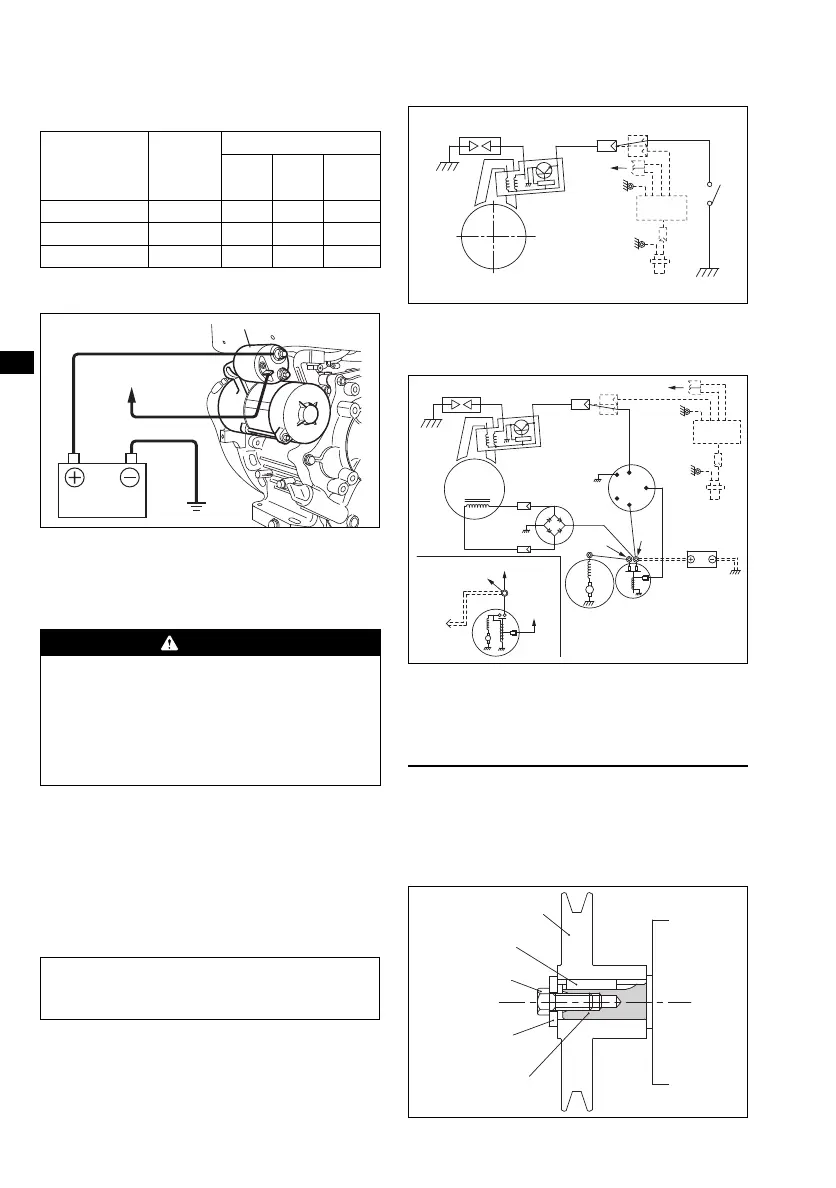

5.
BELT PULLEY INSTALLATION
ONTO KEYWAY-TYPE CRANKSHAFT
3. KEY SWITCH CABLE
If a remote key switch is used, select wires of proper gauge to
connect it and magnetic switch of the engine.
Cable length Cable dia.
Wire gauge
AWG
(BS)
BWG JIS
Less than 1.5m 1.5 mm 14 16 AV1.25
1.5 m to 3 m 1.9 mm 12 14 AV2
3 m to 5 m 2.4 mm 10 13 AV3
4. WIRING
BATTERY
To KEY SWITCH
(TERMINAL "ST")
CABLE
EARTH WIRE
MAGNETIC SWITCH
(1) Connect positive (+) terminal of the magnetic switch and
positive (+) terminal of the battery with battery cable.
CAUTION
Make sure the polarity of battery terminals.
Never connect the battery cable with the battery
negative (
-
) terminal.
When connecting the battery cable with the
battery negative (
-
) terminal, diode rectifi er
chips will be burned out or damaged in a
moment.
(2) Ground negative terminal of the battery to the engine body
or machine with ground wire.
(3) When installing the key switch on the machine, install with
its drain hole at the bottom.
NOTE
Tighten bolts and nuts on terminals securely so that they will
not be loosened by vibration.
When installing the belt pulley and/or clutch onto keyway-type
crankshaft (PTO shaft), proper and correct arrangements are
needed.
The following illustration shows the correct installation of the
applicable component parts.
Pulley
Bolt
Washer
PTO shaft
Key
5. WIRING DIAGRAM
(RECOIL STARTER MODELS)
Spark plug
Black
Stop switch
Ignition coil
Flywheel
To LE D
Lamp
Oil sensor
Oil sensor
control unit
WIRING DIAGRAM
(ELECTRIC STARTER MODELS)
To Key switch
(ST)
To Key switch (B)
To Diode rectifier
EX27
To Battery
LA108
LA408
Spark plug
Black
+M
-
M
ST
B
AC
LA106
LA406
LA306
Charge coil
Magneto
Electric starter
Magnetic switch
Key switch
To LED Lamp
Oil sensor
Oil sensor
control unit
Battery
Diode
rectifier
Ignition coil
Electric
starter
Optional hardware shown by dotted lines.
