18
-
FLYWHEEL
M6 x 25 BOLT and
WASHER : 2 pcs.
M6 x 8 BOLT : 1 pc.
CLAMP
COOLING BLOWER
M18 NUT : 1 pc.
WIRE : 1 pc.
IGNITION COIL
STARTING PULLEY
STEP 14
STEP 15
STEP 16

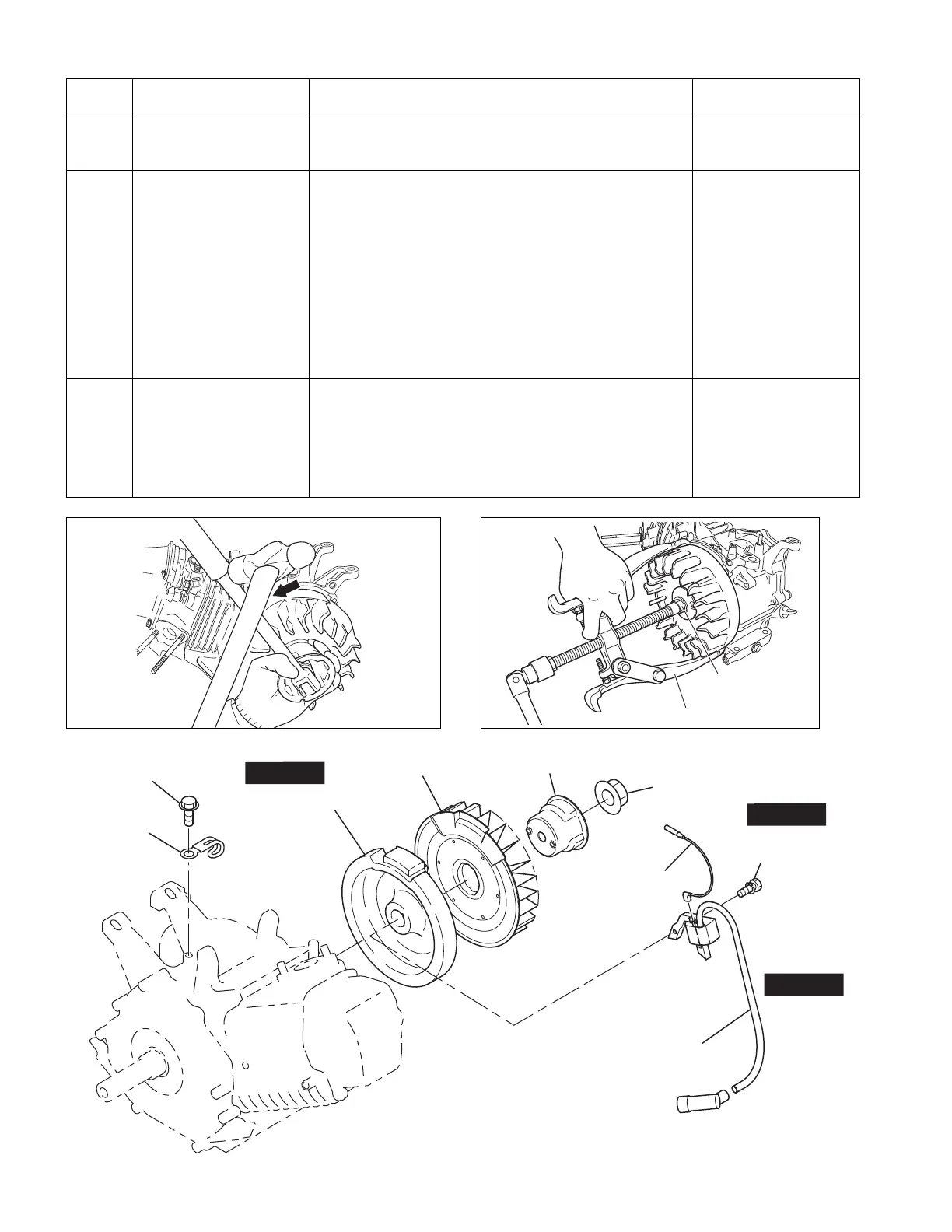

Fig.5-9
Step Parts to remove Remarks and procedures Fasteners
14
Ignition coil Remove the spark plug cap from the spark plug and
remove the ignition coil from the crankcase.
10 mm box spanner
M6 x 25 mm
：
2 pcs.
15
Starting pulley
Cooling Blower
Remove the starting pulley and cooling Blower from the
flywheel.Fit a box wrench or a socket wrench on the
flywheel nut and loosen the nut by knocking the wrench
sharply with a hammer. (See Fig. 5-10)
NOTE:
1. Do not insert a screwdriver or other object between the
flywheel blades which is a synthetic resin, otherwise the
risk of damaging the blades might be occurred.
2. Knock the wrench with a hammer in a counter clockwise
direction.
24 mm box spanner or
socket wrench
M18 nut
16
Flywheel Remove the flywheel from the crankshaft. Leave the nut
temporarily to prevent the flywheel from dropping out. Fit
the flywheel puller as shown in Figure 5-11 and remove
the flywheel from the crankshaft by rotating the bolt at the
center in a clockwise direction.
(Knock the center bolt with a hammer sometimes)
Flywheel puller
Fig.5-10 Fig.5-11
FLYWHEEL PULLER
ATTACH NUT
TEMPORARILY
To Next Page
