19
-
Step Parts to remove Remarks and procedures Fasteners
17
[MODEL WITH
ELECTRIC STARTER TYPE]
Control box,
Diode rectifier,
Magnetic switch
Electric starter (option)
[MODEL WITHOUT
ELECTRIC STARTER TYPE]
Baffle 1 (Case)
(1) Disconnect the grounding cable from battery.
(2) Disconnect the wire leading from the key
switch“ST” terminal to the magnetic switch.
(3) Disconnect the wire that connects the positive
terminal of the battery to the magnetic switch.
(4) Remove the electric starter.
Remove the Baffle 1 from the crankcase.
12 mm box spanner
M8 nuts
12 mm box spanner
M8 x 12 mm : 1 pc.

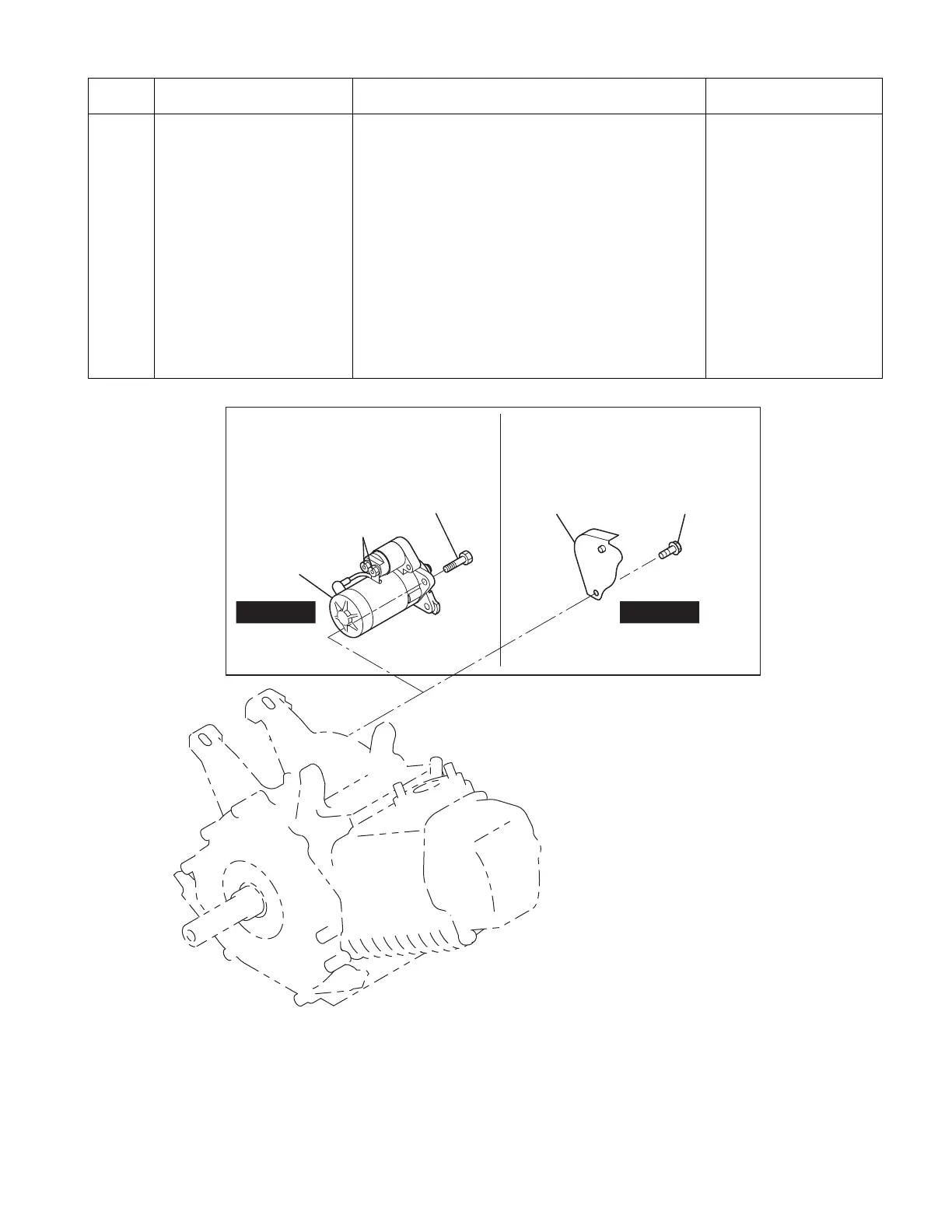

Fig.5-12
M8 x 12
BOLT : 1 pc.
M8 x 28
BOLT : 2 pcs.
M8 NUT
ELECTRIC
STARTER
BAFFLE 1
(CASE)
MODEL WITHOUT
ELECTRIC STARTER TYPE
MODEL WITH ELECTRIC
STARTER TYPE (OPTION)
STEP 17
STEP 17
