Subaru EX40 - Step 18: Wire clamp; Step 19: Spark plug

- 20 -

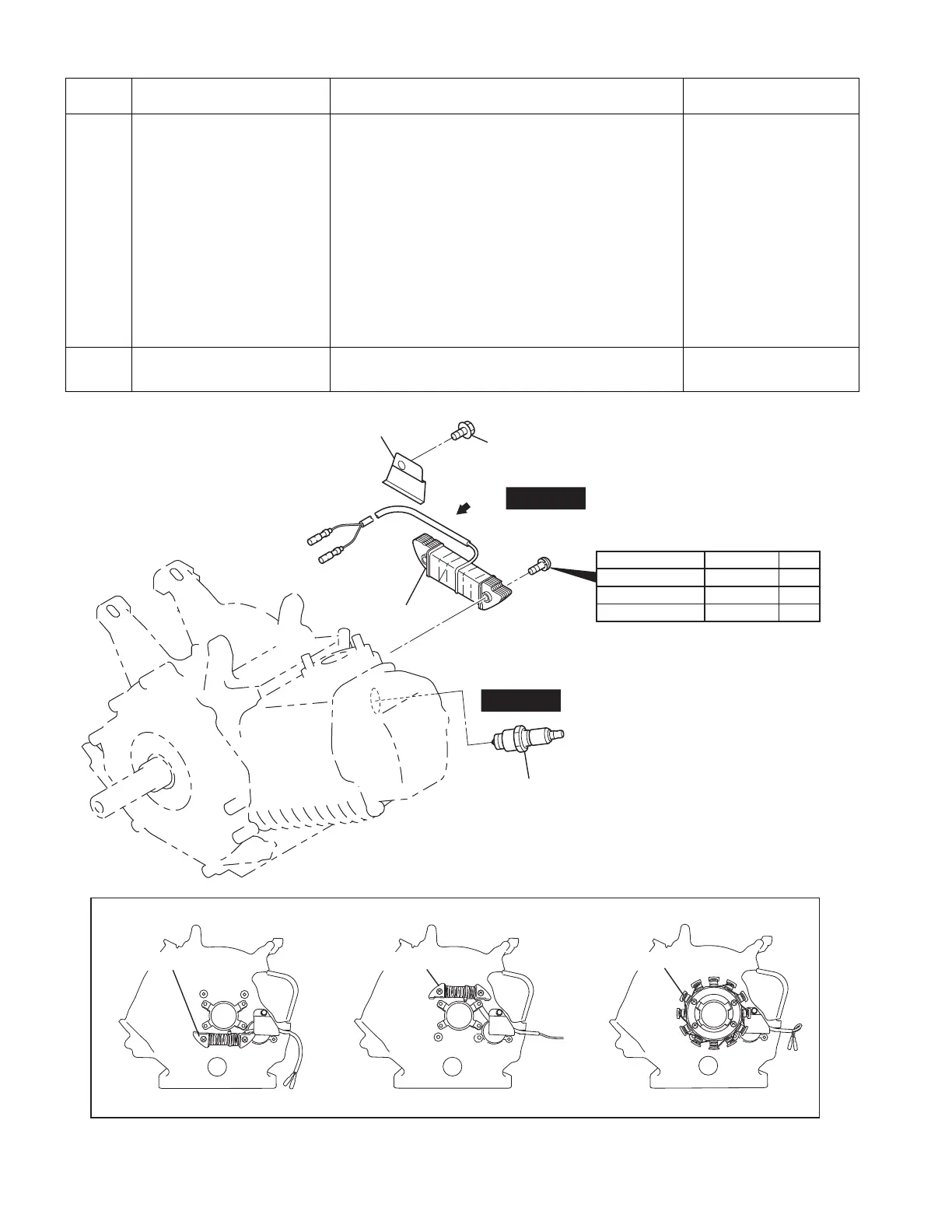

Fig.5-13
Step Parts to remove Remarks and procedures Fasteners
18
[MODEL WITH
CHARGE COIL TYPE]
Wire clamp
Charge coil
Disconnect the wire clamp.
NOTE:
Disconnect the wire clamp in this step, also an engine
which has both of the charge coil and the oil sensor.
However, please make sure to not damaged (cut off)
the oil sensor wire after disassembly procedure.
Remove the charge coil.
10 mm box spanner
M6 x 10 mm : 1 pc.
+ screwdriver
19
Spark plug Remove the spark plug from the cylinder head. 21 mm plug wrench
