Subaru EX40 - Step 23: Tensioner, Camshaft

- 23 -
TENSIONER
SPRING
(TENSIONER)
CHAIN
PIN
(TENSIONER)
PIN
(CAMSHAFT)
CAMSHAFT
M6 x 12 BOLT : 1 pc.
Bolt used to prevent the
pin (camshaft) from coming out
CHAIN
STEP 23
STEP 23

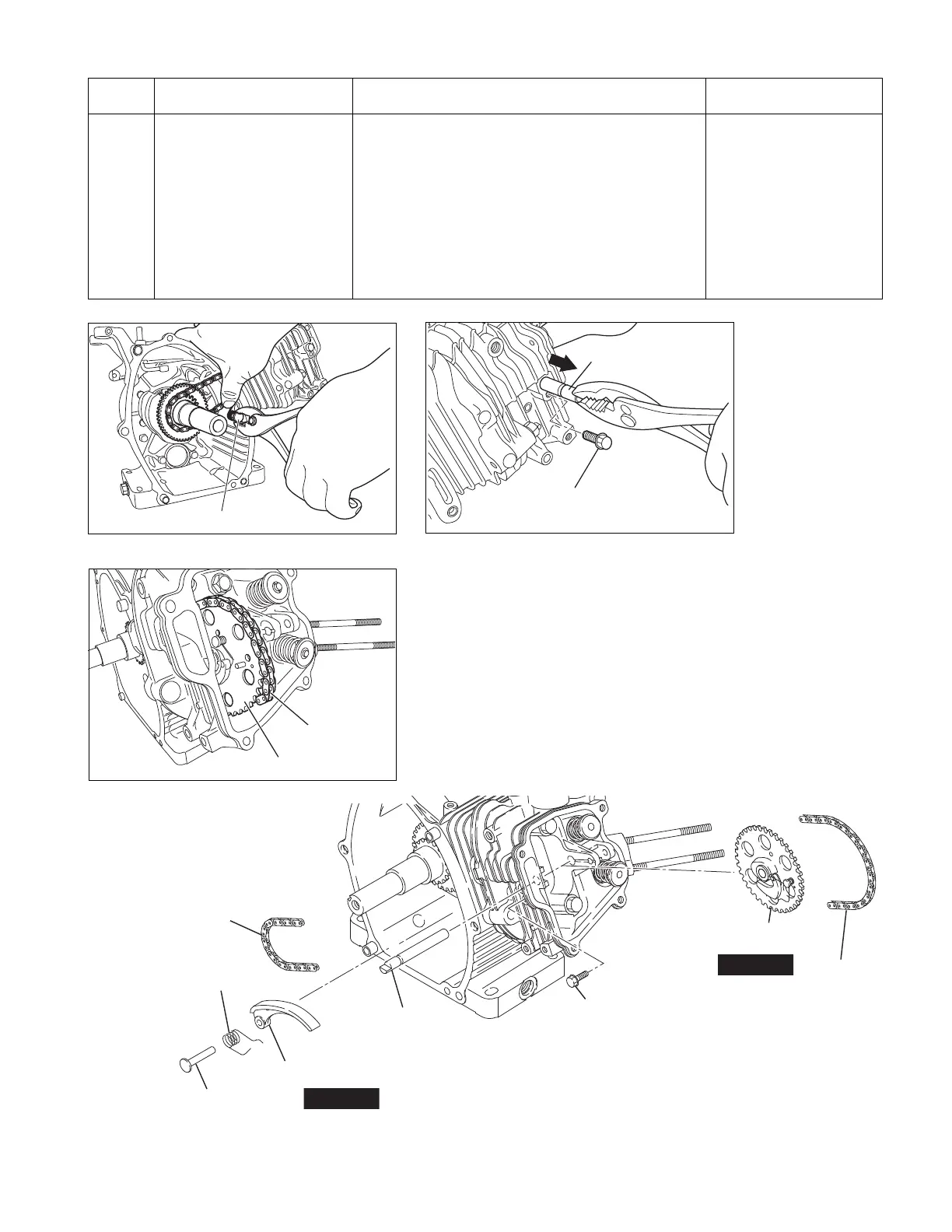

Fig.5-19
Step Parts to remove Remarks and procedures Fasteners
23
Tensioner, Camshaft (1) Remove the tensioner. (See Fig. 5-20)
Do not lose the pin (tensioner).
(2) Remove the retaining bolt of pin (camshaft) from
the cylinder head. (See Fig. 5-21)
(3) Remove the pin (camshaft), taking care not to
scratch the O-ring.
(4) Remove the chain from the camshaft sprocket and
then take out the camshaft. (See Fig. 5-22)
(5) Remove the chain from the crankshaft.
M10 box spanner or
spanner
M6 x 12mm : 1 pc.
Pliers
Fig.5-22
Fig.5-21
CHAIN
CAMSHAFT
Fig.5-20
PIN (TENSIONER)
PIN (CAMSHAFT)
M6 x 12 BOLT : 1 pc.
Bolt used to prevent the
pin (camshaft) from coming out
