Keys and doors
2-16
Note that in this mode, DOORS MUST BE MANUAL-
LY LOCKED.

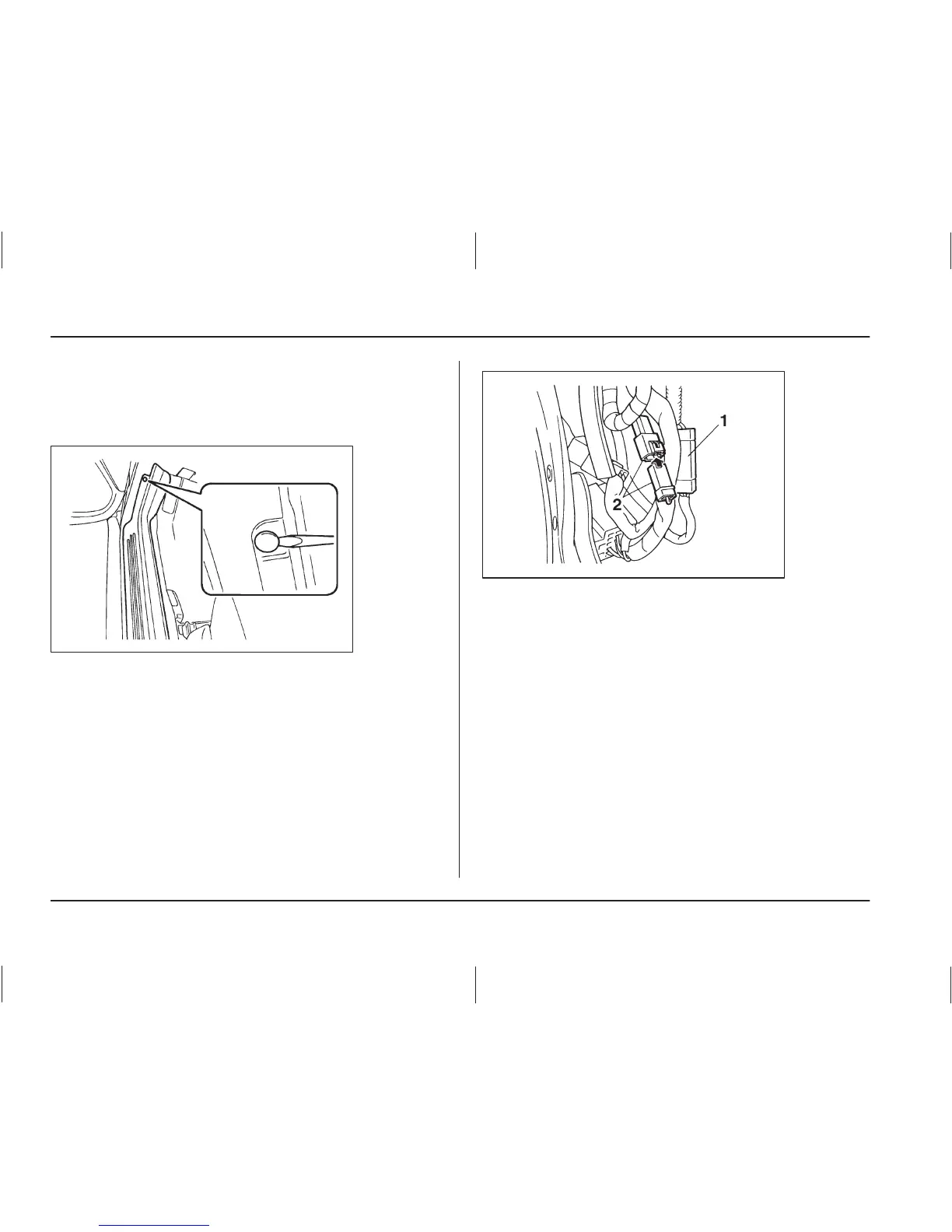

B To enter the passive mode
HB2036BA
1. Remove the side sill cover on the driver’s side.
1)Open the driver’s door.
2)Remove the clip by prying the edge with screw-
driver.
3)Remove the side sill cover by pulling it up.
HB2038BC
1) Connector for SRS airbag system (yel-
low)
2) Blue (1P)
2. Connect the blue (1 pole) connector.
3. Turn the ignition switch from the “LOCK” to the
“ON” position.
4. Install the side sill cover.
To place the system in active arming mode (remote
required for activation), disconnect the white con-
nector.
