IMPREZA(NA) A1830BE-A (ENGLISH)
Maintenance and service
11-62
OM-H0412

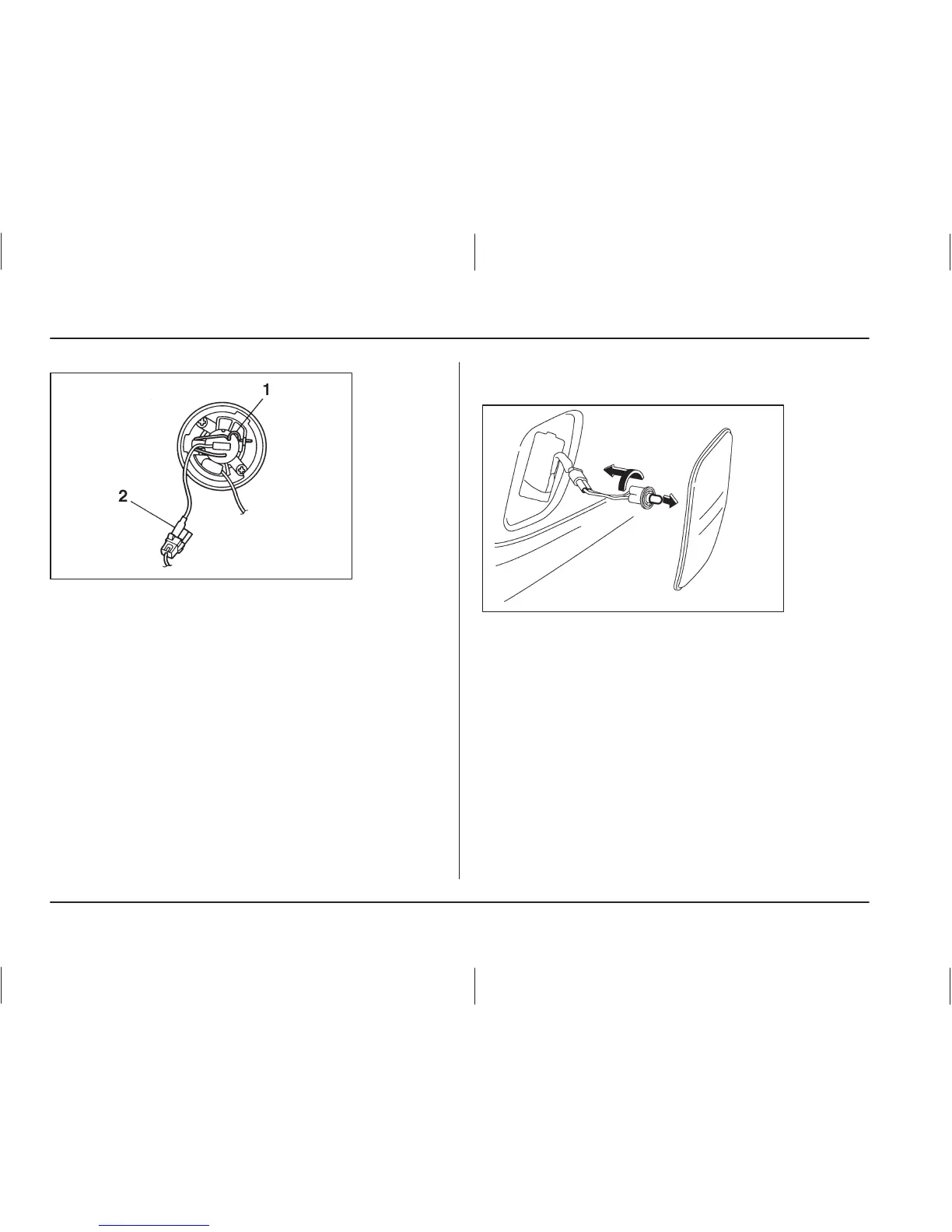

1) Spring
2) Connector
4. Disconnect the connector behind the case cap.
5. Release the retainer spring.
6. Replace the bulb with a new one. Then reconnect
the connectors and reinstall the removed parts in
the reverse order of removal.
J Front side marker light
HGB020BA
1. Remove the front side marker light assembly by
prying the edge of the lens with a regular screwdriv-
er. At this time, use a cloth to protect the body from
being damaged by the screwdriver.
2. Remove the bulb holder from the front side mark-
er light assembly by turning it counterclockwise.
3. Pull the bulb out of the socket. Install a new bulb.
4. Set the bulb holder into the front side marker light
assembly and turn it clockwise until it locks.
5. Reinstall the front side marker light assembly
onto the side of the front fender.
