IMPREZA(NA) A1830BE-A (ENGLISH)
Maintenance and service
11-52
HB8003CA

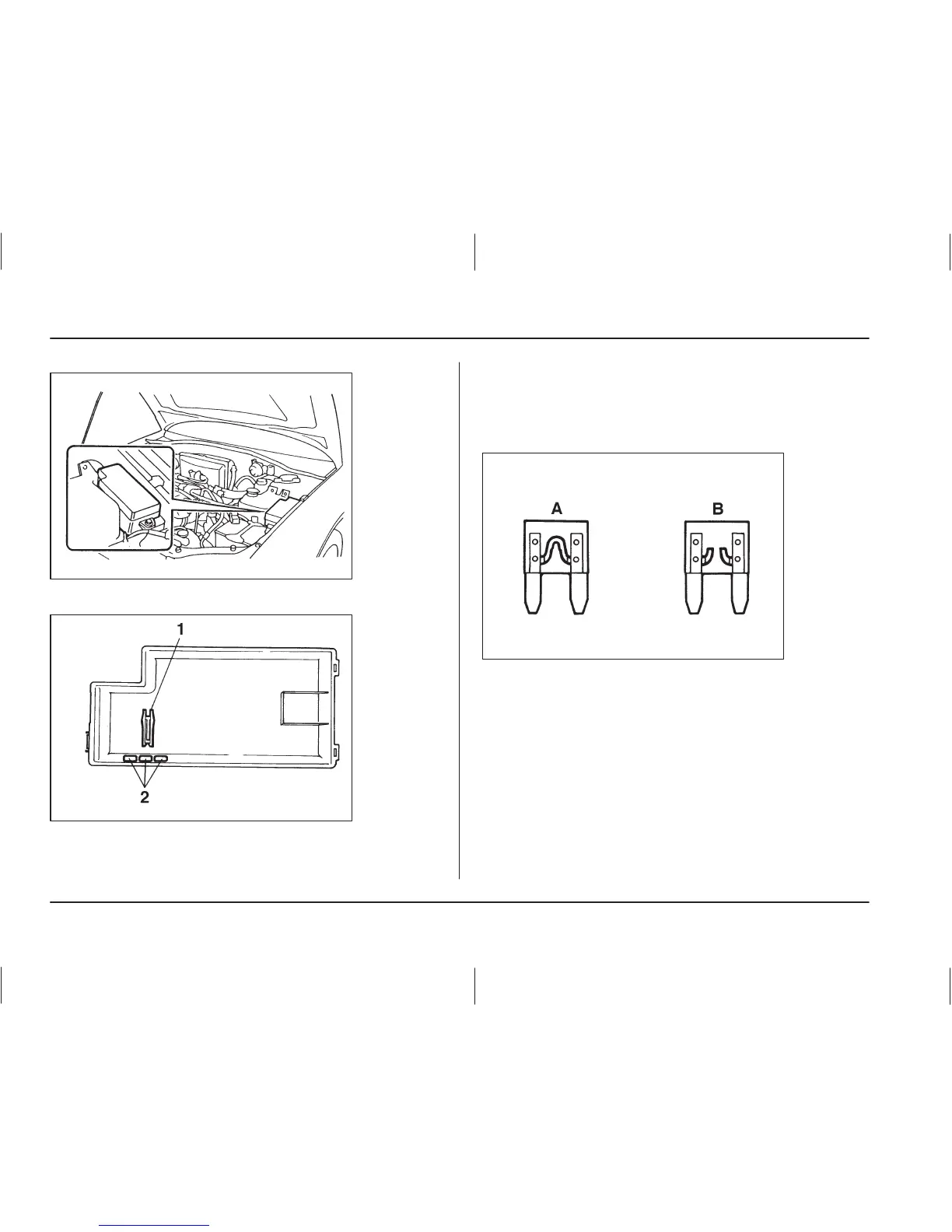

The other one is housed in the engine compartment.
HS0208
1) Fuse puller 2) Spare fuse
The fuse puller and spare fuses are stored in the
main fuse box cover in the engine compartment.
If any lights, accessories or other electrical controls
do not operate, inspect the corresponding fuse. If a
fuse has blown, replace it.
HS0204
A) Good B) Blown
1. Turn the ignition switch to the “LOCK” position
and turn off all electrical accessories.
2. Remove the cover.
3. Determine which fuse may be blown. The back
side of each fuse box cover and the “Fuse and cir-
cuits” section in chapter 12 in this manual show the
circuit for each fuse.
