Single Wire Connection
Connect your new SUBSONIC speakers to your audio system in one of
three ways:
single-wire, bi-amplified, tri-amplified or quad-amplified . Please follow
these hookup instructions carefully for single wire connection.
1. Use high-quality speaker cable with high-quality connectors.
To preamp / receiver
2. Turn off all audio system power before
making or changing connections.
3. Verify correct polarities (i.e., + to + and - to
-) when making connections. Incorrect polarity
results in unfocused sound and softer,
diminished bass.
4. A single-wire speaker cable is necessary for
each speaker when using the supplied solid-
brass jumpers. You will also need a small
length of quality speaker cable to join the top
and bottom terminal plates together.

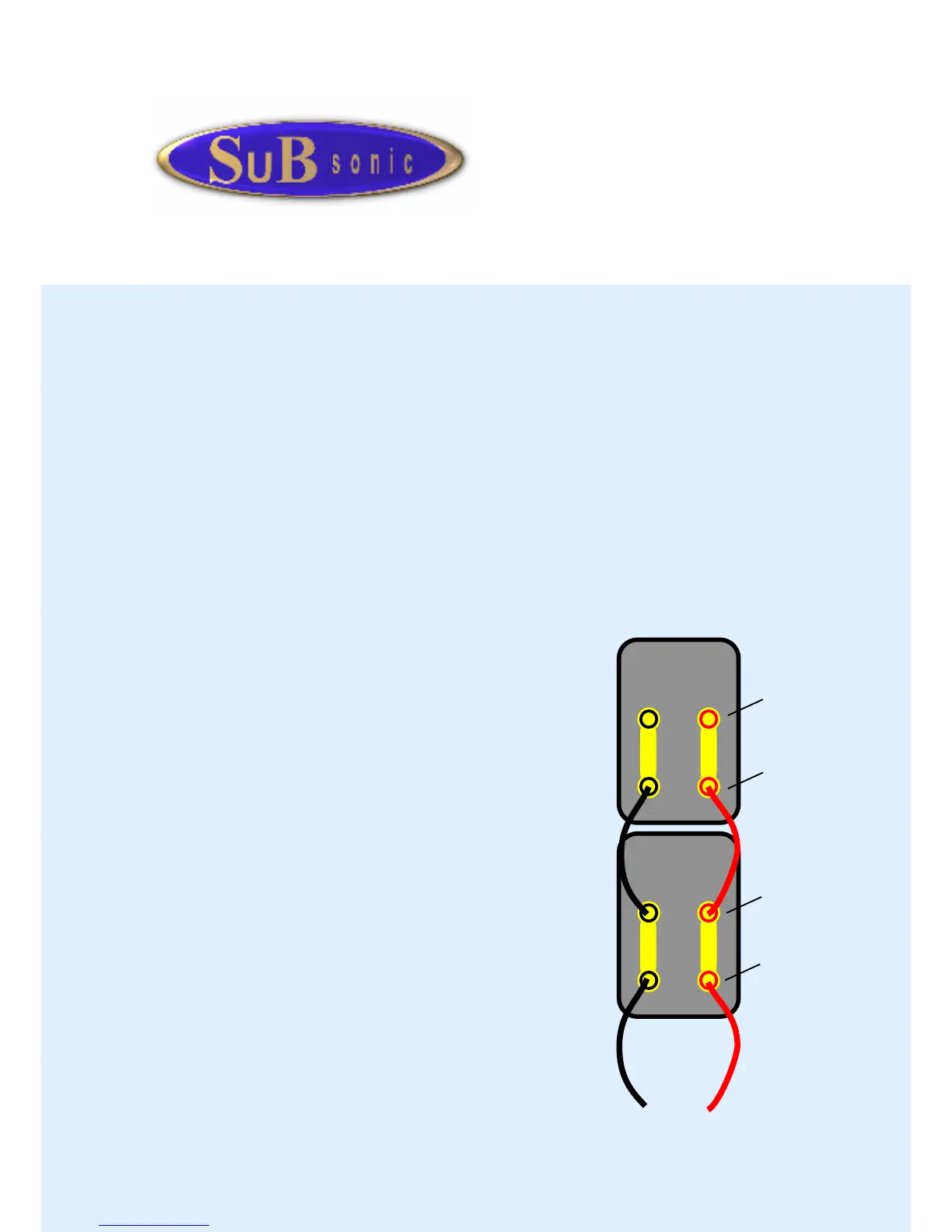

5. Connect the quality speaker cables as shown
in the diagram opposite.
Tweeter
Terminals
Midrange
Terminals
Mid-bass
Terminals
Bass
Terminals
PM1 MK2 USER MANUAL
To Next Page
