SubSonic PM1 MK2 - Bi, Tri or Quad Amplify Connection

Page 6
Please follow these hookup instructions carefully.
1. Bi-amplifying: Use separate amplifier channels to drive each set of terminal
plates.
2. Tri-amplifying: Remove the Terminal Plate links from the TOP terminal plate.
Use separate amplifiers to drive (i) Bass/Mid-bass, (ii) Midrange and (iii) Tweeter.
3. Quad-amplifying: Remove the Terminal Plate links from the TOP and BOTTOM
terminal plates. Use separate amplifiers to drive (i) Bass, (ii)Mid-bass, (iii)
Midrange and (iv) Tweeter.
CAUTION! Failure to remove the terminal jumpers when necessary may
damage some amplifiers.

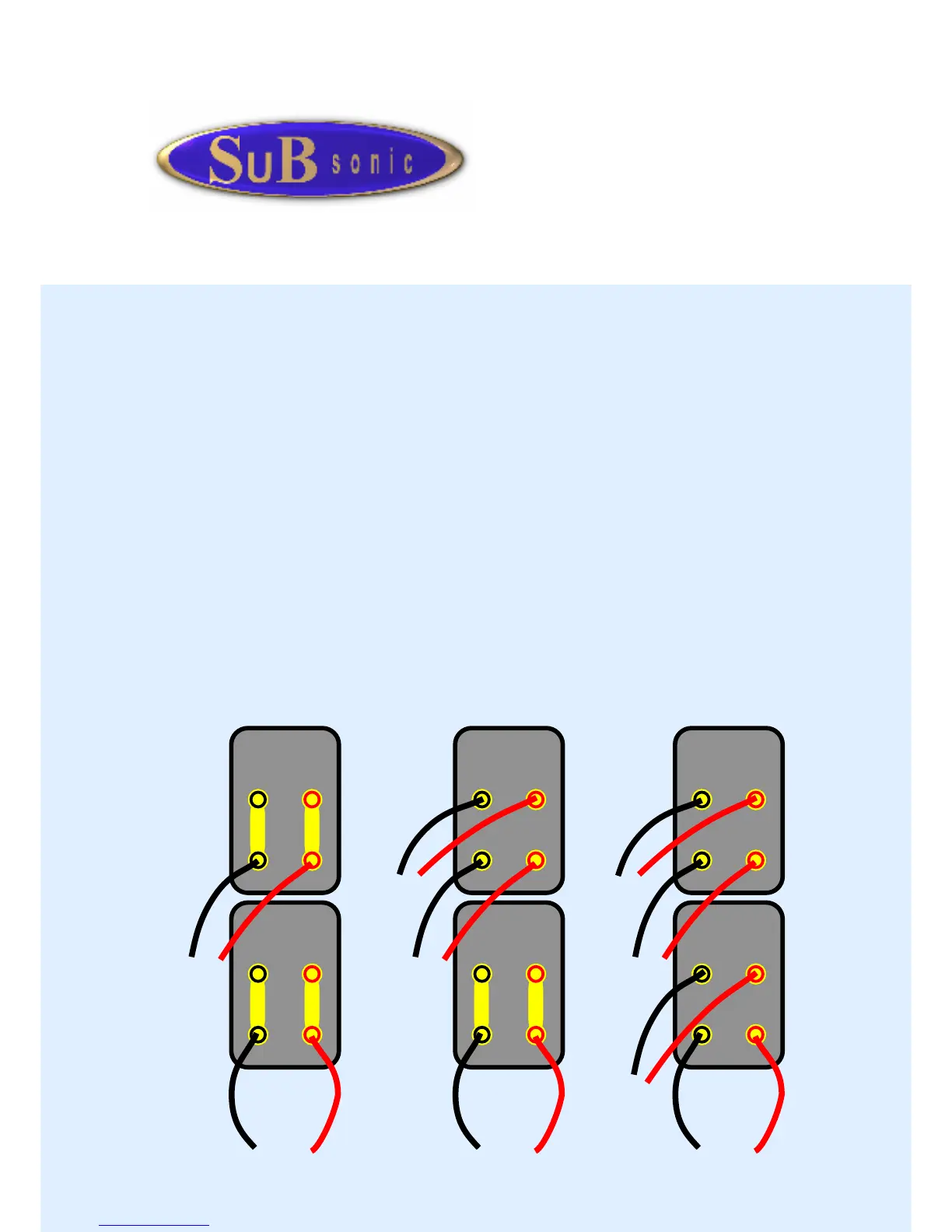

Bi, Tri or Quad Amplify Connection
To Power
Amp #2
To Power
Amp #1
To Power
Amp #2
To Power
Amp #1
To Power
Amp #3
To Power
Amp #3
To Power
Amp #1
To Power
Amp #4
To Power
Amp #2
Bi-Amp
Tri-Amp
Quad-Amp
PM1 MK2 USER MANUAL
