15 Suburban DynaLine Owner's Manual 10/2017 Rev.1

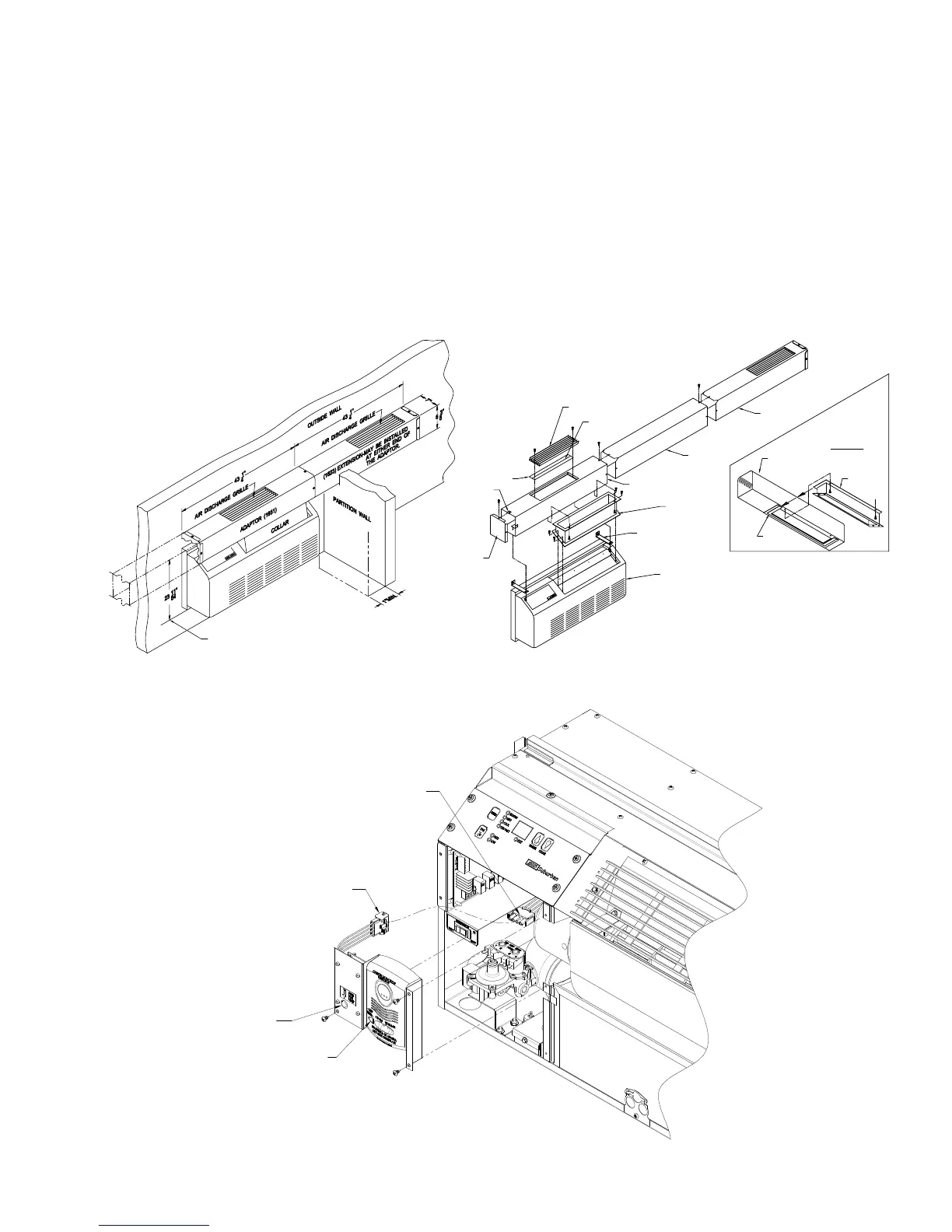

DL3 AIR DISCHARGE PACKAGE
STOCK NO. 1651 - ADAPTOR
STOCK NO. 1623 - EXTENSION
STOCK NO. 1624 - CONNECTOR
INTRODUCTION
This optional package allows for distribution of air into an adjacent zone requiring a controlled temperature. This assembly will discharge the
conditioned air to either the right or left depending upon which end the cap is placed. (See Figure 23.)
This package, when installed on a DL3-0712 and DL3-0912 series cannot be lengthened. Maximum length, not including adaptor, is 43 1/4". On
model DL3-1220 and DL3-1622, additional lengths may be added.
If additional length is required, connector assembly (No. 1624) may be used. No more than two (2) connectors may be used. Maximum length not
including the adaptor is 130" (10.8 Feet). NOTE: Installer must provide wall support brackets for the connector and extension. Not recommended
for use on models with built-in thermostats.
Figure 20
BOTTOM OF SLEEVE TO TOP OF
AIR DISCHARGE ADAPTOR
SCORE LINE
GRILLE
ADAPTOR (1651)
CAP
TINNERMAN
BAFFLE
CONNECTOR (1624)
EXTENSION (1623)
COLLAR
(SEE DETAIL VIEW)
BRACKET
DL3 DYNALINE INSTALLED IN WALL.
(SHOWN ONLY FOR THE PURPOSE OF
ILLUSTRATING AIR PACKAGE INSTALLATION).
ADAPTOR
COLLAR
CHANNEL
DETAIL VIEW
Figure 21
4 PIN FEMALE HOUSING
4 PIN MALE HOUSING
(ONLY FOR UNITS WITH
OPTIONAL CARBON
MONOXIDE DETECTOR)
RESET
BUTTON
TEST/HUSH
BUTTON
OPTIONAL CARBON MONOXIDE DETECTOR
Figure 22
