Suburban SW12D User Manual

10

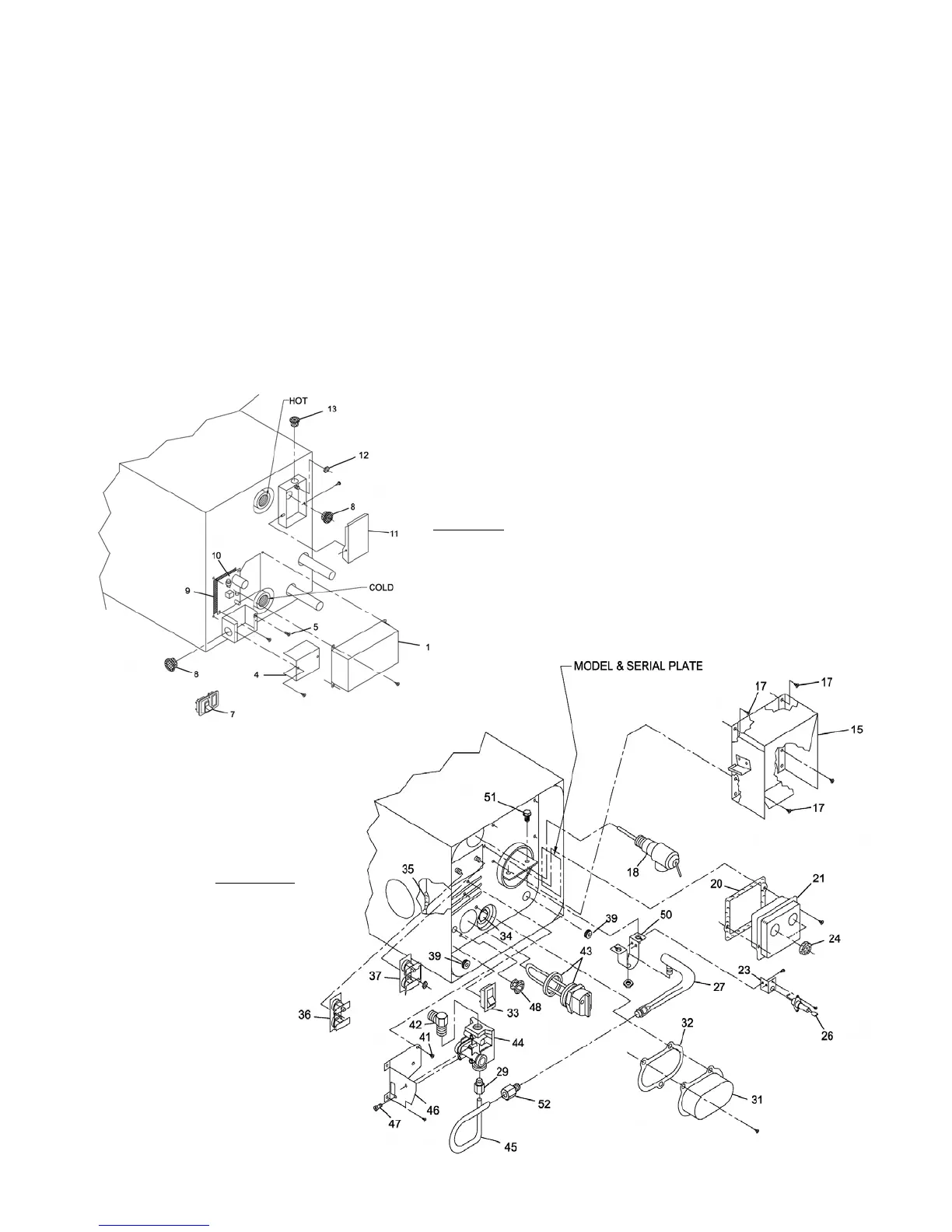

FRONT VIEW
SW12DEM
SW16DEM
Figure 16
PARTS LIST FOR MODEL SW12DEM, SW16DEM
(Figures 15 and 16)
Item Part Number
No. Description SW12DEM, SW16DEM
1 Cover Module Board ...................................... 090340
4 Cover, Junction Box (12 V.D.C.) ............................. 090344
5 Screw 10-32 x 3/8 (Green) ................................. 121702
7 Switch, Lamp and Plate Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . 232589
8 Bushing, Snap 7/8" ....................................... 230218
9 Insulator, Module Board ................................... 070807
10 Module Board ........................................... 520814
11 Cover, Junction Box (120 V.A.C.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 090464
12 Nut 10-24 Keps (Green) ................................... 121576
13 Bushing ................................................ 070486
15 Flue Collector Back Assembly Complete . . . . . . . . . . . . . . . . . . . . . . 101777
17 Screw 10 x 1/4 (3 Required) ................................ 121577
18 Valve, Pressure Relief..................................... 161157
20 Gasket, Thermostat Cover ................................. 070987
21 Cover, Thermostat/Hi Limit ................................. 090562
23 Bracket, Electrode Mounting ................................ 063187
24 Grommet (2 Required) .................................... 070874
26 Electrode............................................... 232258
Item Part Number
No. Description SW12DEM, SW16DEM
27 Burner Assembly with orifice.................................. 010843
29 1/4 Loxit Nut (Manifold to Valve) ............................... 171463
31 Cover, Element ............................................ 090445
32 Gasket, Element Cover ...................................... 070988
33 Switch, Electric Element ..................................... 232362
34 Anode ................................................... 232767
35 Grommet, Gas Inlet ......................................... 070989
36 Switch Assembly, 120 V.A.C. T-Stat/Hi-Limit . . . . . . . . . . . . . . . . . . . . . 232306
37 Switch Assembly, 12 V.D.C. T-Stat/Hi-Limit . . . . . . . . . . . . . . . . . . . . . . 232282
39 Grommet ................................................. 071246
41 Screw 10 x 1/4 (2 Required) .................................. 121577
42 Gas Fitting................................................ 170374
43 Electric Element with Gasket.................................. 520900
44 Valve, Gas (LP)............................................ 161109
45 Manifold, Outlet............................................ 171420
46 Valve Mounting Bracket ..................................... 063243
47 Screw 8-32 x 3/8 Hex HD (2 Required) . . . . . . . . . . . . . . . . . . . . . . . . . . 121958
48 Bushing, Snap 1/2" ......................................... 070270
50 Burner Bracket ............................................ 063444
51 Screw 8mm - 4.0 x 1/2 Hex Washer Head (2 Required) . . . . . . . . . . . . . 121943
52 1/4 Loxit Nut (Manifold to Burner) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171463
53 Electrode Wire(Not Shown) .................................. 232791
REAR VIEW
SW12DEM
SW16DEM
Figure 15
