Installation Information
Model UC-15I (Undercounter Ice Machine)
2-12
#7012423 - Revision B - May, 2011

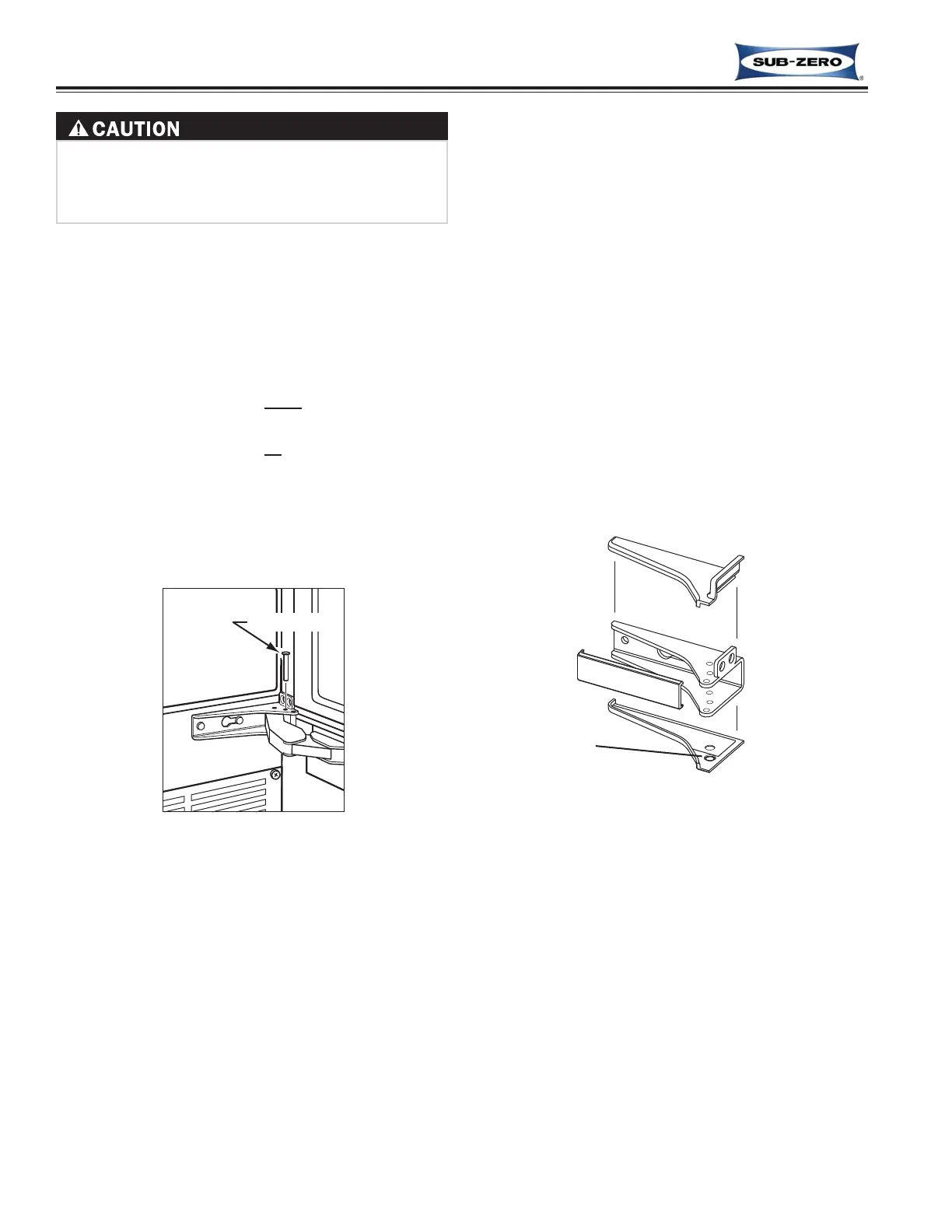

90-Degree Door Stop Installation
Certain installations may require the door to stop at 90-
degree instead of the full 115-degrees. A door stop pin
is supplied with the unit. To install the 90-degree door
stop pin (Refer to illustration below)l:
1. Open door to approximately 80 degrees.
2. Insert 90-degree stop pin down
through holes in
bottom hinge bracket.
3. Insert 90-degree stop pin up through holes in top
hinge bracket.
NOTE: The pins must be inserted until their heads
makes contact with the hinge brackets.
4. Check for proper door operation.
Hinge Cover Installation
NOTES:
• Do NOT Install the hinge covers until after installation
of the ice machine is complete.
• The 90-degree door stop must be installed prior to
installing the hinge covers.
• If the 90-degree stop pins are installed, it will be nec-
essary to remove the knock-outs from the hinge cover
opposite the head of the pin.
• Hinges must be free of dirt and grease before
attempting to install the hinge covers.
1. Remove backing paper from adhesive pads of
upper and lower hinge covers, then adhere covers
to top and bottom of each hinge bracket as shown
below.
2. The center hinge covers are magnetic. Install them
to center of each hinge bracket as shown illustra-
tion below.
Hinge Cover Installation
