AIRFLOW / EVAPORATOR FAN-BLADE SPACING
7/8" ± 1/16"
(2.22 cm ± .16 cm)
CLAMP FORWARD
(UPPER FAN BLADE)
7/8" ± 1/16"
(2.22 cm ± .16 cm)
(LOWER FAN BLADE)
CLAMP UP

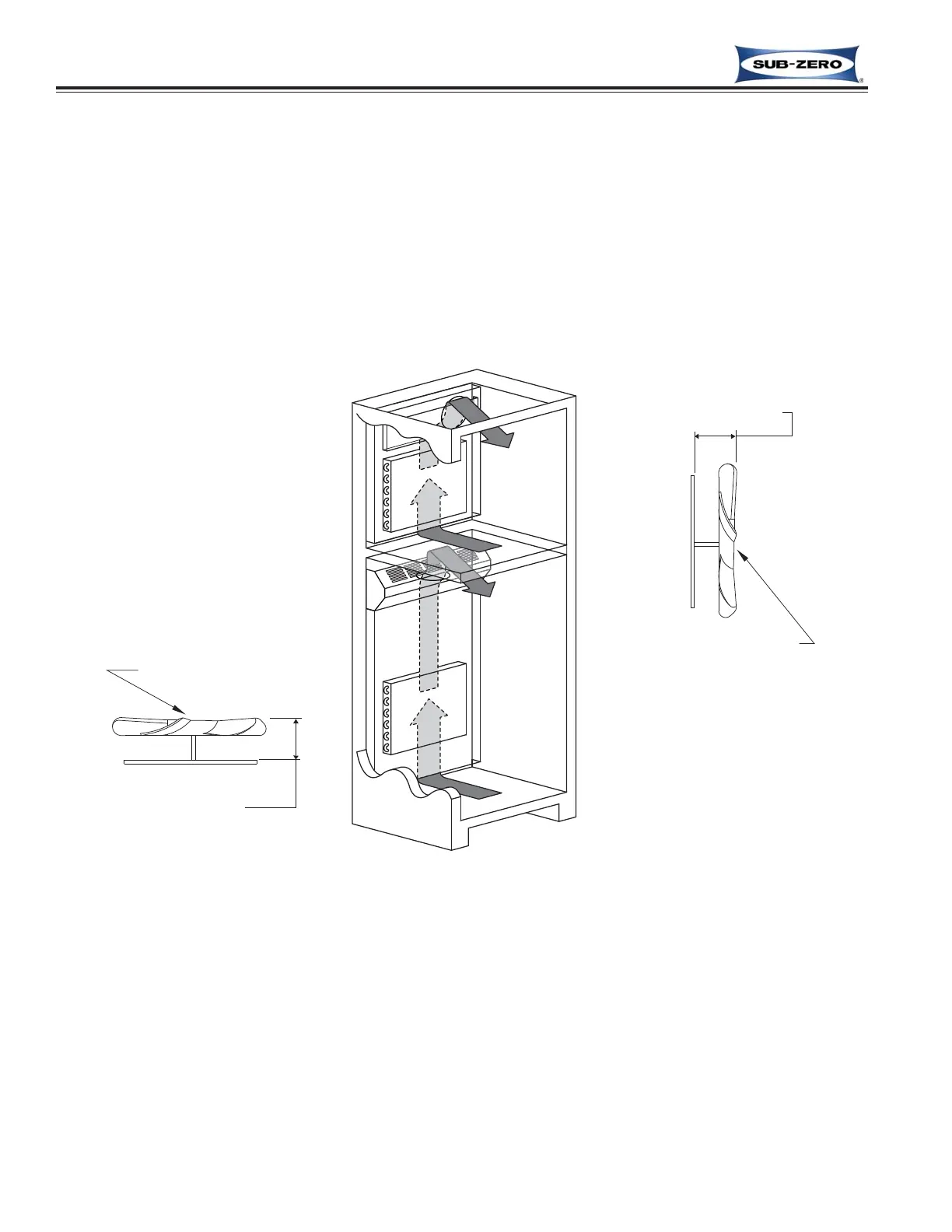

Figure 5-4. Model ICBWS-30 Airflow and Fan Blade Spacing
