3-10
#7013455 - Revision A - April, 2009
Electronic Control System
International W
International W
ine Storage
ine Storage
(ICBWS)
(ICBWS)
Series
Series
Display Average Compartment Temperatures
The temperature signals from the thermistor in each compartment is monitored by the microprocessor and shown in
the control panel LED display windows. The cabinet compartment icon closest to the appropriate display window
indicates which compartment (upper or lower) the temperature is associated with. Though compartment air temper-
ature fluctuates during normal ON and OFF cycles of the cooling system, the “average”, or “product” temperature is
shown in the LED display windows (See Figure 3-16 and 3-16A).
NOTES:
• The temperature range in a wine storage compartment is 38°F (3°C) to 65°F (18°C).
• If a compartment temperature should ever exceed either the high offset or low offset (for example: when a door is
left open), the temperature displayed at the control panel will change by no more than one degree per minute.

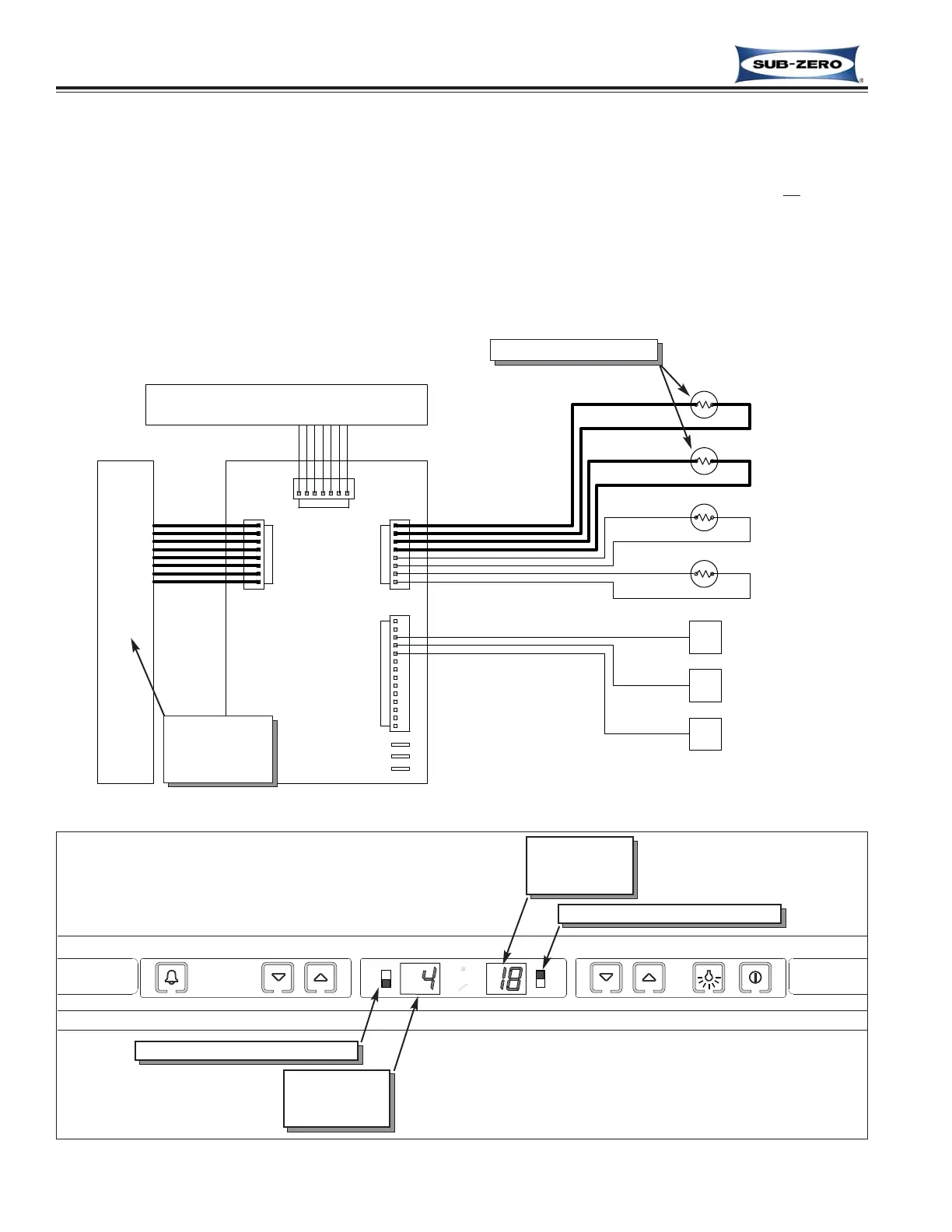

Figure 3-16A. Temperature Display (Shown in Fahrenheit Units of Measure)
Upper
Compartment
Temp Reading
Lower
Compartment
Temp Reading
Cabinet Upper Compartment Icon
Figure 3-16. Compartment Temperature Signal Detected; Average Temperature Displayed
Temperatures Detected
Average
Temperatures
Displayed
Cabinet Lower Compartment Icon
To Next Page
