Nomal braking action
Fast braking action

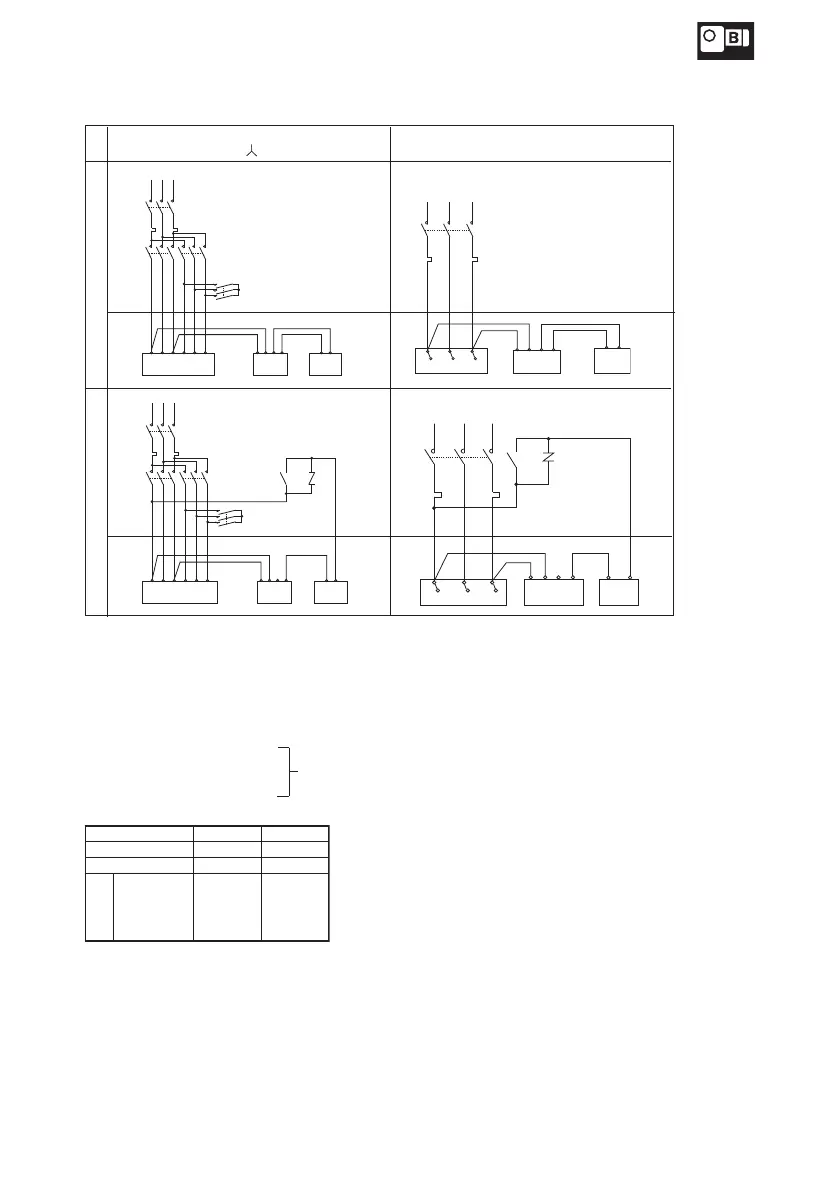

Fig.30-b For operating in one directions (In a case of six lead wires)
Brake type : FB-15B1
Star (Wye)-Delta
―△ Connection
Brake type : FB-15B1
Direct Starting
U1
MCM
OLR
V1 W1 V2 W2 U2
MC△
1234
MN
MC
Y
RS
T
Rectifier BrakeMotor
OLR
U1
V1 W1
1234
MN
V2
W2
U2
TR
S
Rectifier BrakeMotor
U1
MCM
MCM
VR
OLR
V1 W1 V2 W2 U2
MC△
1234
MN
MC
Y
RS
T
Rectifier BrakeMotor
R
S
T
VR
OLR
MC
14
23
MN
U1
V1
W1
V2
W2
U2
Rectifier BrakeMotor
●
Use fast braking action for lifting devices or for better stopping accuracy.
●
DC braking capacity (for DC coil loading) exceeding 5 times the braking current shown on the name plate is recommended
for the fast braking action.
・Refer to page 6 table 1-2 for brake type.
・This drawing shows for a motor based on standard specification for domestic market. Motor
based on overseas standard shall be referred to us.
・Refer to connection diagram on the motor when sharing power supply.
Control panelTerminal box Control panelTerminal box
Control panelTerminal box Control panelTerminal box
MC : Electromagnetic contactor
OLR : Overload relay or thermal relay
VR : Varistor (Protector element)
These should be furnished
by the customer.
Varistor (VR) Capacity
Input power
AC200V–230V AC380V–460V
Rated voltage of varistor AC260V–300V AC510V
Voltage of varistor
430V–470V 820V
Rated power of varistor
FB-15B1 1.0Watt or more 1.0Watt or more
Varistor is optionally available at Sumitomo.
6. Wiring
