Use fast braking action for lifting devices or
for better stopping accuracy.
DC braking capacity (for DC coil loading)
exceeding 5 times the braking current shown
on the name plate is recommended for the
fast braking action.
6–6) Motor with brake Connection

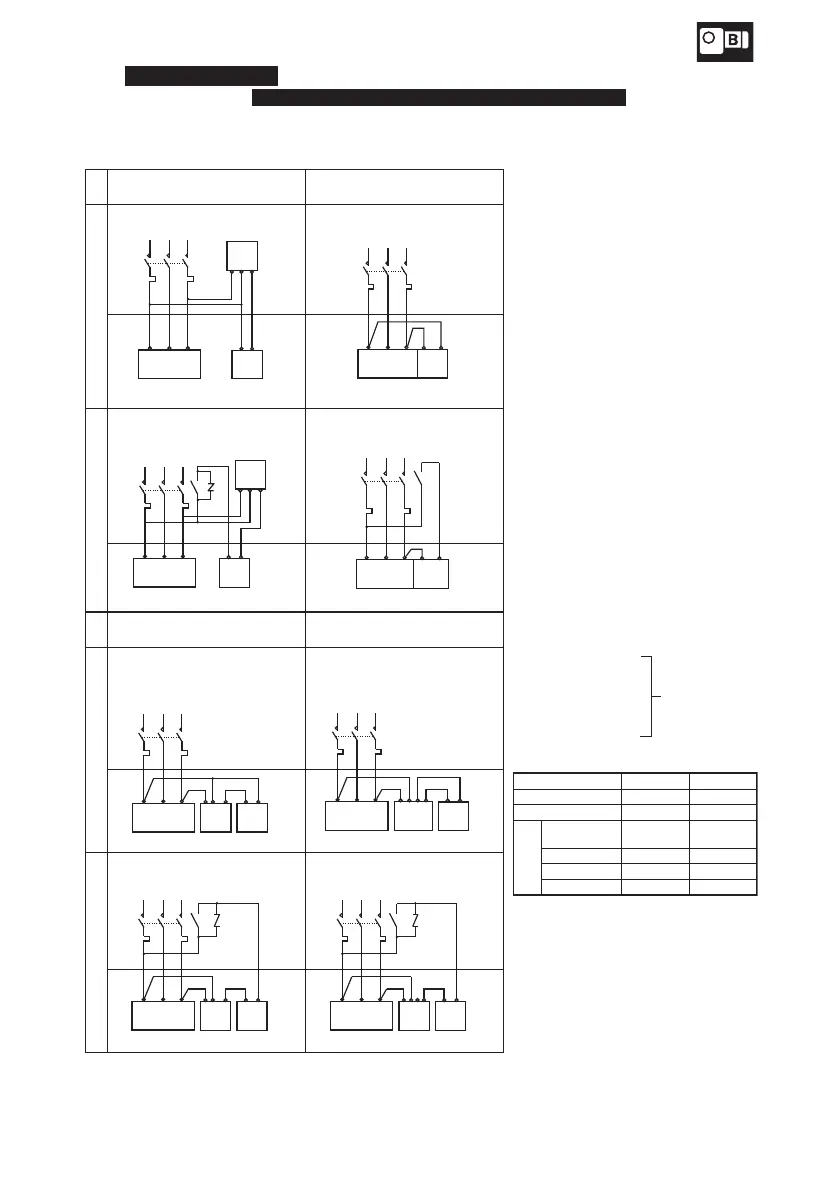

Fig.30 shows the 3-phase motor, 3-phase high efficiency motor with brake connection and the
standard specifications for terminal codes.
Note 1: A rectifier is supplied separately for SB-
004.
Note 2: A rectifier is built in the brake of motors
for MB-003-MB005. (A rectifier is
supplied separately for water-proof
type.)
Note 3: Do not open water-proof dust-proof box
for water-proof type , otherwise
electrical shock, fire or damage to the
equipment may result.
Note 4: A rectifier is not water-proofed for
water-proof type .
Control panelTerminal box
Control panelTerminal box
Control panelTerminal box
Control panelTerminal box
Control panelTerminal box
Control panelTerminal box
Control panelTerminal box
Control panelTerminal box
Varistor (VR) Capacity
Input power
AC200V–230V AC380V–460V
Rated voltage of varistor
AC260V–300V AC510V
Voltage of varistor
430V–470V 820V
Rated power
of varistor
SB-004, FB-01A1,
02A1, 05A1
0.25Watt or more
0.4Watt or more
FB-1D 0.4Watt or more 0.6Watt or more
FB-2D, 3D, 5B, 8B 0.6Watt or more 1.0Watt or more
FB-10B1,15B1 1.0Watt or more 1.0Watt or more
Varistor is optionally available at Sumitomo.
MC : Electromagnetic
contactor
OLR : Overload relay or
thermal relay
VR : Varistor (Protector
element)
These should be
furnished by the
customer.
Refer to page 6 table 1-1, 1-2 for brake type.
This drawing shows for a motor based on standard specification for domestic market. Motor based on overseas standard shall be
referred to us.
Refer to connection diagram on the motor when sharing power supply.
6. Wiring
