26

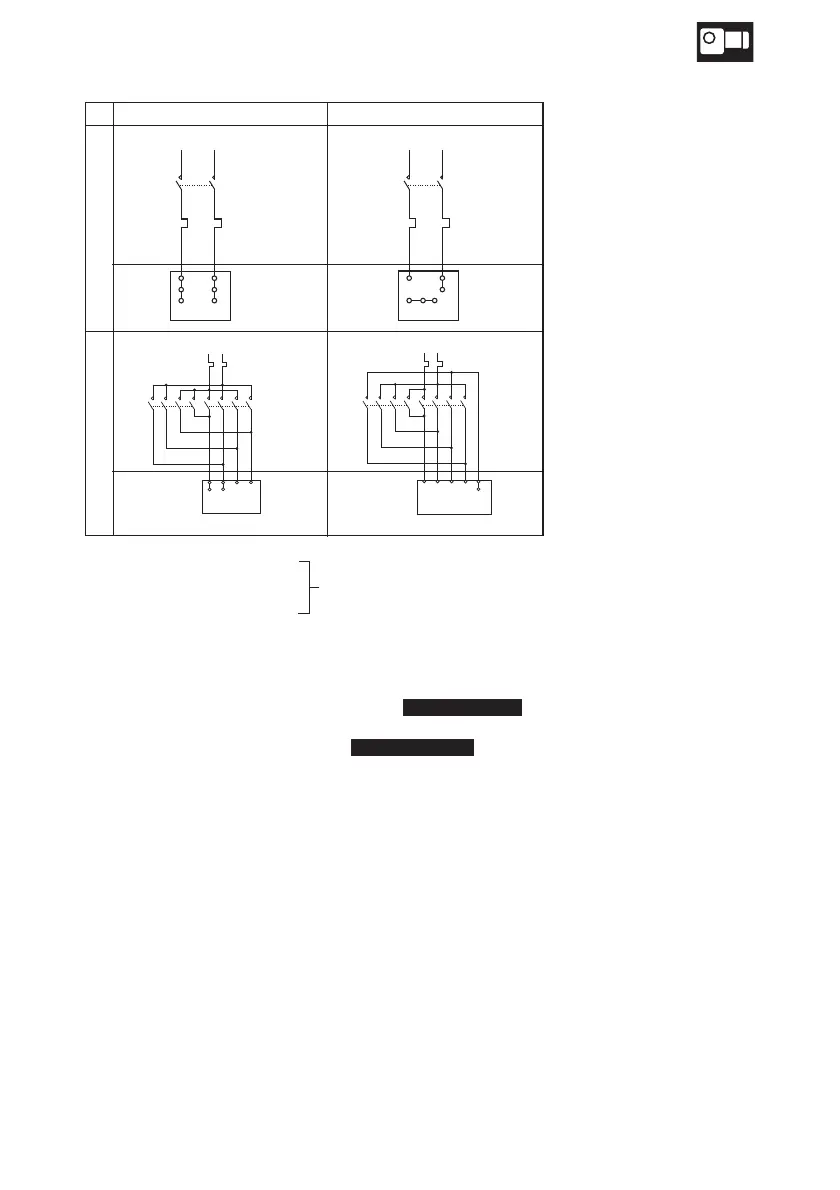

Fig.29-b In a case of capacitor start and capacitor-run type 0.1kW-0.4kW
MC: Electromagnetic contactor
OLR: Overload relay or thermal relay
Rotation shifting switch
These should be
furnished by the
customer.
· Connection to Z1 and Z2 shall be exchanged with each other when reverse rotation is
necessary if the motor is provided only for rotation in one direction.
· A capacitor is built in the terminal box of capacitor start and capacitor-run type 0.1kW-0.4kW.
· Do not open water-proof dust-proof box for
water-proof type , otherwise electrical shock, fire
or damage to the equipment may result.
· A capacitor is not water-proofed for
water-proof type .
· This drawing shows for a motor based on standard specification for domestic market.
Motor based on overseas standard shall be referred to us.
100VClass
200VClass
