41
No. Part name
1 Brake restraining bolt
2 Stationary
3 Armature plate
4 Lining with fan
5 Setting bolt
6 Retaning ring
7 Cover
8 Torque spring
No. Part name
1 Brake restraining bolt
2 Stationary
3 Armature plate
4 Lining with fan
5 Setting bolt
6 Retaning ring
7 Cover
8 Torque spring

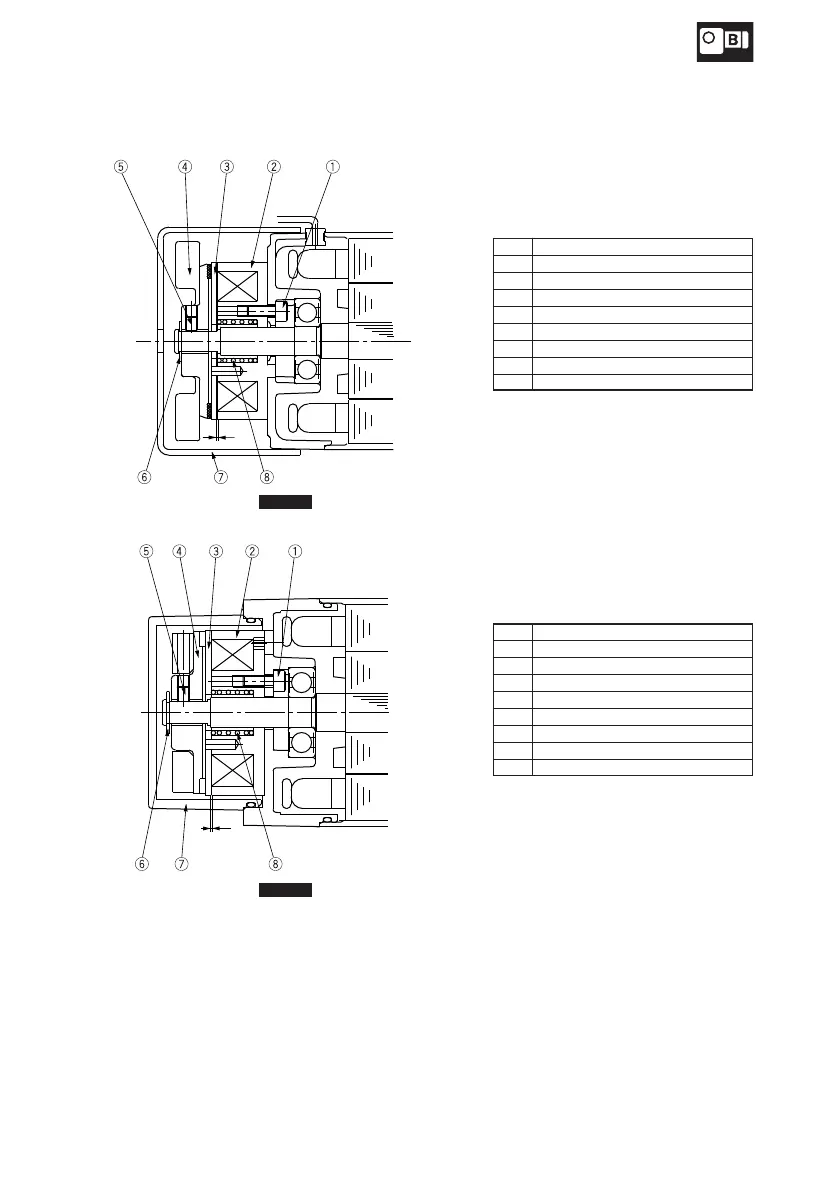

Fig.33 SB–004
Fig.34 SB–004
(water-proof type)
G
G
9–1) Construction and Operation
Figs. 33–42 show the construction of the brake. A spring is used for braking operation
(nonexcitation operation type).
9. Brake Maintenance
