No. Part name
1 Brake lining
2 Armature plate
3 Rectifier
4 Leaf spring
5 Torque spring
6 Stationary
7 Fan set bolt
8 Cover
9 Fan
(provided for single-phase 60,90W)
10 Boss
11 Boss setting bolt
12 Brake restraining bolt
13 Fixed plate
No. Part name
1 Brake lining
2 Armature plate
3 Cover
4 Leaf spring
5 Torque spring
6 Stationary
7 Boss
8 Boss setting bolt
9 Brake restraining bolt
10 Fixed plate

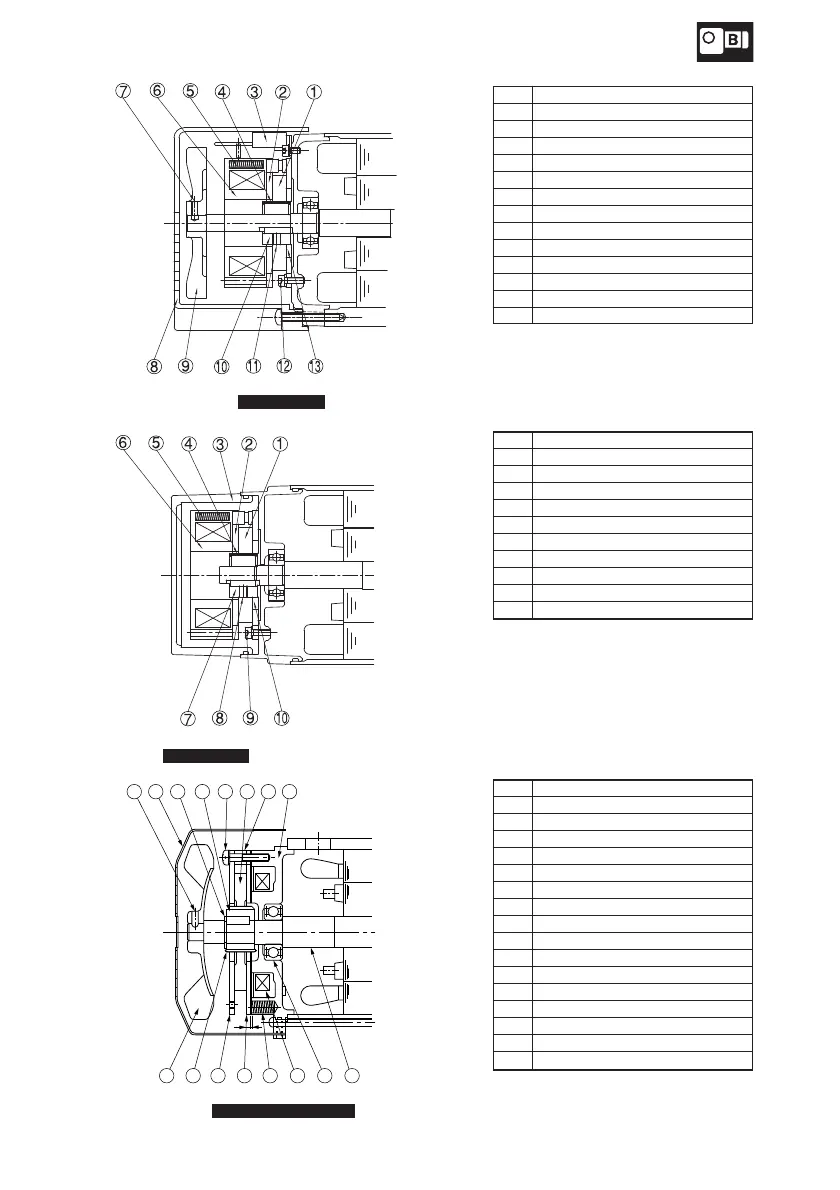

Fig.35 MB-003, 005
Fig.36 MB-003, 005 (Water-proof type)
No. Part name
1 Stationary core
2 Spacer
3 Brake lining
4 Assembling bolt
5 Boss
6 Shaft retaining C-ring
7 Cover
8 Fan set bolt
9 Fan
10 Leaf spring
11 Fixed plate
12 Armature plate
13 Spring
14 Electromagnetic coil
15 Ball bearing
16 Motor shaft
Fig.37 FB-01A1, 02A1, 05A1
G
12345678
13121110 9
14
15
16
FB-01A1 for 3-phase motor 0.1kW does
not apply to No.8,9.
