Sumitomo Drive Technologies HYPONIC DRIVE - Page 45

No. Part name
1 Stationary core
2 Release fitting
3 Stud bolt
4 Adjusting washer
5
Manual release prevention spacer
6 Brake release bolt
7 Spring washer
8 Gap adjusting nut
9 Brake lining
10 Boss
11 Shaft retaining C-ring
12 Cover
13 Spring pin
14 Fan
15 Leaf spring
16 Fixed plate
17 Armature core
18 Spring
19 Electromagnetic coil
20 Ball bearing
21 Motor shaft

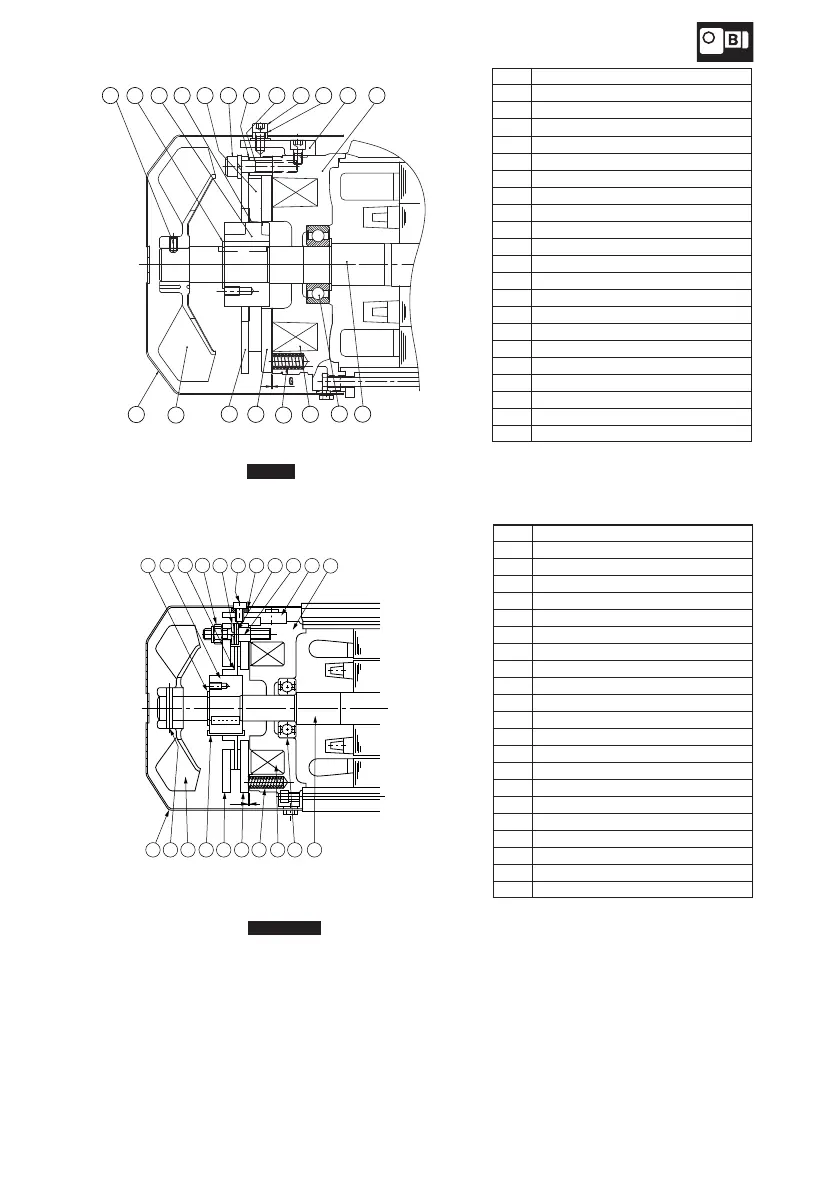

Fig.40 FB-3D
3
11
4
10
9
7
8
13
14
15
16
17
18
19
20
12
5
6
1
2
No. Part name
1 Stationary core
2 Release fitting
3 Stud bolt
4 Adjusting washer
5
Manual release prevention spacer
6 Brake release bolt
7 Spring washer
8 Gap adjusting nut
9 Brake lining
10 Boss
11 Shaft retaining C-ring
12 Cover
13 Spring pin
14 Fan
15 Leaf spring
16 Fixed plate
17 Armature core
18 Spring
19 Electromagnetic coil
20 Ball bearing
21 Motor shaft
Fig.41 FB-5B, 8B
G
1
234657
8
11 10
9

1312
14
15
16
17
18
19
20
21
44
9. Brake Maintenance
