No. Part name
1 Stationary core
2 Release fitting
3 Stud bolt
4 Adjusting washer
5
Manual release prevention spacer
6 Brake release bolt
7 Spring washer
8 Gap adjusting nut
9 Brake lining
10 Boss
11 Shaft retaining C-ring
12 Cover
13 Fan set bolt
14 Fan
15 Leaf spring
16 Fixed plate
17 Armature core
18 Spring
19 Electromagnetic coil
20 Ball bearing
21 Motor shaft

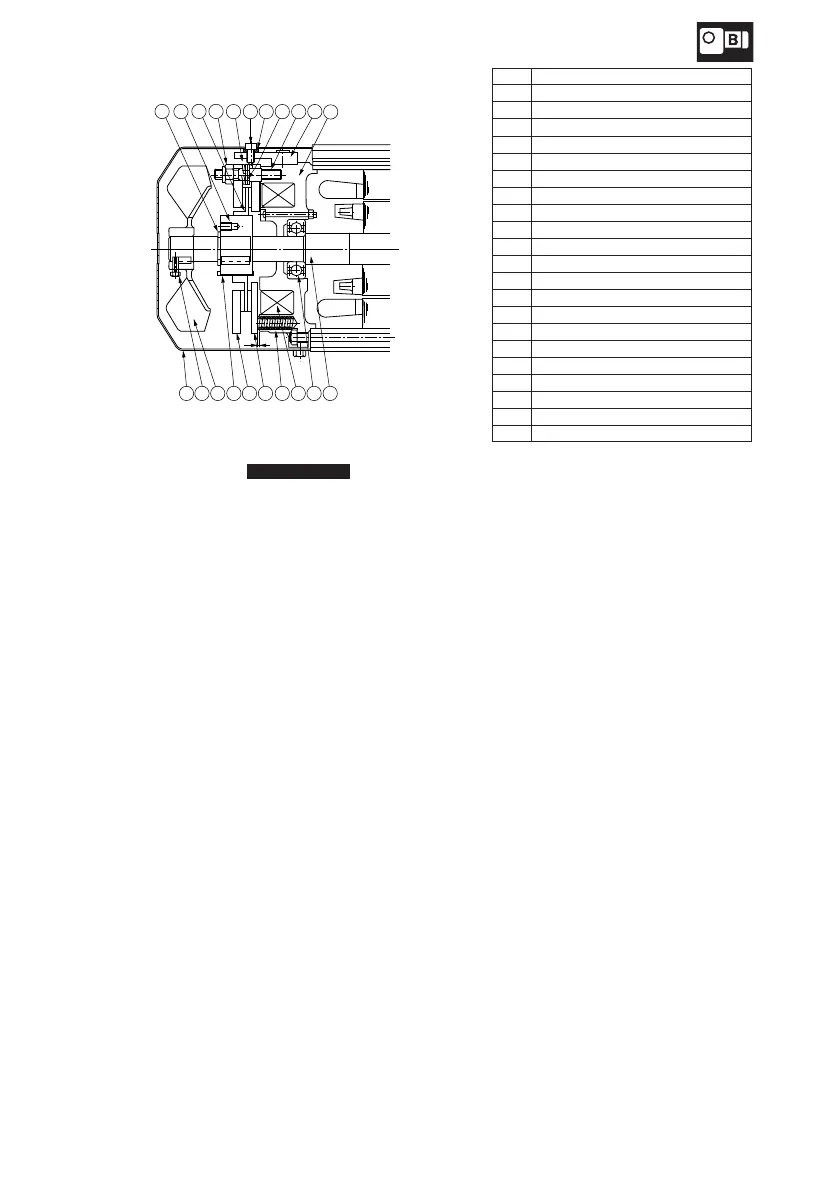

Fig.42 FB-10B1, 15B1
