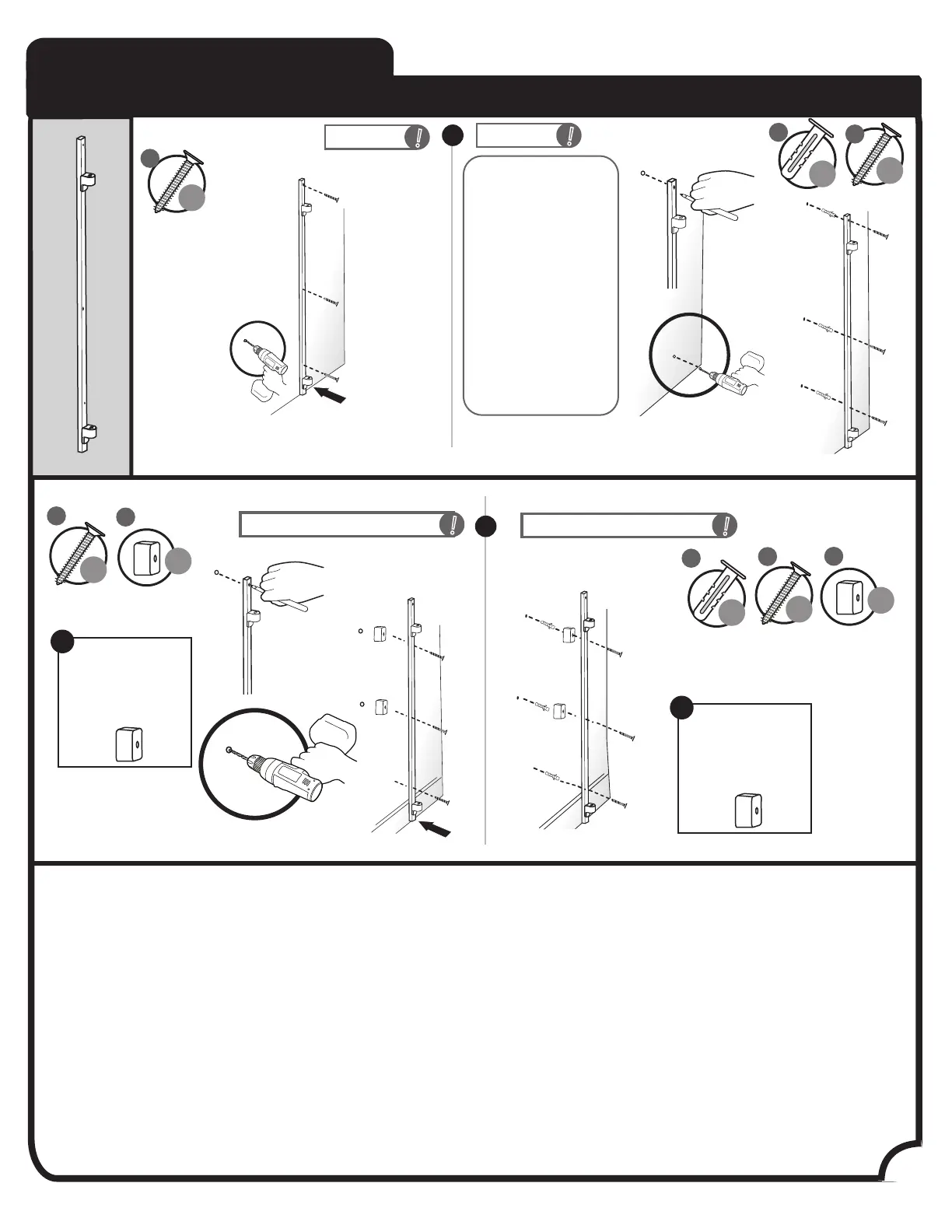

Summer 27903Z - Option B: Wall Mount Hinge Installation

x3
Pre drill holes using
7/32” (5.5mm) drill
bit. Use pre-existing
holes in your
banister bracket as
your guide. Insert
Wall Anchors into
the hole with a
hammer, tap gently
on end until the Wall
Anchor is ush with
the wall.
!
!
wallboard
wood wall
Wall Mount
or
Pre-drill a
hole using a
1/8” or
3mm.
Option B:
x3
x3
stud
x3
!
!
wallboard with baseboard
wood wall with baseboard
or
x 3
x 3
IMPORTANT:
If baseboard exists,
use spacer. If there is
no baseboard, attach
to wall directly.
!
IMPORTANT:
If baseboard exists,
use spacer. If there is
no baseboard, attach
to wall directly.
!
x2
x2
Pre-drill a hole using a 1/8” or 3mm.
1. Hinge Assembly
