Summer 27903Z - Gate and Support Foot Assembly; Gate Assembly for Wall Mount; Support Foot Assembly

8

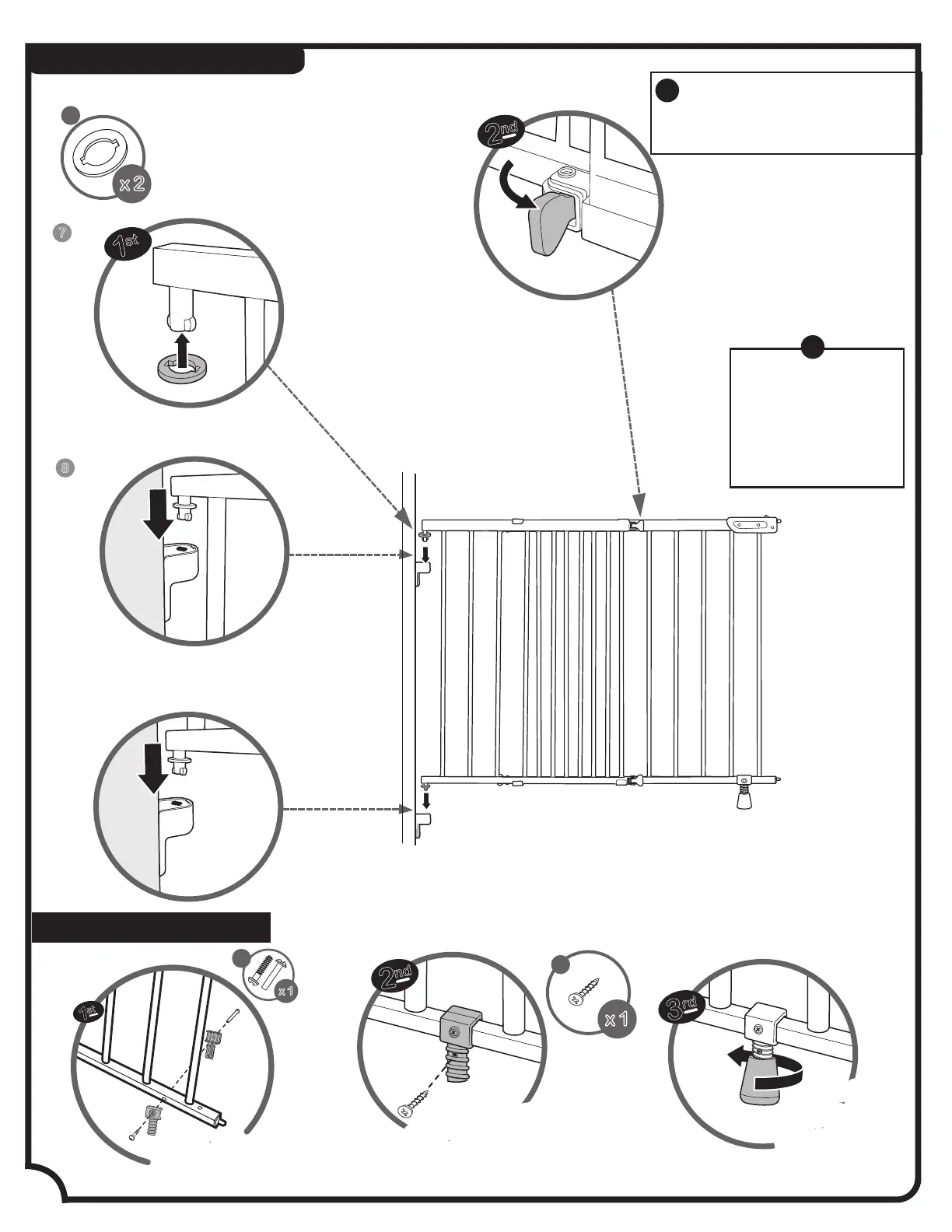

2. Gate Assembly - Wall
With the Gate 90º to
the Hinges (open position),
lower Gate into openings
on hinges.
Add Plastic
Inserts (part Q)
to the Upper
and Lower
Hinge Bolts.
1
st
Unlock all
4 Cam Lock
on Gate.
x 2
2
nd
7
Using the support foot
fasteners, attach both
sides of the Support Foot
to the base of the gate.
x 1
x 1
Screw on
base of
Support Foot.
Screw on
base of
Support Foot.
Use short screw to
fasten bottom
of Support Foot.
Use short screw to
fasten bottom
of Support Foot.
2
nd
3
rd
Support Foot Assembly:
1
st
IMPORTANT NOTE: Adjust
foot to be just touching oor
when gate is locked closed.
IMPORTAN T:
At the top of the landing,
position the gate a minimum
of 3-6 inches (8-15cm) away
from the top step.
!
IMPORTANT:
The Gate should never
open over the stairs.
The protrusion on the
latch will prevent the
gate from swinging
both ways.
!
6
M
N
Q
