OWNER’S MANUAL
Electrical Connections
The installation of the SUMMIT pool heater should be performed by a certi-
fied electrician. To connect the electricity, you must unscrew the five screws
of the front panel, then slide the electric cable in the hole located on the left
or the right side of the base, and then insert it in the control box. The electrical

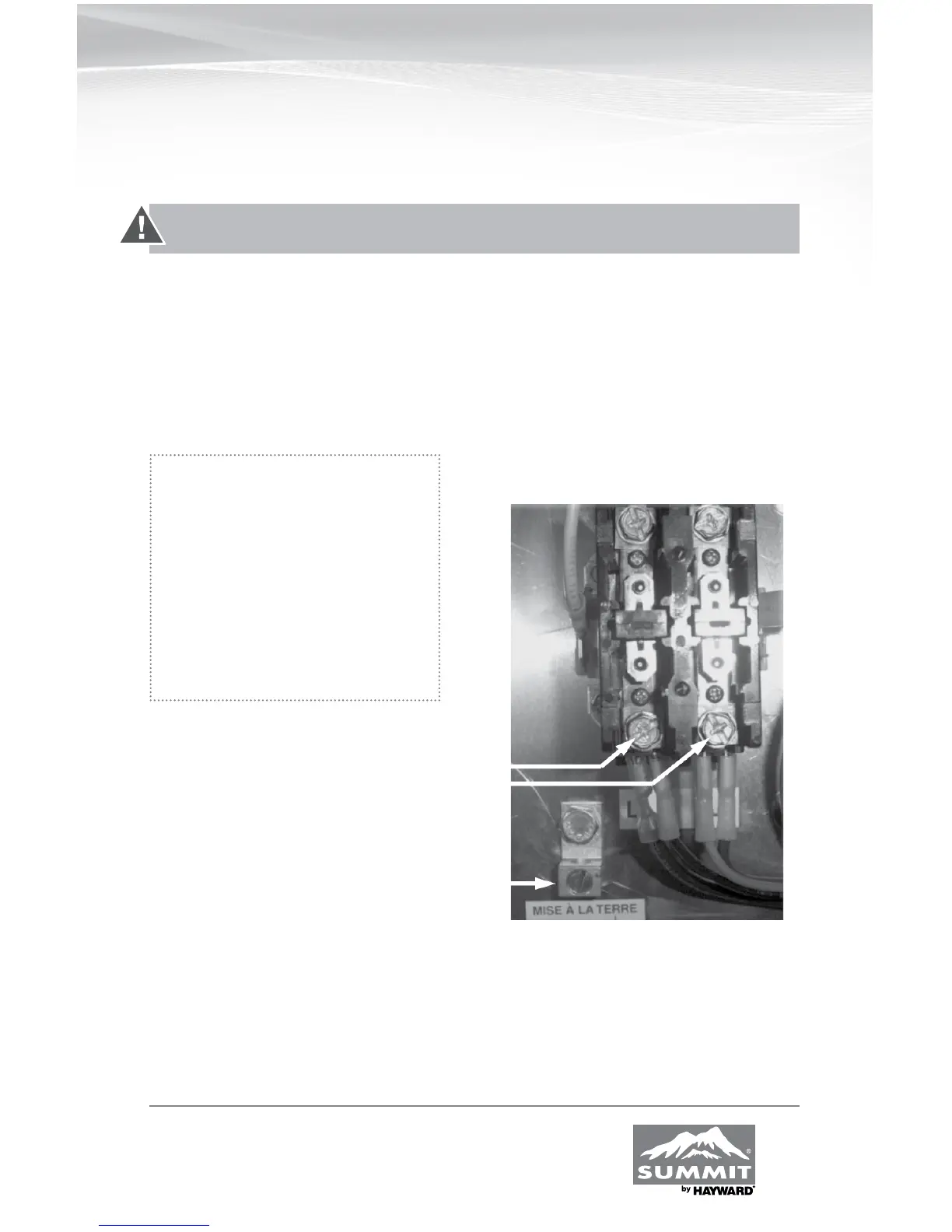

diagram is located on the lid of the control box as well as below (see FIG.5).
WARNING
Ground
L1
L2
Fig. 5
Power requirements
240 V, 1 PH, 60 Hz
Look at the name plate loca-
ted on the heat pump to know
the required amperage.
Please refer to your local
electrical code.
11
