Mechanical Installation
10

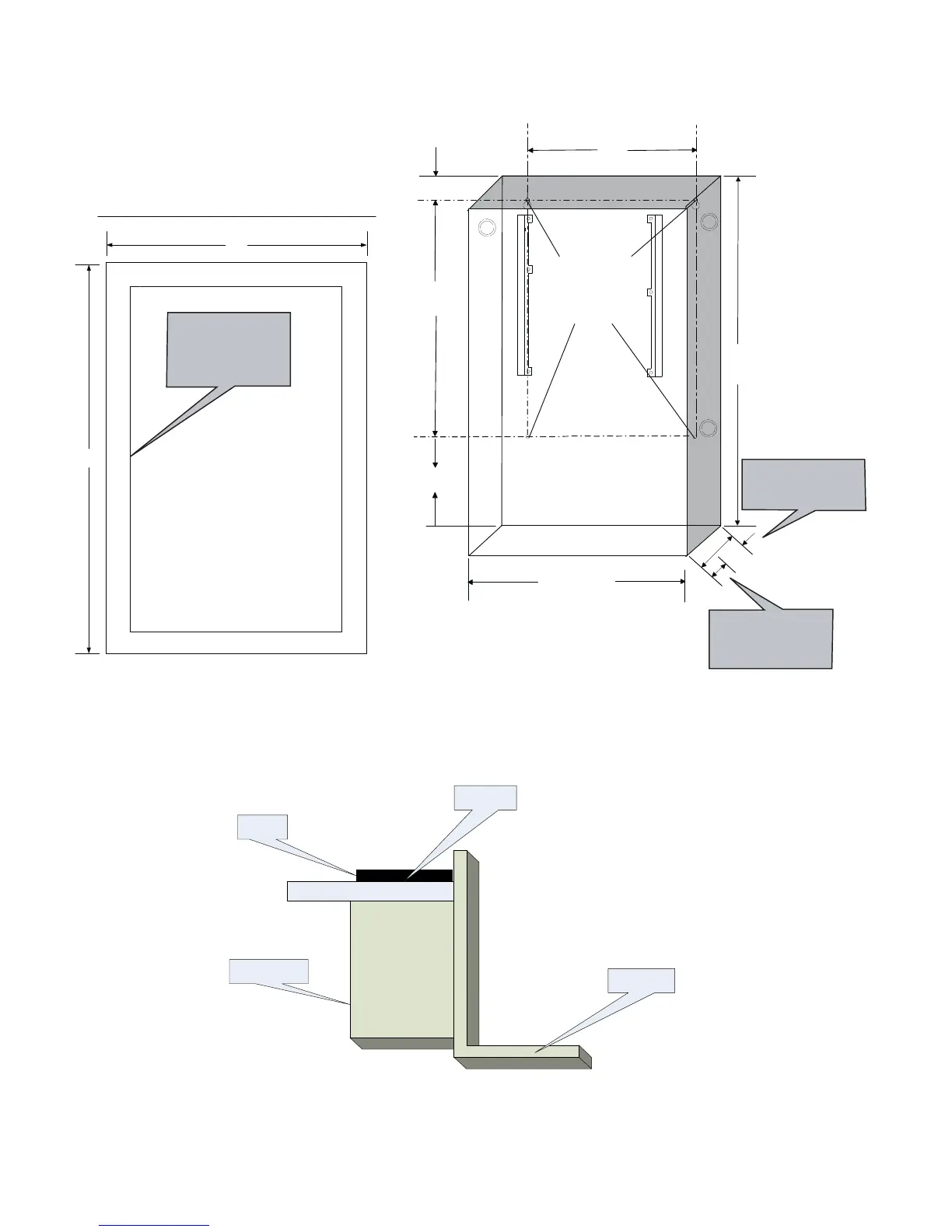

Figure 2: Mounting the SFC-500 - Flush
Figure 3 shows a cross-section of the semi-flush mounted backbox and the trim ring. Make sure to allow a
minimum depth of 1” above the wall surface for proper door opening.
Figure 3: Flush Trim Detail
17"
22.5"
PLACE SFC-200TRB TRIM RING OVER BACKBOX
14.5"
3.5"
1"
4
.
5
"
11"
20.0"
1.5"
4"
14.5"
3.5" is the maximum depth
for semi-flush mounting
using the flush trim ring
1" is the minimum depth
above the wall required
for semi-flush mounting
using the flush trim ring
4 Mounting
Holes for
Surface
Mounting
Adhere trim ring to
wall surface around
SFC-500 backbox
Back box
Trim ring
Wall
Wood stud
