Summit SFC-500 SERIES - Indicators, Controls and Operations; Figure 18: LCD Display, LED Indicators and Control Buttons

Indicators, Controls and Operations
28
Indicators, Controls and Operations
Figure 18 shows the common display panel for both the SFC-500 and the SFC-551 Fire Alarm Control Panel.

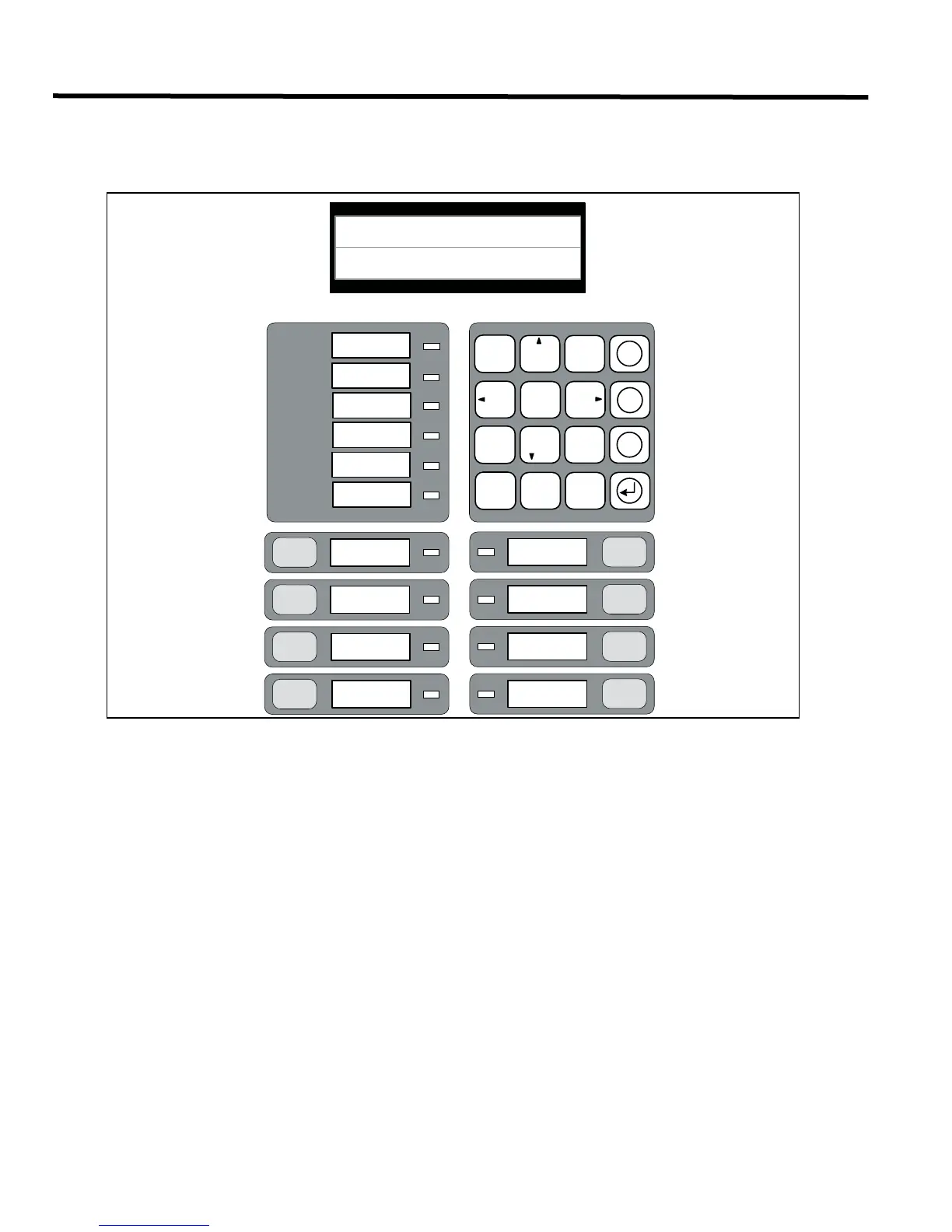

Figure 18: LCD Display, LED indicators and control buttons
The display panel on the SFC-500 Series main fire alarm control board consists of:
• a two line by twenty character LCD display
• a sixteen button keypad
• common LED Indicators
• common control buttons
SFC-551 and SFC-553 models are equipped with one SRAX-532 LED display adder (32 zone annunciation), with provision for a
second optional adder (see page 14 for further explanation) for another 32 zone annunciation for a total of 64 zone annunciation.
Each LED zone has a red/amber alarm/supervisory LED and an amber trouble LED.
LED Indicators may be amber, red, or green, and may illuminate continuously, or at one of following Flash Rates:
• Steady (Alarm) - ON continuously.
• Fast Flash (Supervisory) - 120 flashes per minute, 50% duty cycle.
• Trouble Flash (Trouble) - 20 flashes per minute, 50% duty cycle.
Red indicators are used for Alarm, amber indicators for Trouble or Supervisory and green for power ON.
Note that each SRAX-532 display is supplied with blank paper labels (#NP-681) for sliding into the plastic label template on the
display.
