I T L S E R V I C E M A N U A L
H-18
HYDRAULIC SYSTEM
Ÿ Checking the pressure on the gauge and setting the pressure with setscrew wrench.
Ÿ Starting the tractor.
Ÿ Move the action lever on the auxiliary valve.
Ÿ Gauge to be used on pressure line from pump to inlet rockshaft turn the screw in clockwise direction for the
increase of the pressure and turn in anti clockwise direction for the decrease of the pressure setting the relief valve
at 170-175 bar (16-20 L/min).
Torque 3-3.5 Kgm
Turn Screw
Set Screw Wrench
Operation 3:

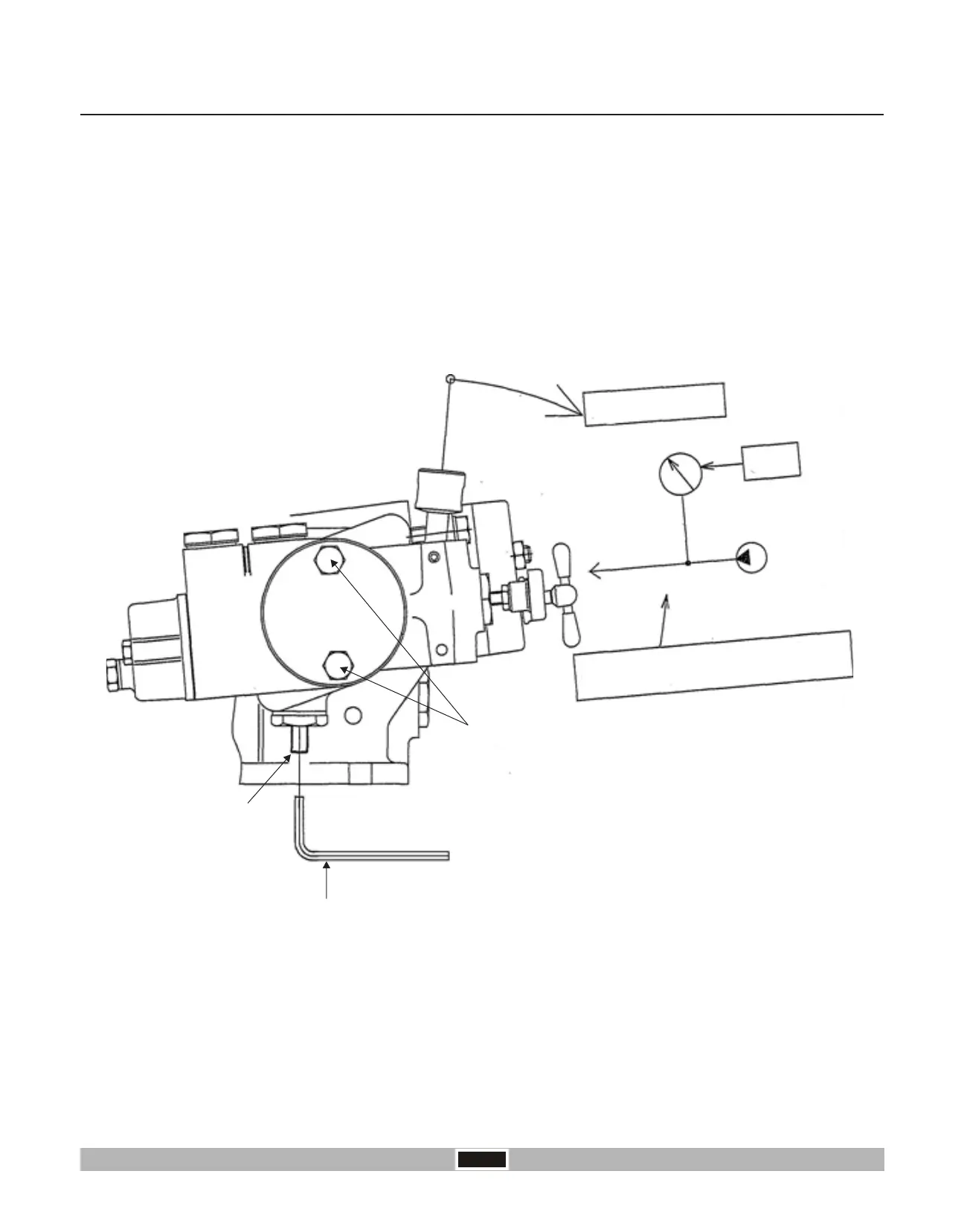

GAUGE ON THE LINE PRESSURE
PUMP - INLET ROCKSHAFT
HEXAGONAL WRENCH
GAUGE
ACTION LEVER
