I T L S E R V I C E M A N U A L
H-23
HYDRAULIC SYSTEM
H 7.0 RE-ASSEMBLY OF HYDRAULIC LIFT

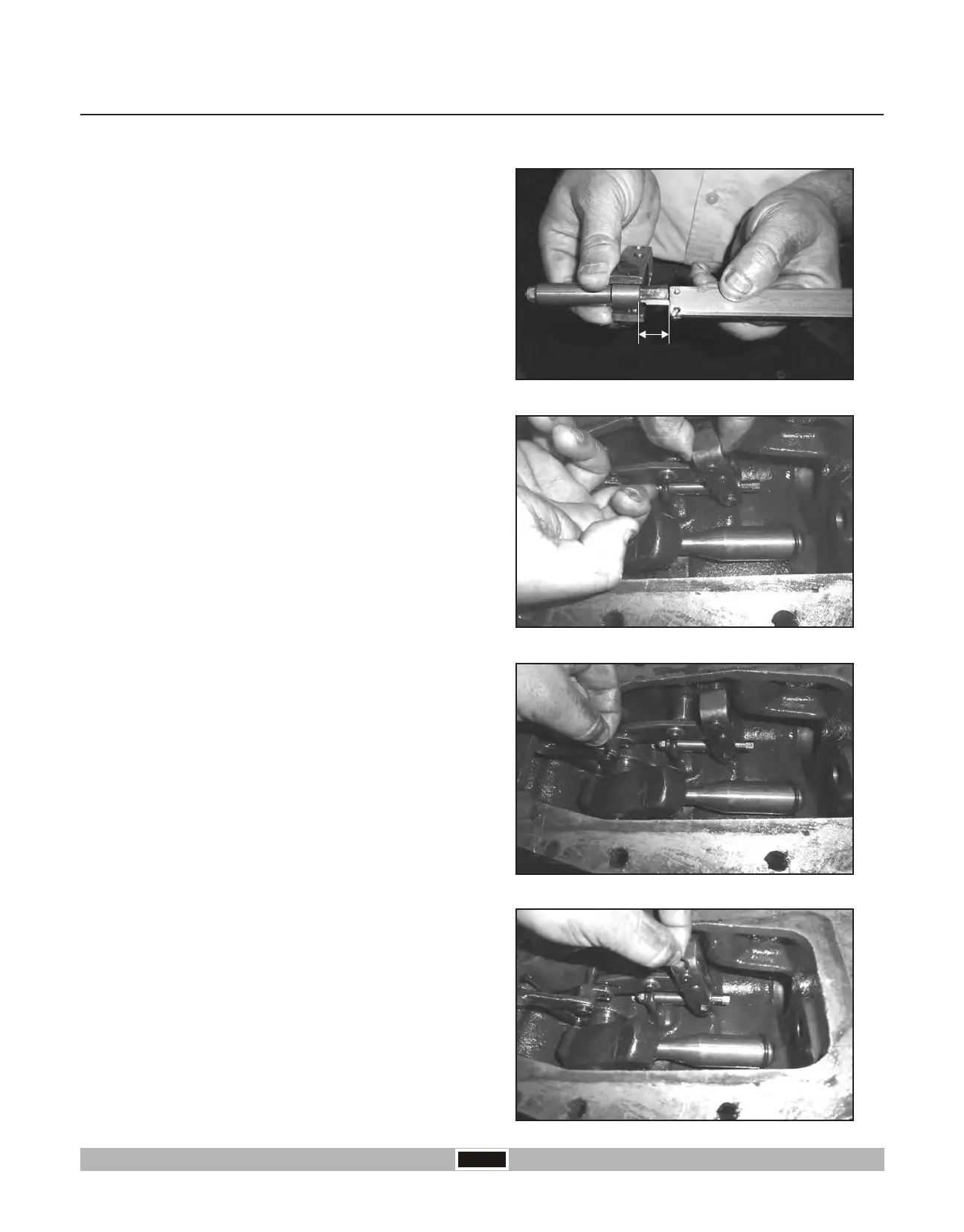

Step - 1: Adjustment of push rod and linkage assy
Ÿ If the rockshaft is adjusted and if the hydraulic group
is disassembled one must always restore the
measurement of 18mm.
18mm
Ÿ Refit the lock pin (1) as shown in figure.
Ÿ Refit the lock pin (2) as shown in figure.
Ÿ Assemble the push rod as shown in figure.
