I T L S E R V I C E M A N U A L
H-24
HYDRAULIC SYSTEM

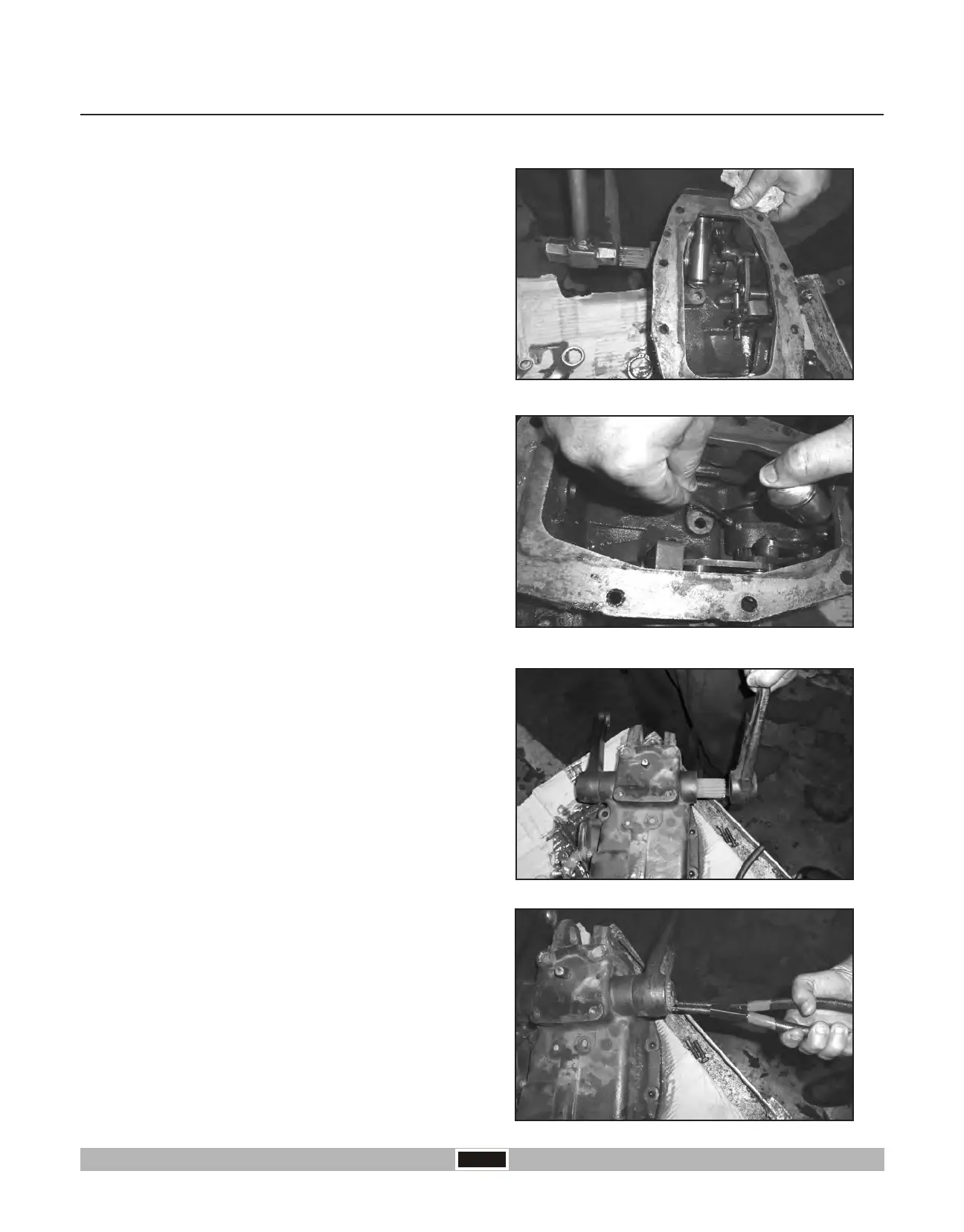

Ÿ Tighten the screw plug from ram arm for assy of Rock
Shaft as shown in figure.
Ÿ Refit the Rock Shaft by using hammer as shown in
figure.
Ÿ Refit the lift arms by using hammer.
Ÿ Lock the circlips from both ends of Rock Shaft as
shown in figure.
Step - 2: Re-assembly of Rock Shaft
