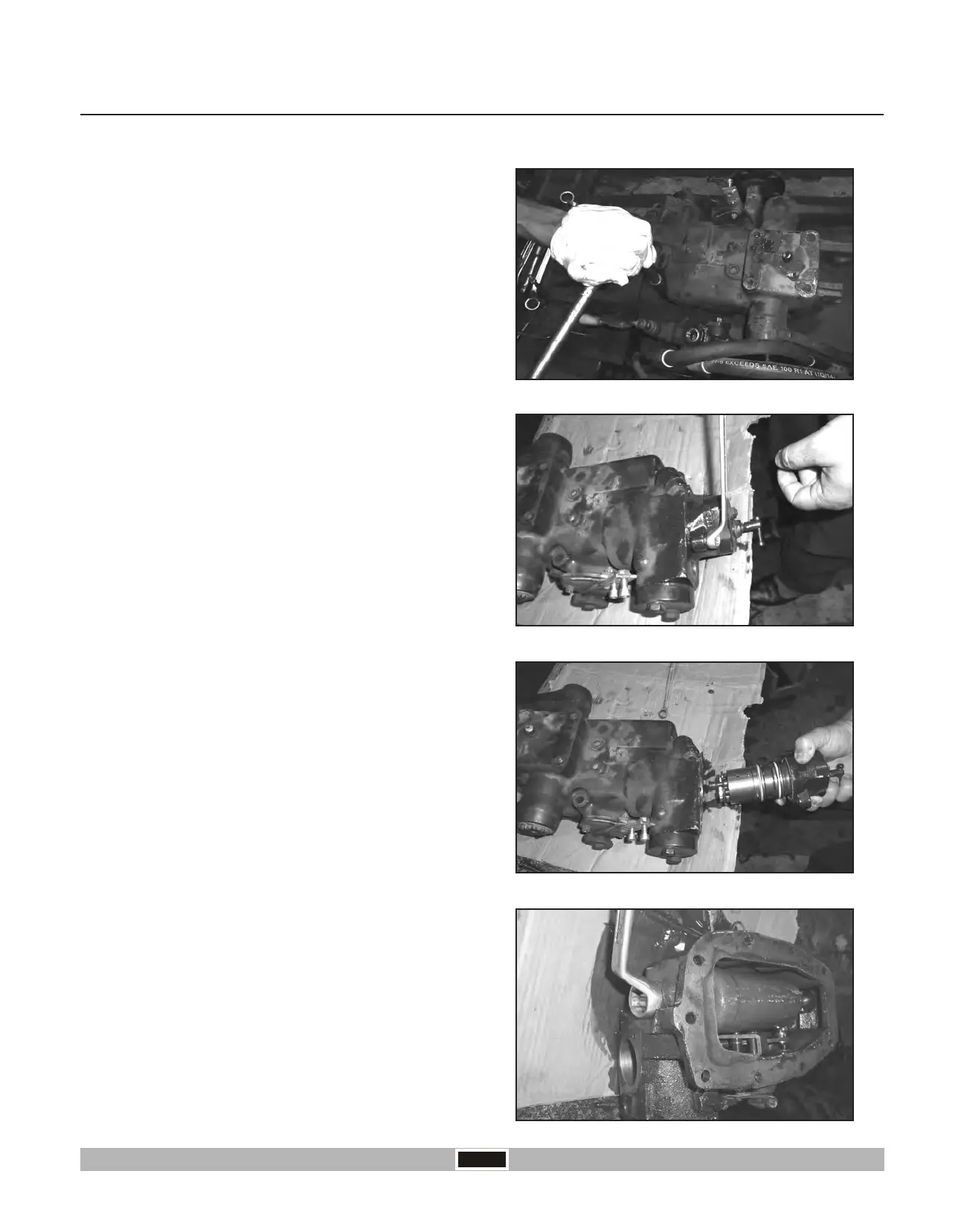

H 4.0 DISMANTLING PROCEDURE FOR HYDRAULIC LIFT
HYDRAULIC SYSTEM
Step - 2: Removal of Control Valve Assembly
Ÿ Unscrew hex bolts of control valve body and remove
the control valve assembly.
Ÿ Unscrew banjo bolt of hydraulic cylinder.
Step - 3: Removal of Hydraulic Cylinder
Ÿ First of all, remove lift body assembly from
transmission housing by removal of hex bolts (9 nos).
Step - 1: R e m o v a l of Hy d r a u l i c Lift f r o m
Transmission Housing
To Next Page
