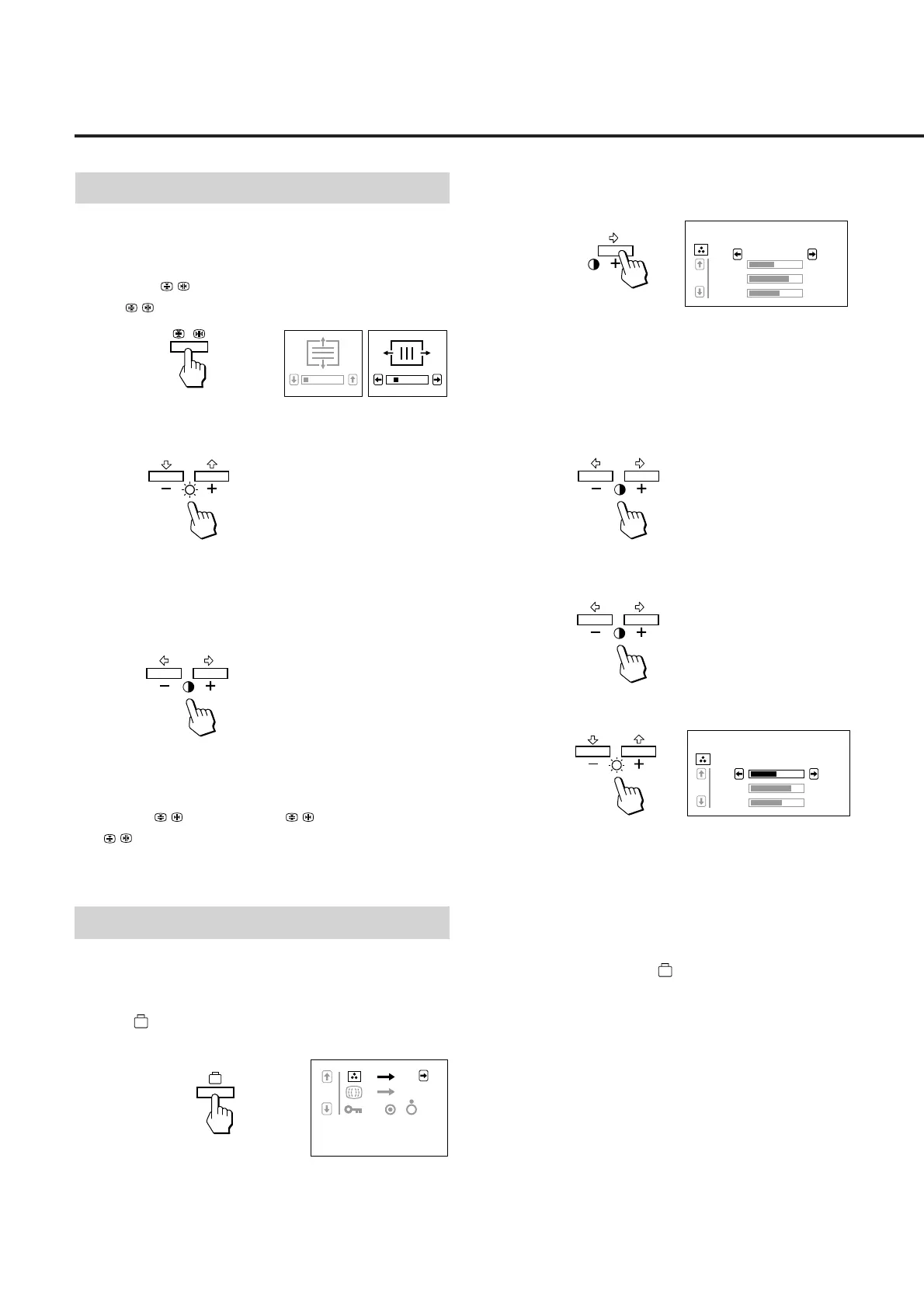

Adjusting the Convergence
The adjustment data becomes the common setting for all
input signals.
1 Press the button.
The
OSD (On Screen Display) appears.
2 For vertical adjustment
Press the ¨ ./ >buttons.
. . . . to move Red down and Blue up
> . . . to move Red up and Blue down
For horizontal adjustment
Press the > ?// buttons.
? . . . to move Red to the left and Blue to the right
/ . . . to move Red to the right and Blue to the left
To erase the
OSD, press the button again.
The OSD automatically disappears 10 seconds after
you release the buttons.
2 Press > / button.
The color temperature OSD appears.
3 Adjust with > ?// and ¨ ./> buttons.
There are three color temperature modes on the OSD.
The factory settings are 1 : 5000K, 2 : 6500K, and 3 :
9300K.
To select 5000K, 6500K or 9300K
Press > ?// buttons.
To obtain the desired color temperature
1 Press > ?// buttons to select the 1, 2 or 3 mode.
2 Press ¨ ./> buttons to select R, G or B.
3 Press > ?// buttons to adjust the color
temperature.
The “5000K”, “6500K” or “9300K” disappears.
The new color temperatures are memorized for each
mode-1, 2 or 3.
To erase the OSD, press the
button again.
The OSD automatically disappears 30 seconds after you
release the buttons.
Adjustments
R
G
B
1 23
5000K
50
76
70
Setting the Color Temperature
The selected color temperature becomes the common setting
for all input signals.
1 Press (option) button.
The option OSD (On Screen Display) appears.
0 23
