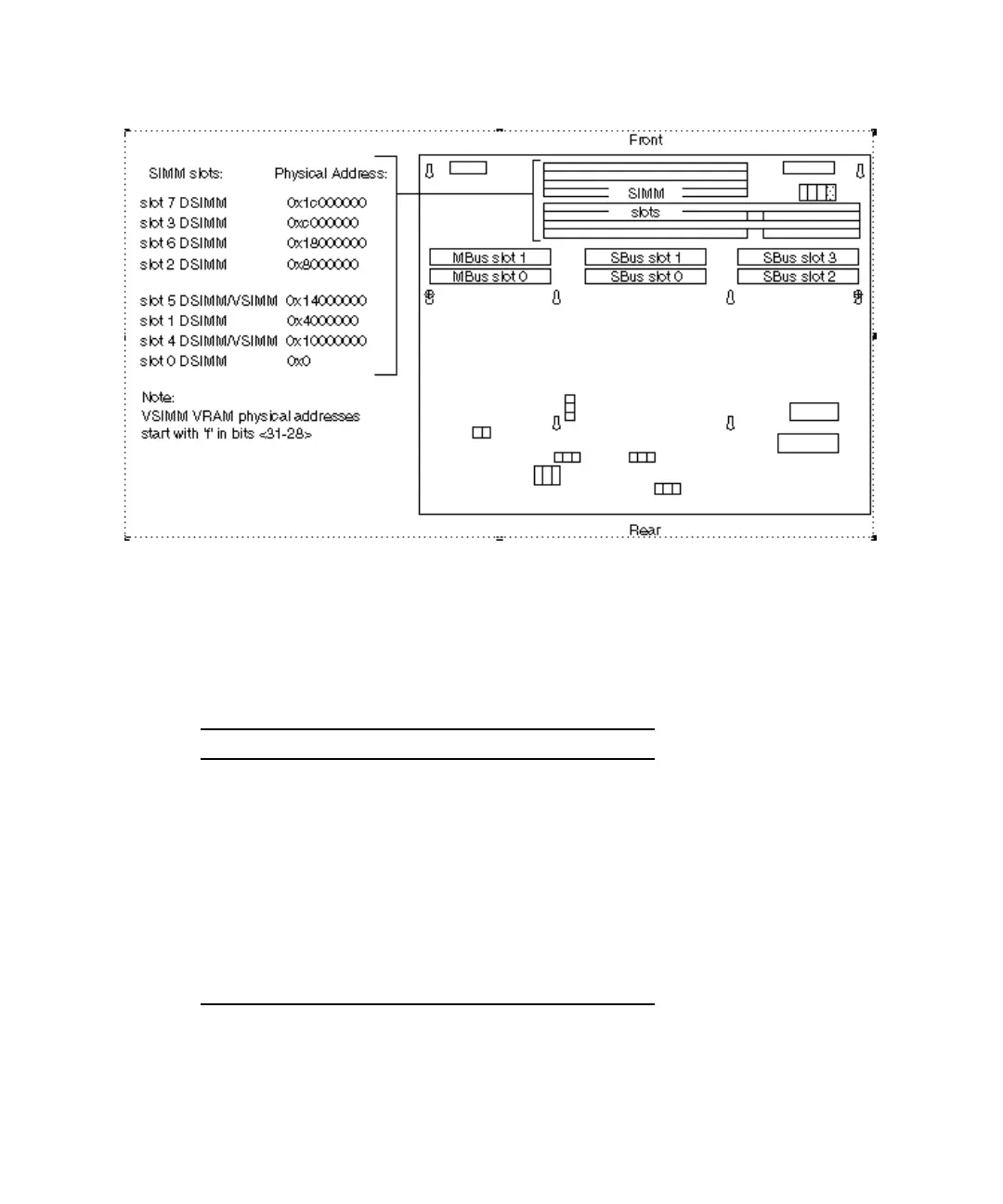

FIGURE 2-1 Memory Layout on Mother Board of SPARCstation 10SX
The table below illustrates the physical address map of a system configured with 16
MByte DSIMMS in all the slots
TABLE 2-1 SPARCstation 10SX System Memory Layout
16 MByte DSIMMs only
SIMM Slots DSIMM Size Physical Address
Slot 7 16 MByte DSIMM 0x1c000000
Slot 3 16 MByte DSIMM 0xc000000
Slot 6 16 MByte DSIMM 0x18000000
Slot 2 16 MByte DSIMM 0x8000000
Slot 5 16 MByte DSIMM 0x14000000
Slot 1 16 MByte DSIMM 0x4000000
Slot 4 16 MByte DSIMM 0x10000000
Slot 0 16 MByte DSIMM 0x0
