SUNBA Analog Series - Stage 2: Permanent Installation

With DVR
With CCTV Monitor and 3D Pan Tilt Zoom Joystick

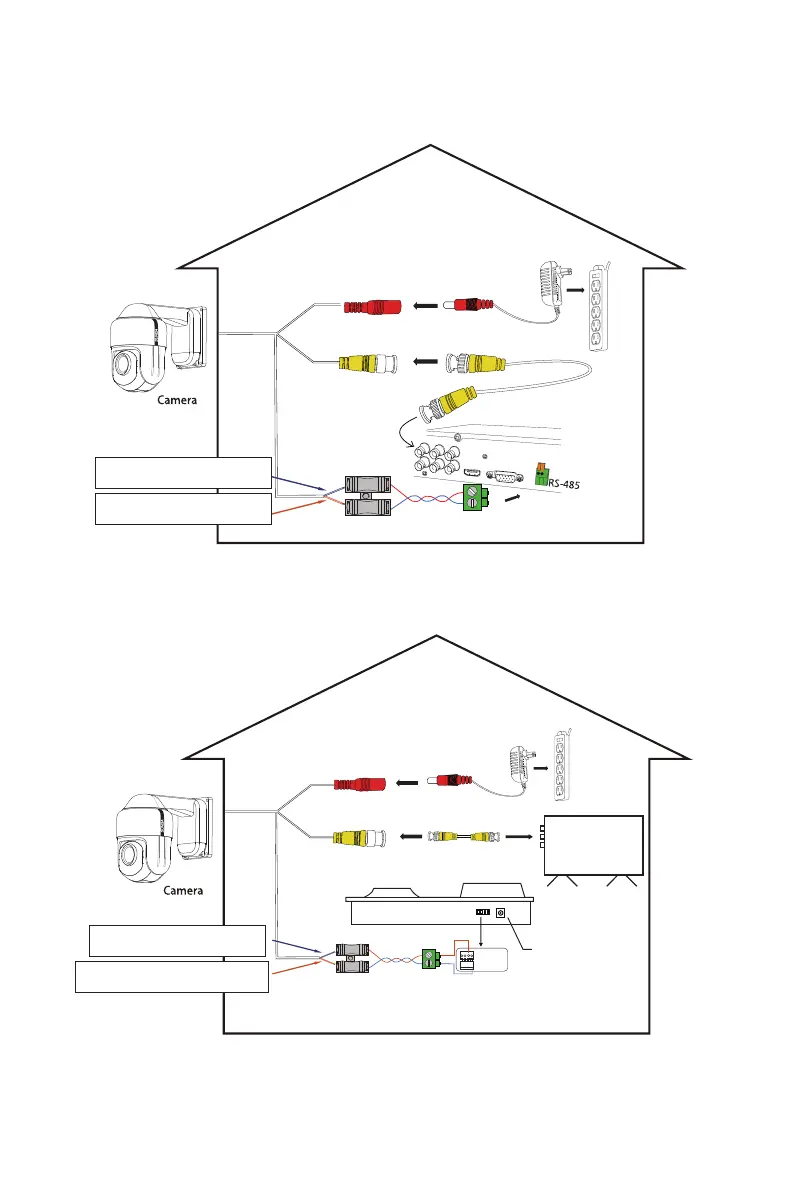

Stage2:Permanent Installation
A
B
Blue side goes to polar A on the
RS485 port of the DVR
Orange side goes to polar B on
the RS485 port of the DVR
Twisted Pair Cable
Power
Video
PTZ Control
BNC
DC12V
- 04 -
Blue side goes to polar + on the
RS485 port of the 3D Keyboard
Orange side goes to polar - on
the RS485 port of the 3D Keyboard
Twisted Pair Cable
Power
Video
PTZ Control
BNC
DC12V
3D Keyboard
DC 9V
A B + -
1.RS485A
2.RS485B
3.RS485+
4.RS485-
CCTV Monitor
