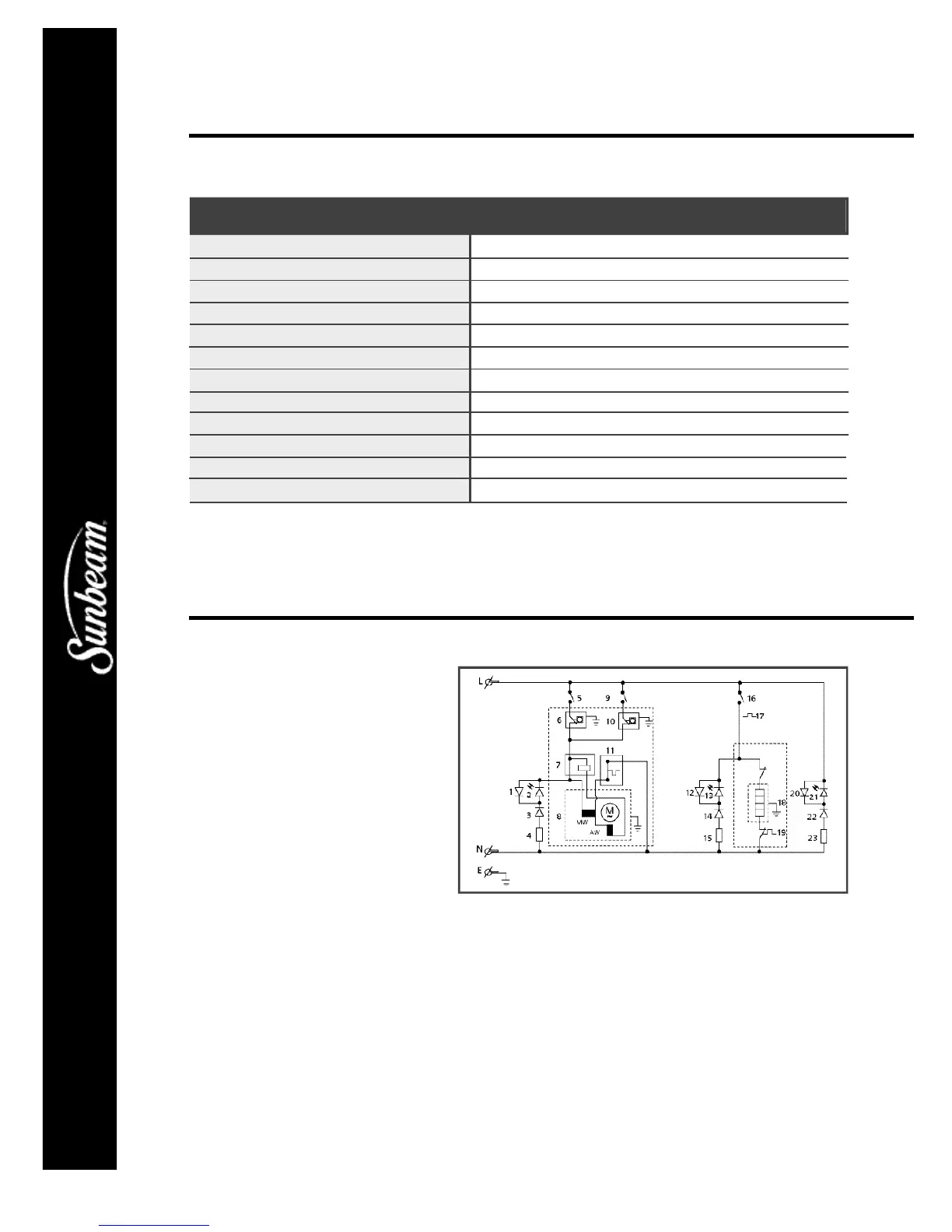

Sunbeam 101 - Specifications; Electrical Diagram

No. 0101
SPECIFICATIONS
ELECTRICAL DIAGRAM
1. Protection diode for the LED indicator light
2. Cooling on LED indicator light
3. Diode for the LED indicator light
4. Resistor for the LED indicator light
5. Cold water & refrigeration power switch
6. Refrigeration thermostat for the cold water
7. PTC starter for the compressor
8. Refrigeration Compressor
9. Fridge power switch
10. Refrigeration thermostat for the fridge
11. Thermal protector for the refrigeration compressor
12. Protection diode for the LED indicator light
13. Heater on LED indicator light
14. Diode for the L E D indicator light
15. Resistor for the L E D indicator light
16. Heating power switch
17. Thermostat for the hot water
18. Heater
19. Auto-reset thermostat for the hot water
20. Protection diode for the LED indicator light
21. Power on LED indicator light
22. Diode for the L E D indicator light
23. Resistor for the L E D indicator light
AC 115V / 60 Hz / 7A
4.5 Amperes
2.5 Amperes
R-134a
52 + / - 1 Gram / 1.83oz.
2L / 67.6 fl.oz. / hour (at room temp. below 30°C/86°F cools down to 10°C/50°F)
5L / 169.1fl.oz. / hour (at room temp. above 20°C/68°F heats up to 90°C/194°F)
0ºC - 10ºC / 32°F - 50°F
0.64 cu.ft. / 18 L
56.1 lbs / 25.5 kgs
15.25" L X 12.76" W X 38" H (38.7cm L X 32.8cm W X 96.5cm H)
2L / 67.6 fl.oz. / minute
Power supply :
Hot water heater power consumption :
Refrigeration compressor power consumption :
Refrigerant type :
Refrigerant quantity :
Cold water cooling capability :
Hot water heater capability :
Cooling compartment cooling temperature :
Volume of cooling compartment :
Net weight :
Dimensions :
Cook tap flow rate :
NO. 0101
NOTE: UL model number on the back of the unit refers to Sunbeam
®
Water Dispenser with Cooling Compartment.
- 7 -
