11

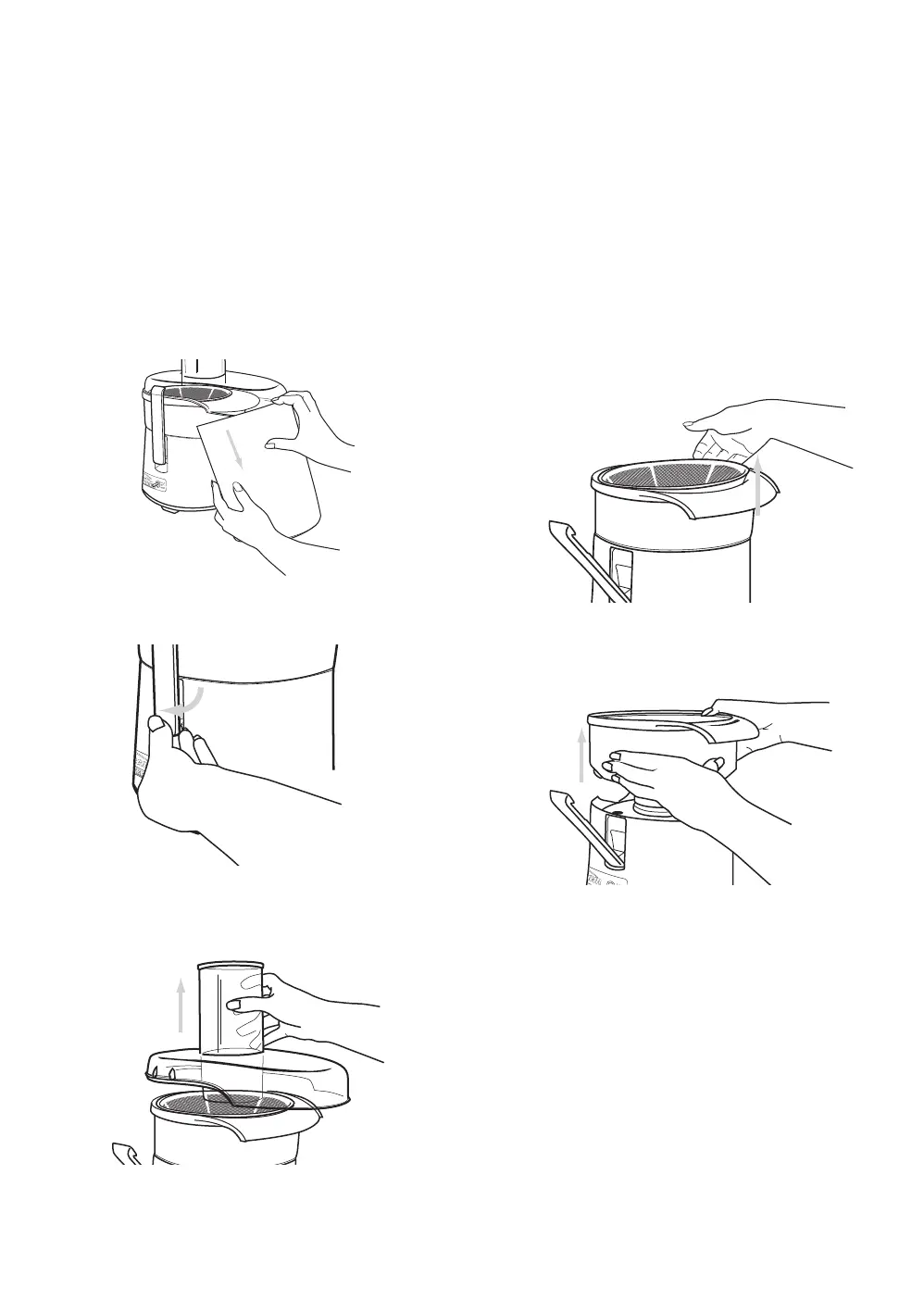

1. Turn the power ‘Off’ at the power outlet and unplug
the cord.
2. Slightly tilt the pulp container and slide away from
the juicer – figure 8.
3. Place fingers under the bottom of the twin-locking
handles and lift to release – figure 9.
4. Lift the juicer cover from the juice
collector/bowl – figure 10.
5. Place fingers under the rim of the stainless steel
blade and filtering basket and lift out – figure 11.
Important: Juicing blades are very sharp, handle
juicing filter basket with care when removing,
replacing and cleaning.
6. Lift the juice collector/bowl from the
motor base – figure 12.
Disassembling your Café Series
™
Juice
Extractor
Figure 8
Figure 9
Figure 10
Figure 11
Figure 12
