Sunbeam Cafe Series - Assembling your Café Series Juice Extractor; Before Use

7
Assembling your Café Series
™
Juice
Extractor
Before Use
After unpacking your juicer, we recommend that you
dissemble the unit before using for the first time. Wash
all parts except the motor base in hot soapy water.
Rinse and dry immediately.
Important: Always ensure your juicer is unplugged from
the power outlet when not in use, during assembling or
whilst removing parts.

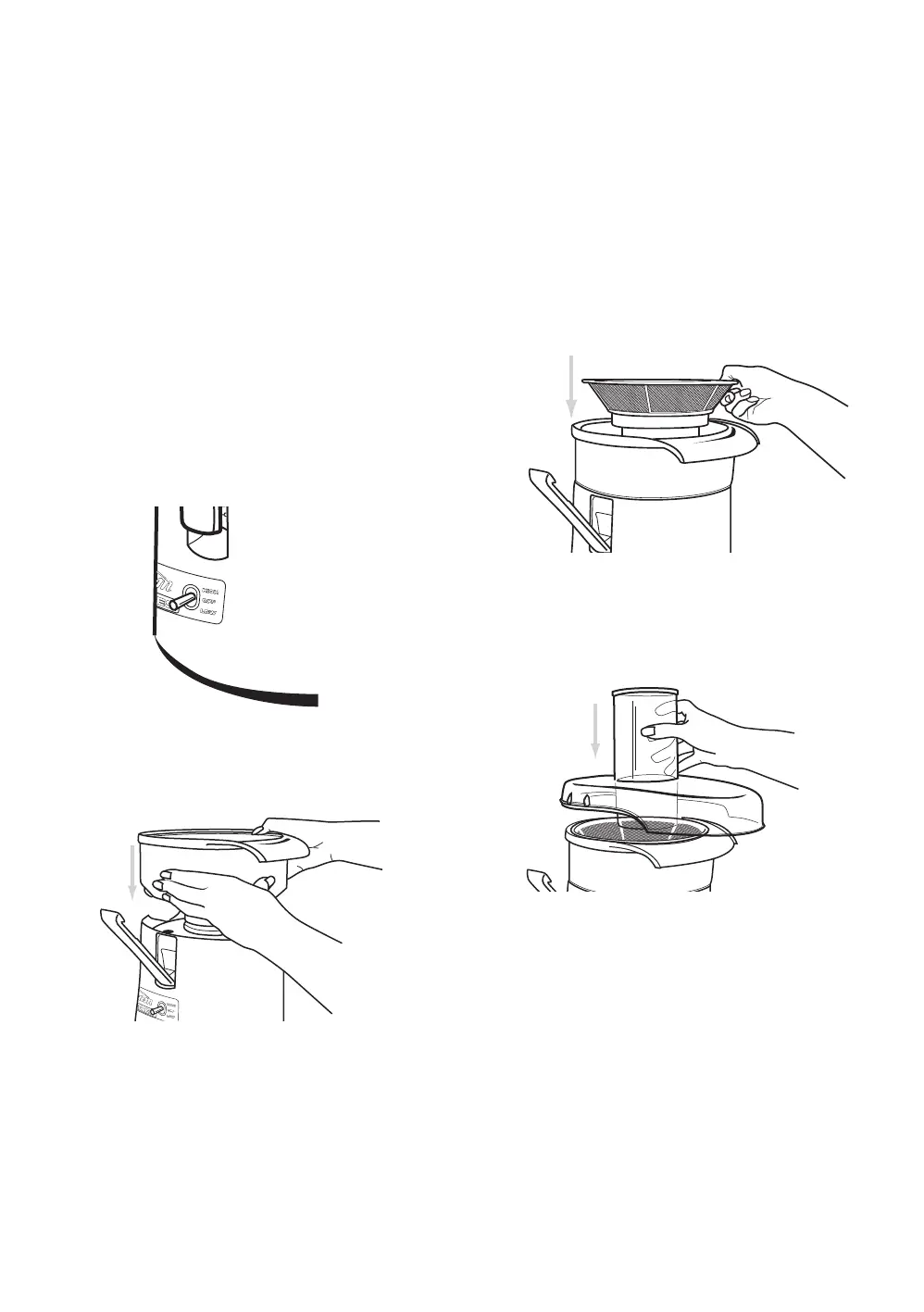

1. Set the motor base on a dry, level surface. For
convenience when juicing, have the control switch
facing you – figure 1.
2. Place the juice collector/bowl onto the top of the
motor base – figure 2.
3. Position the stainless steel blade and filtering basket
onto the motor drive shaft and push down until firmly
in place – figure 3.
4. Place the juicer cover onto the juice collector/bowl,
with the feed chute positioned over the stainless steel
blade and filtering basket and push into position
– figure 4.
Figure 2
Figure 3
Figure 4
Figure 1
