Sunbeam FA8900 - Connecting The Base; Attaching Body to Base

7
Assembling Your Pedestal Fan (continued)

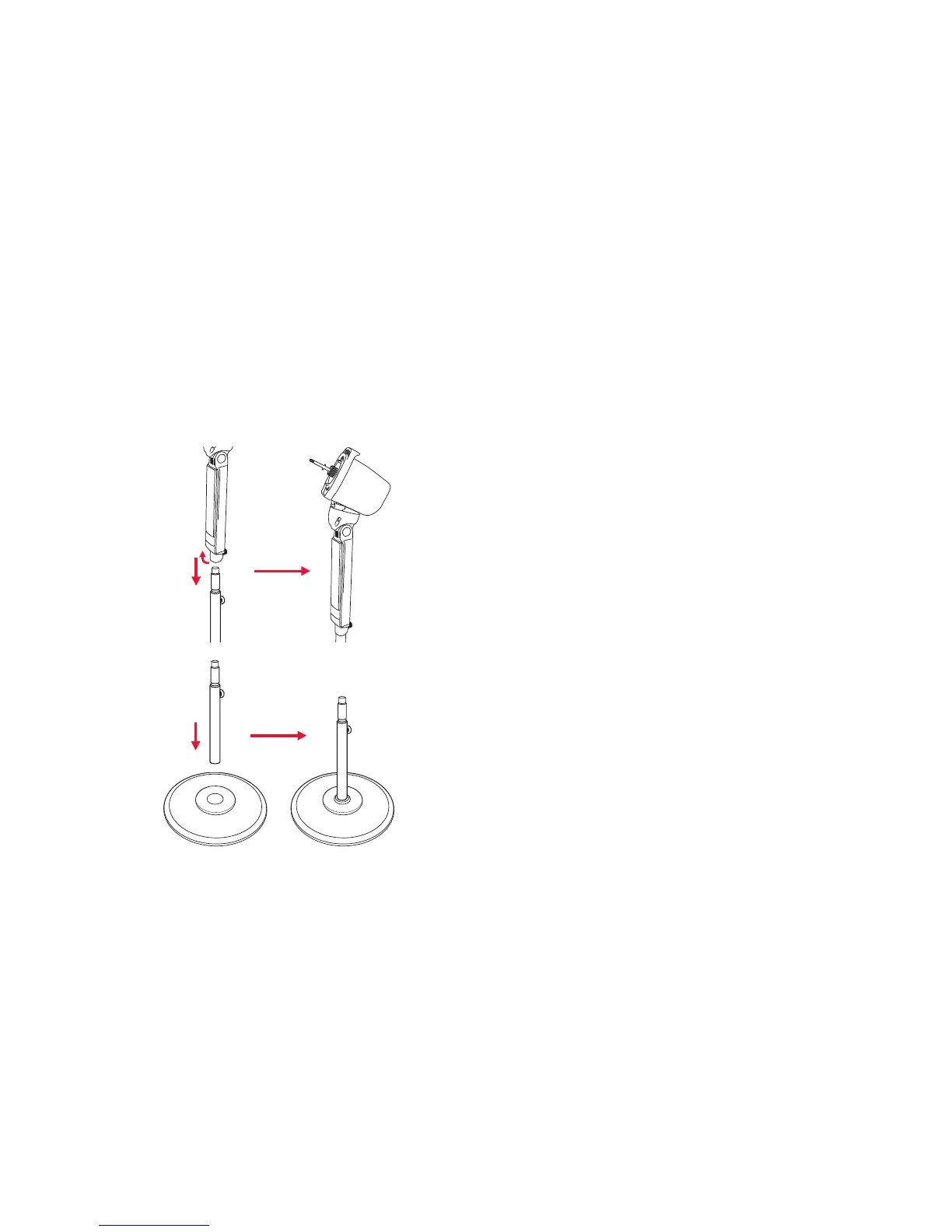

Connecting The Base
1.Locatethemouldedsecuringknob.
2.Insertthelowerextensionshaftfirmlyinto
thebaseandattachthemouldedsecuring
knobtotheundersideofthebaseand
tighten.(ReferFigure1).
Attaching the body and base
1.Removethescrewfromtheupperfan
shaft.Placetooneside.
2.Inserttheupperfanshaftontothelower
extensionshaftandinsertthescrewand
firmlytighten.Ensurethestandbodyis
completelyinterlockedwiththebase.
 (ReferFigure2).
Figure1
Figure2
