Sunbeam FA8900 - Pedestal Fan Assembly

6
1.Unpackallthecomponentsfromthebox.
2.Unfastentheinterlockingnutandblade
knobfromthefrontofthemotor
(SeeFigure2)andplacetooneside.

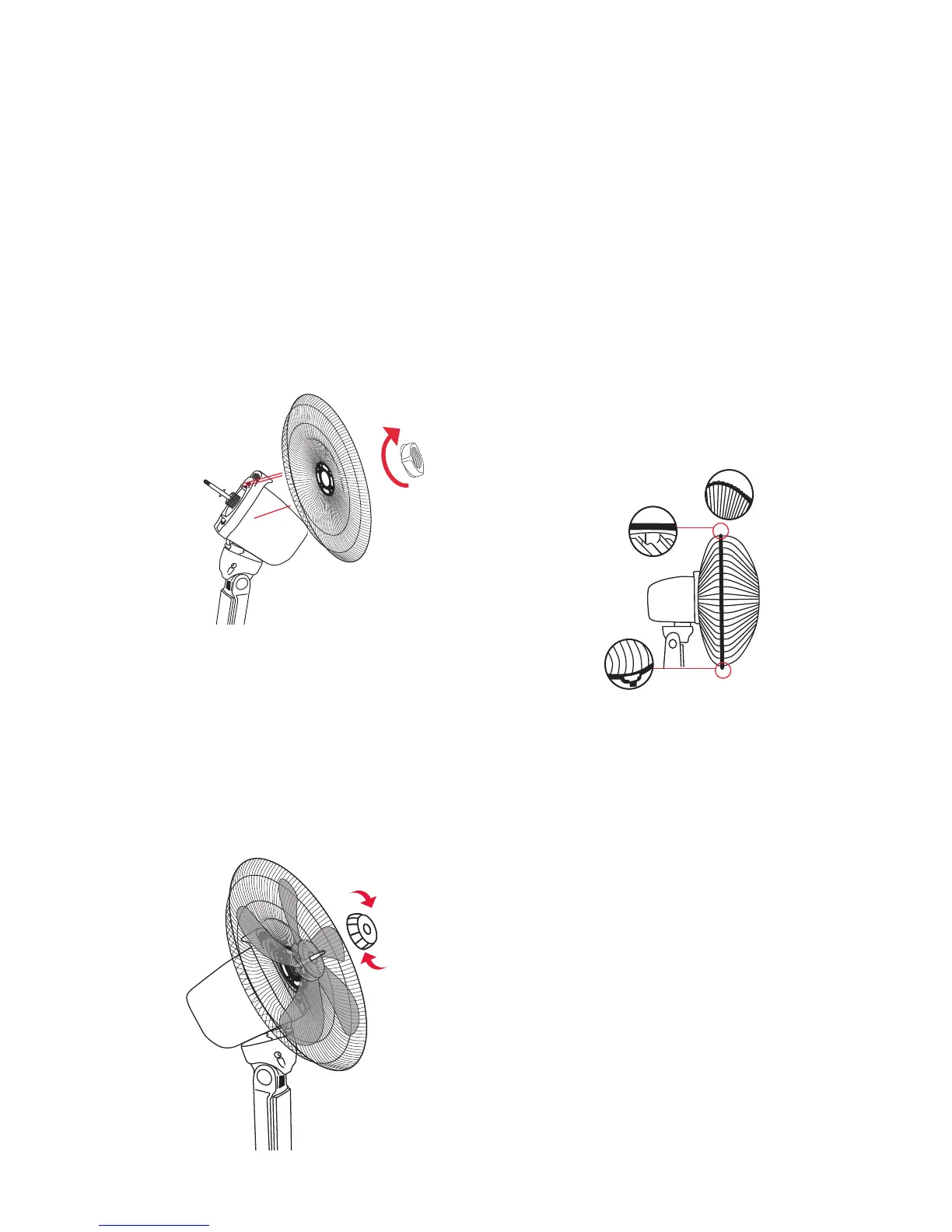

3.Attachtherearfanbladegrillandensureit
isinthecorrectorientationwiththe“UP”
andthetwoholesalignedatthetop
(SeeFigure1).Firmlyscrewonthe
interlockingnut.
4.Mountthefanbladeontothemotorshaft;
andfastenthebladeknobfirmlybyturning
inananti-clockwisedirection.
SeeFigure2.
5.Openthefrontguardclipandattachthe
fanbladegrillwiththe“UP”word(which
appearsontheinsideofthegrill),the
Sunbeamlogoshouldbestraight.Pushthe
roundedgesofthegrillfirmlytogetherwith
thebackgrillandlocktheclip.Usinga
Phillipsheadscrewdriver,tightenthescrew
provided.SeeFigure3.
Assembling Your Pedestal Fan
Figure1
Figure2
Figure3
