Assembling your juicer
Before Use
After unpacking your juicer, we recommend
that you dissemble the unit before using
for the first time. Wash all parts except the
motor base in hot soapy water. Rinse and dry
immediately.
Important: Always ensure your juicer is
unplugged from the power outlet when not
in use, during assembling or whilst removing
parts.

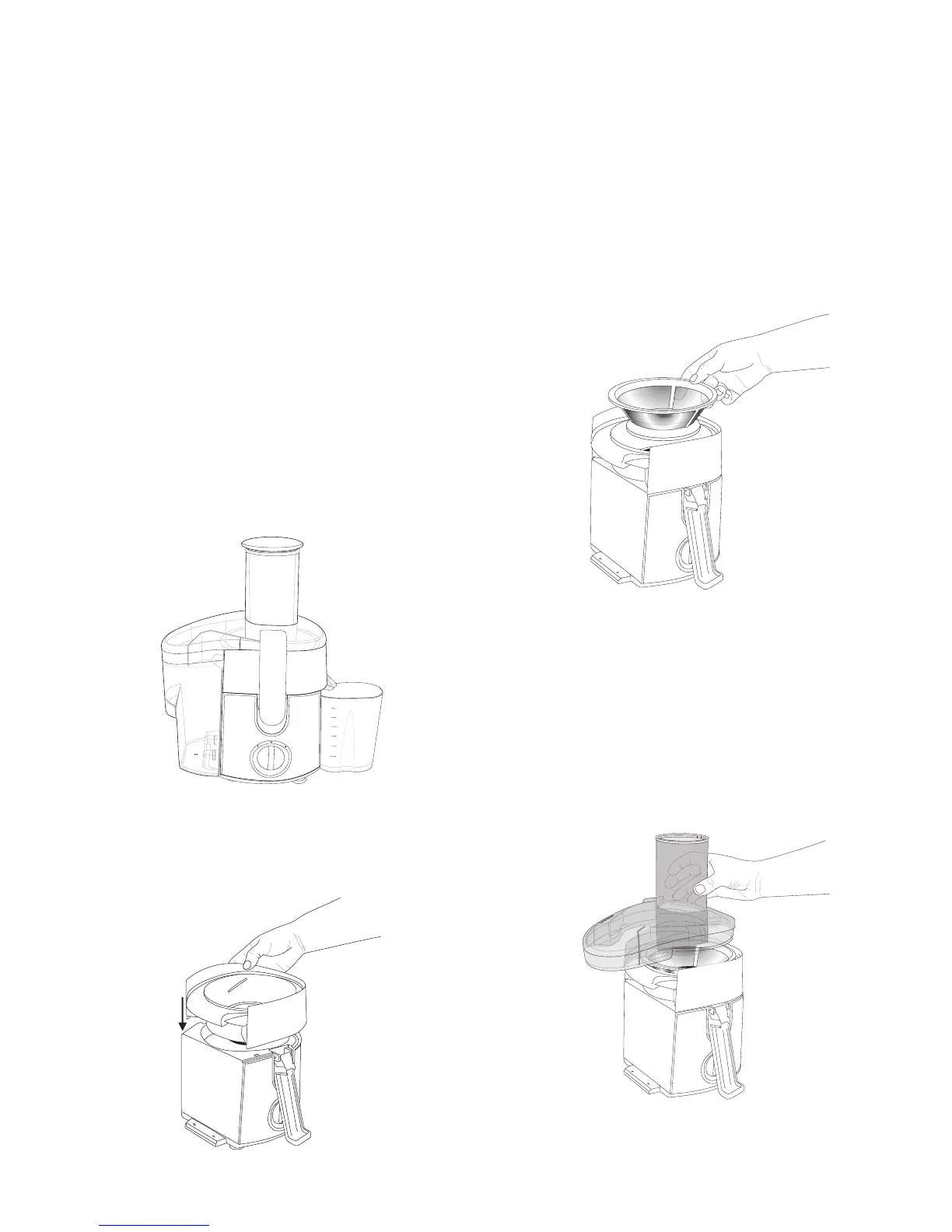

1. Set the motor base on a dry, level surface.
For convenience when juicing, have the
control switch facing you – figure 1.
2. Place the juice collector / bowl onto the
top of the motor base – figure 2.
3. Position the stainless steel blade and
filtering basket onto the motor drive shaft
and push down until firmly in place.
– figure 3.
4. Place the juicer cover onto the juice
collector / bowl, with the feed chute
positioned over the stainless steel blade
and filtering basket and push into position
– figure 4.
Figure 3
Figure 4
Figure 1
Figure 2
7
MAX
MIN
600ml
500
400
300
200
100
