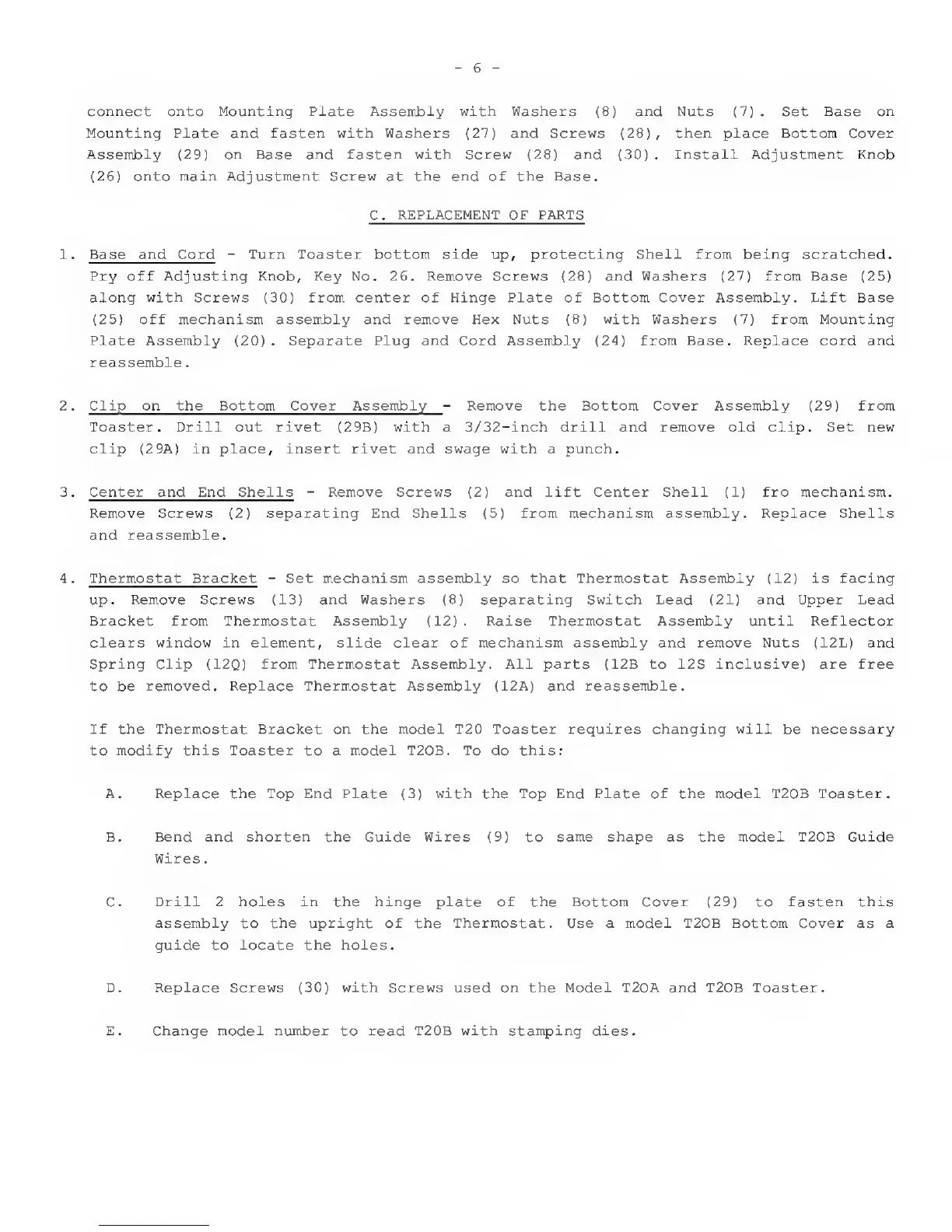

connect onto Mounting Plate Assembly with Washers (8) and Nuts (7). Set Base on
Mounting Plate and fasten with Washers (27) and Screws
(28),
then place Bottom Cover
Assembly
(29)
on Base and fasten with Screw
(28)
and
(30).
Install Adjustment Knob
(26)
onto main Adjustment Screw at the end of the Base.
C. REPLACEMENT OF PARTS
1. Base and Cord
-
Turn Toaster bottom side up, protecting Shell from being scratched.
Pry off Adjusting Knob, Key No. 26. Remove Screws
(28)
and Washers
(27)
from Base
(25)
along with Screws
(30)
from center of Hinge Plate of Bottom Cover Assembly. Lift Base
(25)
off mechanism assembly and remove Hex Nuts
(8)
with Washers
(7)
from Mounting
Plate Assembly
(20).
Separate Plug and Cord Assembly
(24)
from Base. Replace cord and
reassemble
.
2. Clip on the Bottom Cover Assembly
-
Remove the Bottom Cover Assembly
(29)
from
Toaster. Drill
out
rivet (29B) with
a
3/32-inch drill and remove old clip.
Set
new
clip (29A) in place, insert rivet and swage with
a
punch.
3. Center and End Shells
-
Remove Screws
(2)
and lift Center Shell
(1)
fro mechanism.
Remove Screws
(2)
separating End Shells
(5)
from mechanism assembly. Replace Shells
and reassemble.
4. Thermostat Bracket
-
Set
mechanism assembly
so
that Thermostat Assembly
(12)
is facing
up.
Remove Screws
(13)
and Washers
(8)
separating Switch Lead
(21)
and Upper Lead
Bracket from Thermostat Assembly
(12).
Raise Thermostat Assembly until Reflector
clears window in element, slide clear of mechanism assembly and remove Nuts (12L) and
Spring Clip
(12Q)
from Thermostat Assembly. All parts (12B
to 12S
inclusive) are free
to be
removed. Replace Thermostat Assembly (12A) and reassemble.
If the Thermostat Bracket on the model
T20
Toaster requires changing
will be
necessary
to
modify this Toaster
to a
model T20B. To
do
this:
A. Replace the Top
End Plate
(3)
with the Top End Plate of the model T20B Toaster.
B. Bend and shorten the Guide Wires
(9)
to same shape as
the model T20B Guide
Wires
.
C. Drill 2 holes
in the hinge
plate of the Bottom
Cover
(29)
to
fasten
this
assembly to the upright of the Thermostat. Use a model T20B Bottom
Cover
as a
guide to locate the holes.
D. Replace Screws (30)
with
Screws used on the Model T20A and T20B Toaster.
E. Change model number to read T20B with stamping dies.
