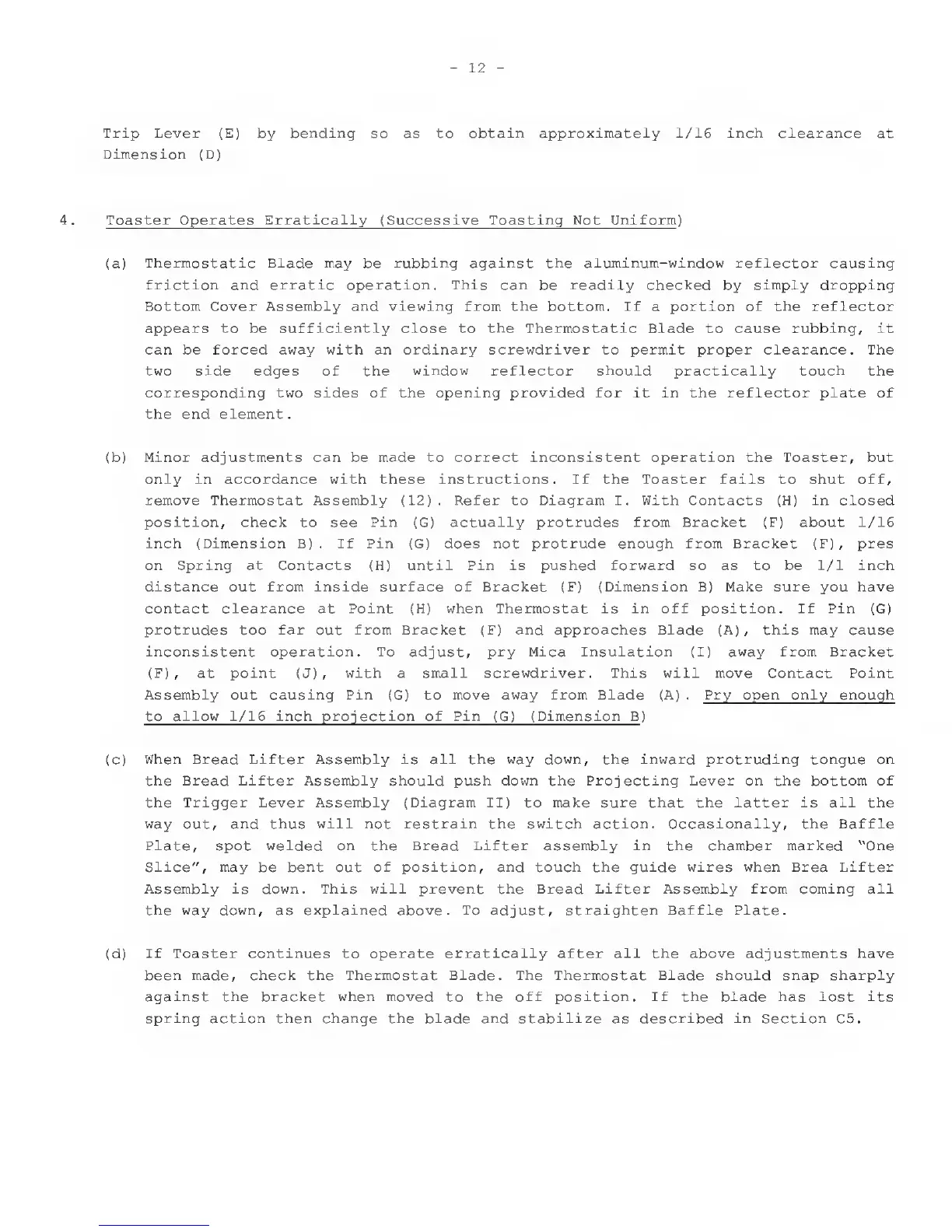

Trip Lever (E) by bending so as to obtain approximately 1/16 inch clearance at
Dimension (D)
4 . Toaster Operates Erratically (Successive Toasting Not Uniform
)
(a) Thermostatic Blade may be rubbing against the aluminum-window reflector causing
friction and erratic operation. This can be readily checked by simply dropping
Bottom Cover Assembly and viewing from the bottom. If
a
portion of the reflector
appears
to
be sufficiently close
to
the Thermostatic Blade
to cause
rubbing, it
can be forced away with an ordinary screwdriver
to
permit proper clearance. The
two side
edges
of the window reflector should practically touch the
corresponding two sides of the opening provided for it in the reflector plate of
the end element.
(b)
Minor adjustments can
be
made
to
correct inconsistent operation the Toaster,
but
only in accordance with these instructions. If the Toaster fails
to
shut off,
remove Thermostat Assembly
(12).
Refer
to
Diagram I. With Contacts (H) in closed
position, check
to see
Pin
(G)
actually protrudes from Bracket (F)
about
1/16
inch (Dimension B)
.
If Pin
(G) does
not protrude enough from Bracket (F), pres
on Spring
at
Contacts (H) until Pin is pushed forward
so as to be
1/1 inch
distance
out from
inside surface of Bracket (F) (Dimension B) Make sure
you
have
contact clearance
at
Point (H) when Thermostat is in off position. If Pin
(G)
protrudes
too
far
out
from Bracket (F) and approaches Blade (A), this may
cause
inconsistent operation. To
adjust,
pry Mica Insulation (I) away from Bracket
(F)
,
at
point
(J)
,
with
a
small screwdriver. This will move Contact Point
Assembly
out
causing Pin
(G) to
move away from Blade (A)
.
Pry open only enough
to
allow 1/16 inch projection of Pin
(G)
(Dimension B
)
(c)
When Bread
Lifter Assembly is all
the way down, the inward
protruding
tongue on
the Bread Lifter Assembly should push down the
Projecting
Lever on the bottom of
the Trigger
Lever Assembly (Diagram II)
to
make sure that the latter is all
the
way
out,
and thus will not
restrain the
switch action.
Occasionally,
the Baffle
Plate, spot
welded on the Bread
Lifter
assembly
in
the chamber marked "One
Slice",
may
be
bent
out of position, and touch the guide
wires when
Brea Lifter
Assembly
is
down. This will
prevent the Bread Lifter Assembly from coming all
the
way down,
as
explained above.
To adjust, straighten Baffle Plate.
(d) If Toaster continues to operate erratically after all the
above
adjustments have
been made, check the Thermostat Blade. The Thermostat Blade should snap sharply
against the bracket
when moved
to the off position. If the blade has lost its
spring action then change the blade and stabilize as described in Section C5.
