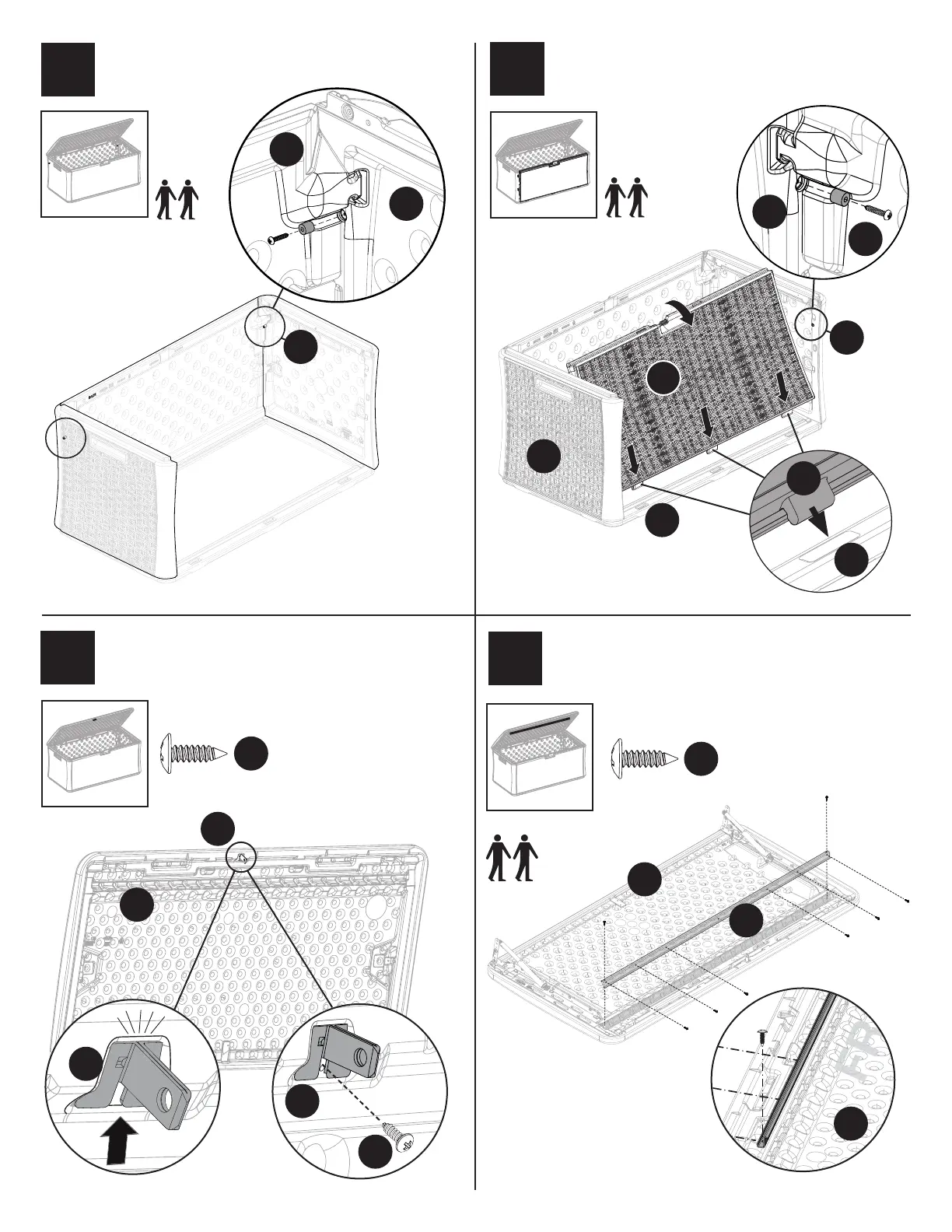

At an angle, insert the three hooks on (D) into (A). Rotate (D) upright to
lock the hooks.
Repeat step 3 to connect (D) to both B's.
6
Insert Spacer (BB) on right side. Attach using one screw (CC).
Repeat step 5 to opposite side.
5
BACK
SIDE
C
B
BB
BB
D
B
A
B
D
D
A
x1
slide
7
Slide Lock Hasp Bracket (I) into channel on lid and push up toward front of
(E) until you hear a "Snap". Fasten with one screw (AA).
AA
AA
E
I
I
I
Place (F) in channel on (E). Attach through pre-drilled holes on each end with
two screws (AA). Attach rest from outside toward center using six screws (AA).
There are no pre drilled holes on the lid. Use force when starting to drive
self taping screws. Once the screw pierces the plastic, it will drive easier.
Note: Two holes on each side of center screw will not be used.
x8
8
Do not use center hole on (F).
F
E
AA
F
